8-Port Gigabit (PoE+) Ethernet Smart Managed Pro Switch with (2 SFP or 2 Copper Ports and)
Cloud Management
Configure Quality of Service User Manual286
For information about the credentials, see Credentials for the local browser interface on
page 32.
5. Click the Login button.
The System Information page displays.
6. Select QoS > DiffServ >
Advanced > Policy Configuration.

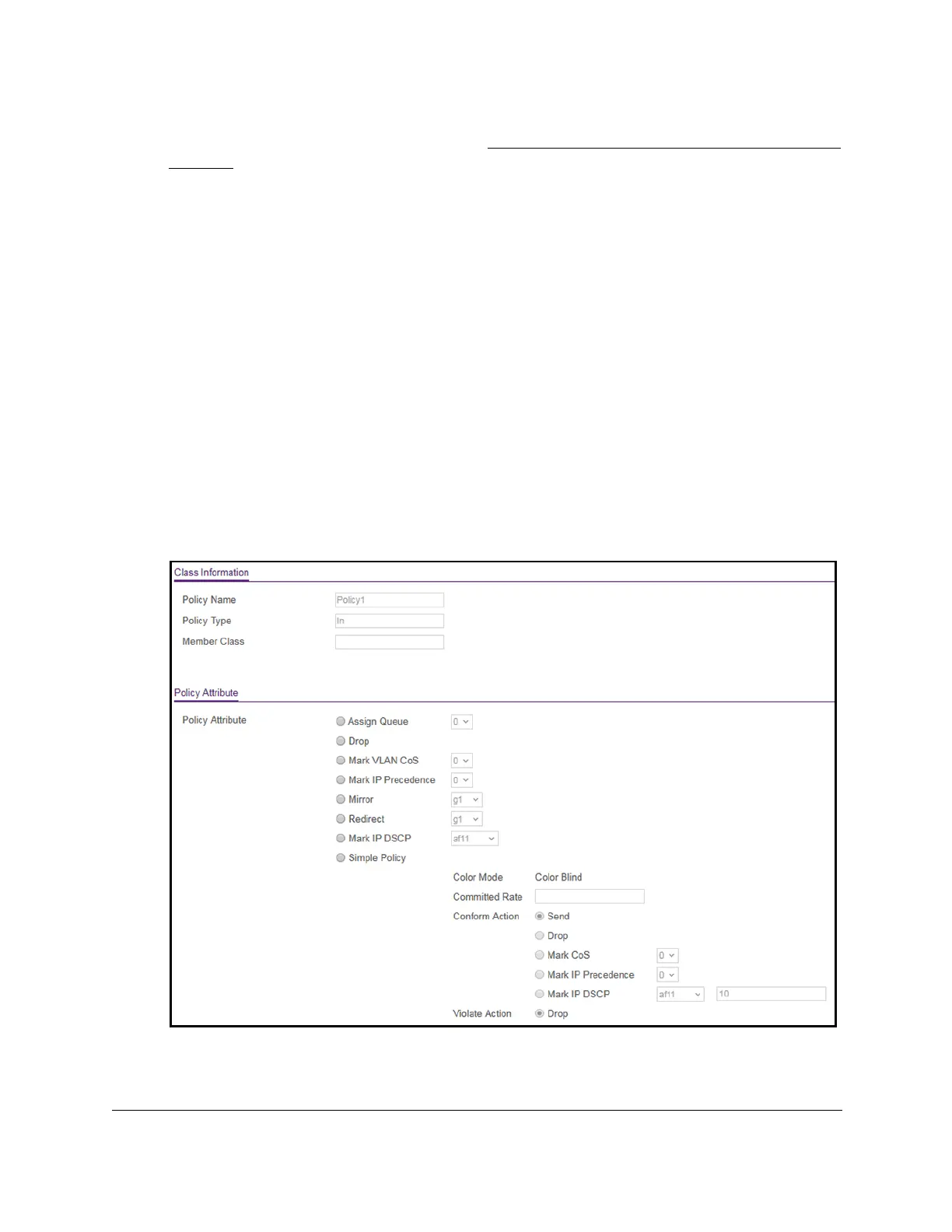

The Policy Configuration page displays.
7. Enter a policy name in the Policy Name field.
You cannot specify the policy type. By default, the policy type is In, indicating that the
policy applies to ingress packets.
8. From the Member Class menu, select an existing class that you want to associate with the
new policy
.
9. Click the Add button.
The new policy is added.
10. After creating the policy
, click the policy name.
The policy name is a hyperlink to the page on which you can define the policy attributes.
