xDSL Module for the UTM9S
519
ProSecure Unified Threat Management (UTM) Appliance
then a new FTP session could start on the WAN1 interface, and then any new
connection to the Internet could be made on the WAN2 interface. This
load-balancing method ensures that a single interface does not carry a
disproportionate distribution of sessions.
3. Click Apply to save your settings.
Configure Protocol Binding (Optional)
 To configure protocol binding and add protocol binding rules:

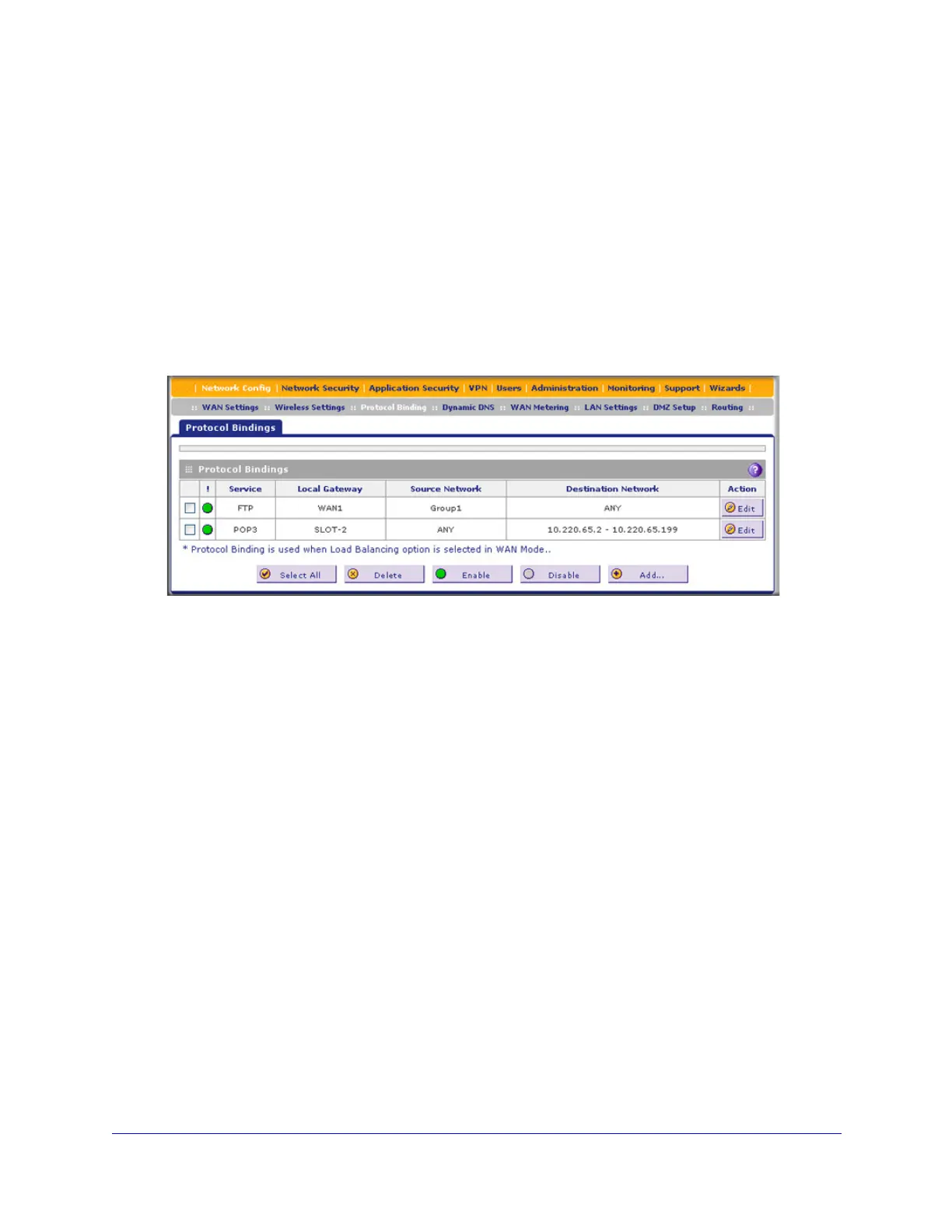

1. Select Network Config > Protocol Binding. The Protocol Bindings screen displays.
(The following figure shows two examples in the Protocol Bindings table.)
Figure 307.
The Protocol Bindings table displays the following fields:
• Check box. Allows you to select the protocol binding rule in the table.
• Status icon. Indicates the status of the protocol binding rule:
- Green circle. The protocol binding rule is enabled.
- Gray circle. The protocol binding rule is disabled.
• Service. The service or protocol for which the protocol binding rule is set up.
• Local Gateway. The WAN interface to which the service or protocol is bound.
• Source Network. The computers on your network that are affected by the protocol
binding rule.
• Destination Network. The Internet locations (based on their IP address) that are
covered by the protocol binding rule.
• Action. The Edit button provides access to the Edit Protocol Binding screen for the
corresponding service.
2. Click the Add table button below the Protocol Bindings table. The Add Protocol Binding
screen displays:
