Programming Devices Section 3-6
Applicable Connectors CPU Unit Connector
Personal Computer Connector
Recommended Cables Fujikura Ltd.: UL2464 AWG28
× 5P IFS-RVV-SB (UL product)
AWG 28
× 5P IFVV-SB (non-UL product)
Hitachi Cable, Ltd.: UL2464-SB(MA) 5P × 28AWG (7/0.127) (UL product)
CO-MA-VV-SB 5P
× 28AWG (7/0.127) (non-UL product)
Item Model number Specifications
Socket XM2A-0901 9-pin male Used together
(One of each
provided with CPU
Unit.)
Hood XM2S-0911-E 9-pin, millimeter
screws
Item Model number Specifications
Socket XM2D-0901 9-pin female Used together
Hood XM2S-0913 9-pin, inch screws

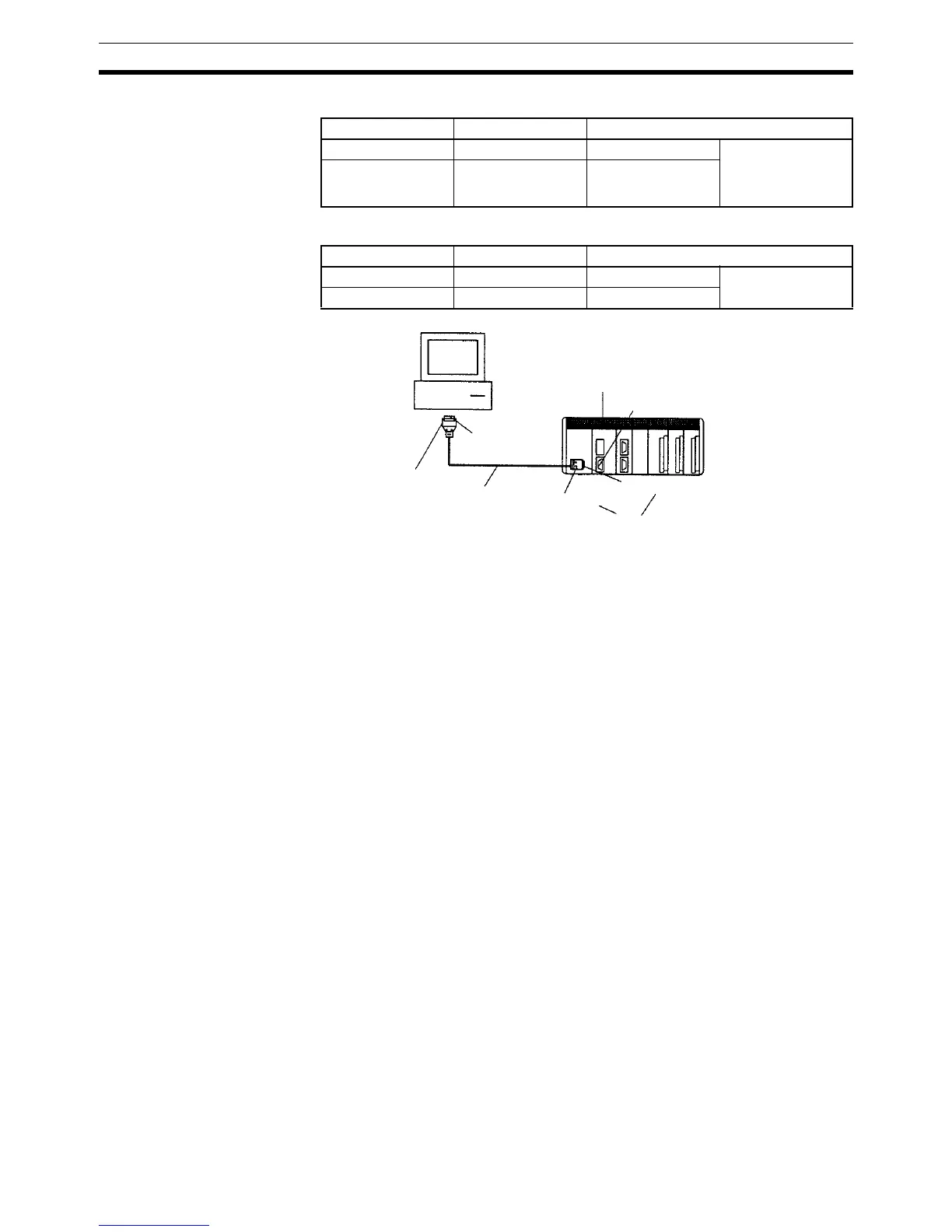

IBM PC/AT or compatible
(9-pin male connector)
Hood: XM2S-0913
Socket: XM2D-0901
(9-pin female)
Recommended cable
Hood: XM2S-0911-E
Socket: XM2A-0901 (9-pin male)
Provided with CPU Unit
CQM1H CPU Unit
RS-232C port

Omron CQM1H - 08-2005 Specifications

General

Category	Programmable Logic Controller (PLC)
Manufacturer	Omron
Program Capacity	3.2K steps
Model	CQM1H
I/O Points	512 points max
