Omron CQM1H - 08-2005 User Manual

107
Mounting Dimensions Section 4-3

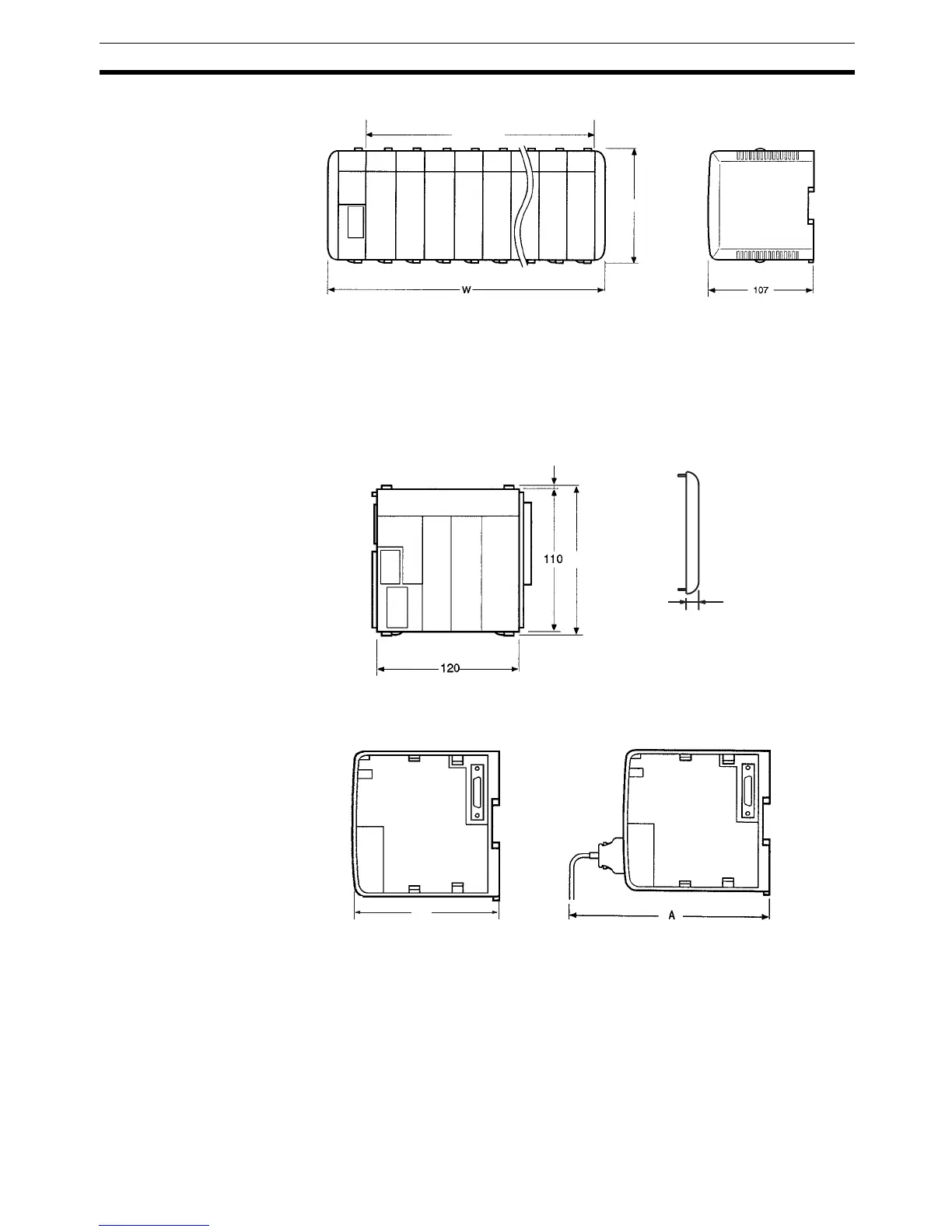

External Dimensions for
Expansion I/O Block
n = No. of I/O Units + No. of Dedicated I/O Units.
W = 32
× n + 60.2 (1 ≤ n ≤ 11)
CPU Unit The following diagrams show the dimensions of the CPU Unit and End Cover,
which covers the Unit at the far right side of the PC. The End Cover is pro-
vided with the CPU Unit. All dimensions are in millimeters.
Note The depth is the same for all Units.
"n" Units
117.5
CPU Unit Front View End Cover Front View
13.5
117.5
3
107
CPU Unit Side View
CPU Unit Connected to Programming Device
A: Peripheral port: Approx. 160 mm
RS-232C port: Approx. 160 mm

Omron CQM1H - 08-2005 Specifications

General

Category	Programmable Logic Controller (PLC)
Manufacturer	Omron
Program Capacity	3.2K steps
Model	CQM1H
I/O Points	512 points max
