108
Mounting Dimensions Section 4-3
Note The depth is the same for all Units.

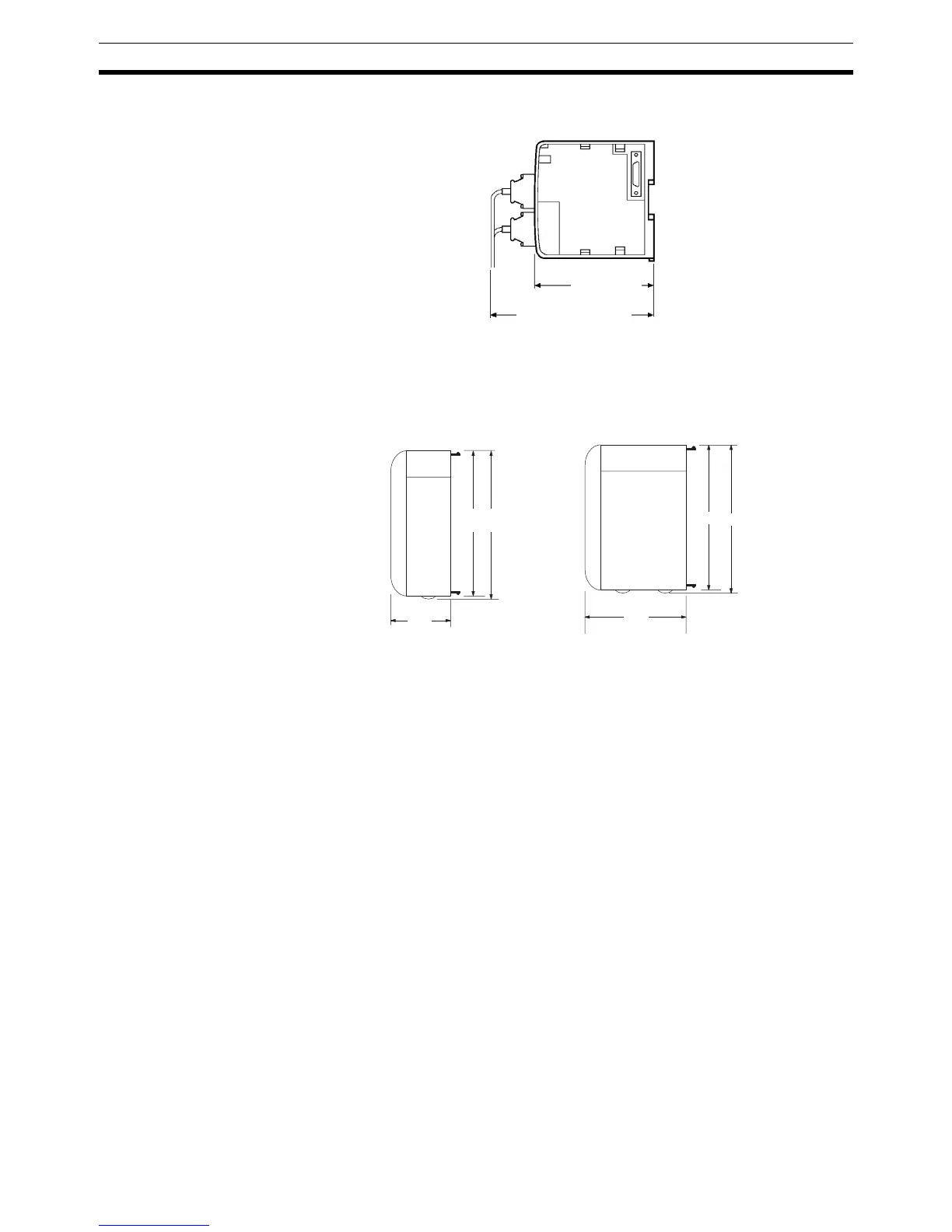

Power Supply Units The following diagrams show the dimensions of the Power Supply Units. All
dimensions are in millimeters.
107 mm
Approx. 180 mm
CPU Unit with Inner Board Connectors Connected
CQM1-PA203 CQM1-PA206/PA216/PD026
53.5
85.5
110 114.5
110
114.5
