109
Mounting Dimensions Section 4-3
Units for Expansion I/O
Blocks

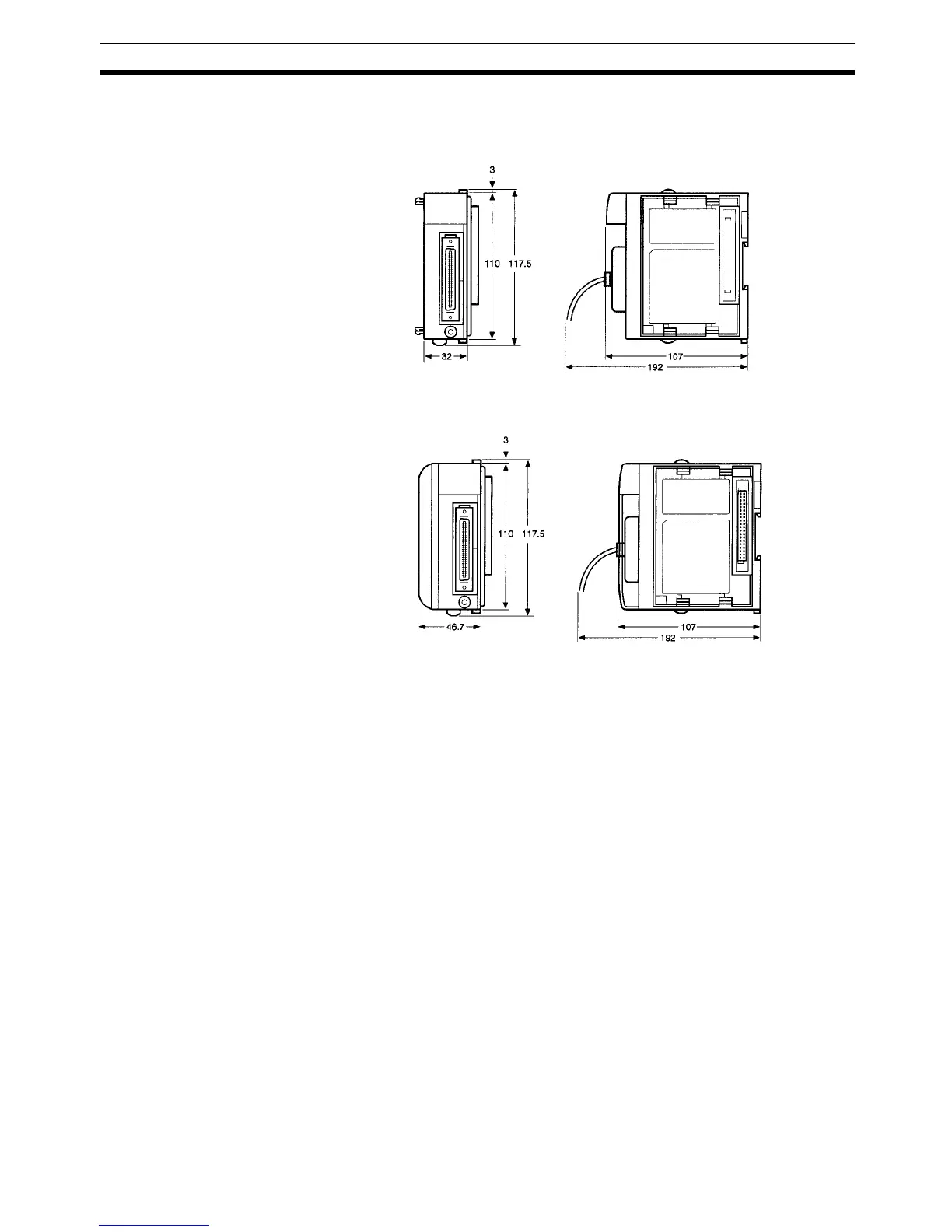

The following diagrams show the dimensions of the I/O Control Unit and I/O
Interface Unit. All dimensions are in millimeters.
I/O Control Unit
I/O Interface Unit
