Controlling/Outputting in Parallel
FQ-CR2 User’s Manual
101
8
Communications with External Devices
• I/O Signal Allocations

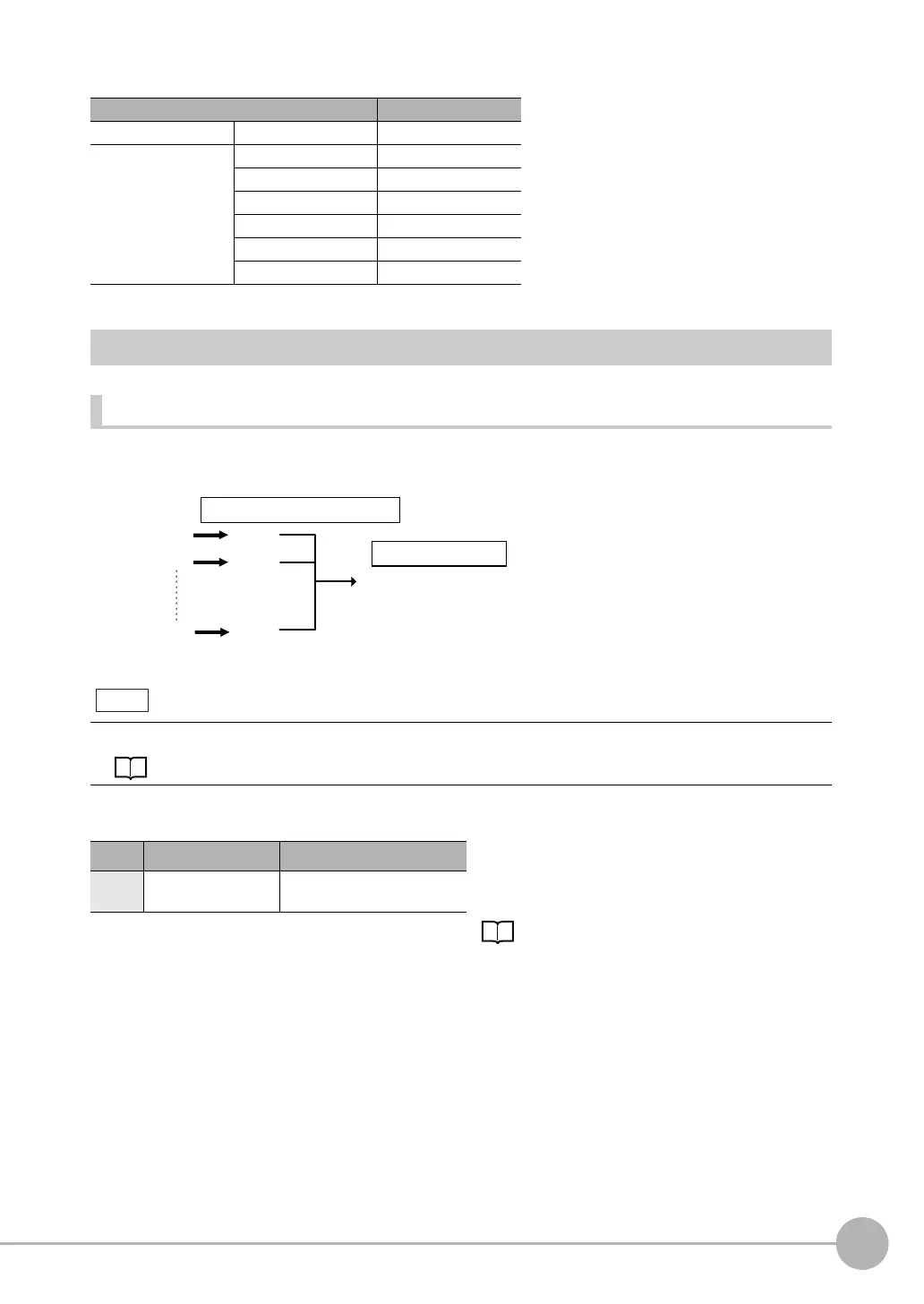

Setting the Outputs
Using the Overall Judgement Result
When the results of the inspection items are judged, if even one individual judgement result is NG, the OR
output signal is turned ON.
Wiring
Signal Address
Output signals OUT1 (BUSY signal) CIO 0.01
Input signals IN0 CIO 1.08
IN1 CIO 1.09
IN2 CIO 1.10
IN3 CIO 1.11
IN4 CIO 1.12
IN5 CIO 1.15
The overall judgement result output signal can also be turned ON when all individual judgement results are OK.
Changing the judgement output ON condition: p. 106
Color Signal Description
The signals shown at the left are used.
Refer to the following information for signal wiring.
Black OUT0 (OR) Overall judgement (default
assignment)
2-4 Wiring: p. 26
OK
NG
OK
Inspection
item 31
If there is even one NG judgement,
the overall judgement will be NG
and the output will be turned ON.
NG (OR signal ON)
Inspection
item 1
Overall judgement
Inspection
item 0
Individual judgement results
Note
