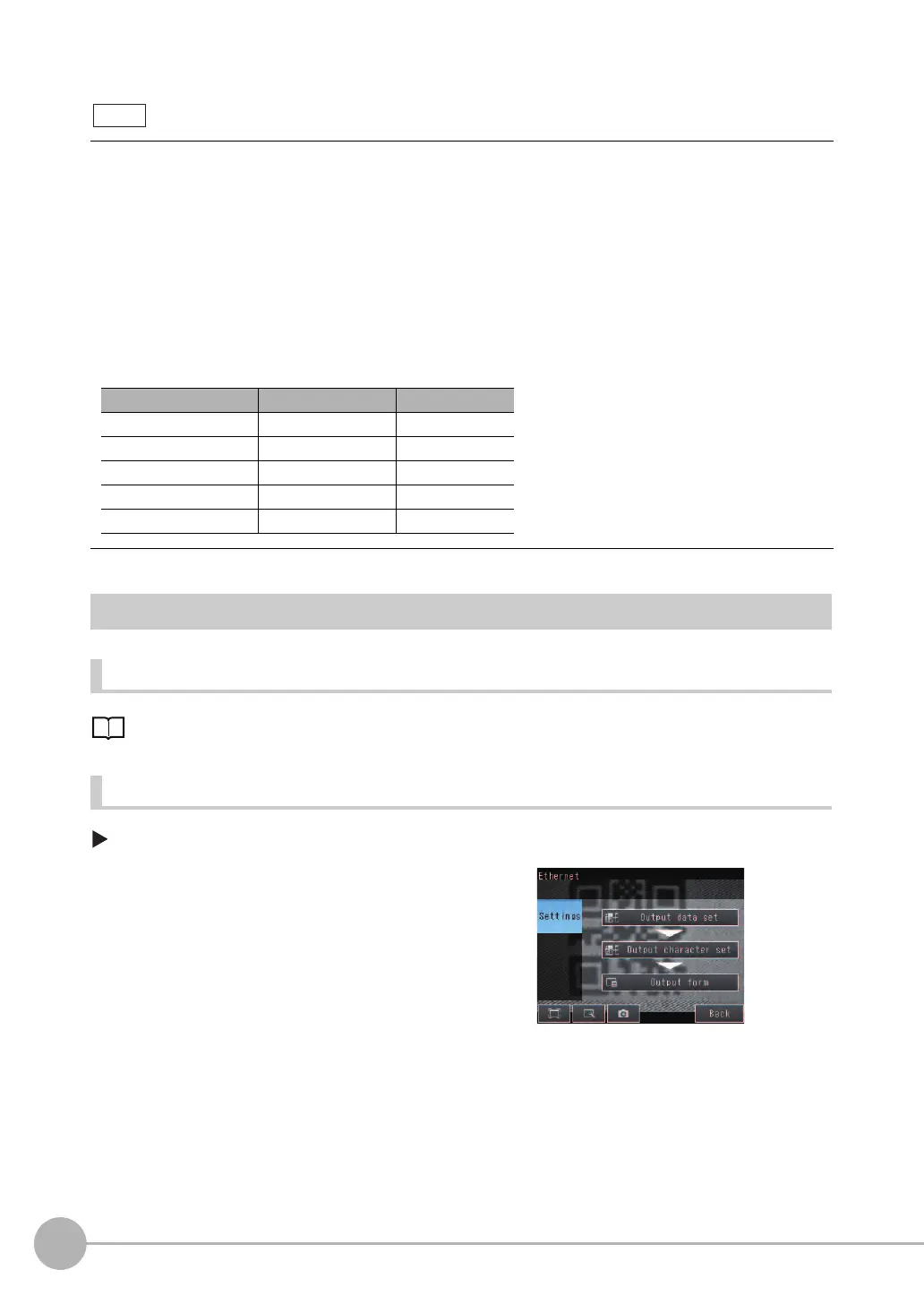

Outputting/Controlling with Ethernet
122
FQ-CR2 User’s Manual
Outputting Data to an External Device Using No-protocol Communications
Setting the Data To Output Automatically
Refer to Setting the Data to Output via Ethernet.
Setting the Data Format
[In/Out] − [I/O setting] − [Ethernet]
• When Output Format Is ASCII
Set the parameters for integer digits, decimal digits, negative numbers, 0 suppression, the field separator,
and the record separator.
• Output order
When scan results and data are output by Ethernet, data is output first followed by the scan result (text string).
Example - Scan result: ABC
When
[Data output] - [Data 0]: 0 (judgment OK)
[Data output] - [Data 2]: 100 (cell recognition rate)
output is in the following order:
0 (field separator) 100 (record separator) ABC (record separator) CR
• Code conversion
The following character codes are converted before output:
Character code Before conversion After conversion
Comma &h2c &h8540
Tab &h09 &h8541
Space &h20 &h8542
CR &h00 &h8543
LF &h0A &h8544
1 Press [Output form].
2 Set the output format to ASCII or binary.
3 Set the data format.
FQ Sensor User Manual.book 122 ページ ２０１１年７月８日 金曜日 午後２時３０分
To Next Page
