EMC-compatible Noise Filter (AX-FIJ-RE)

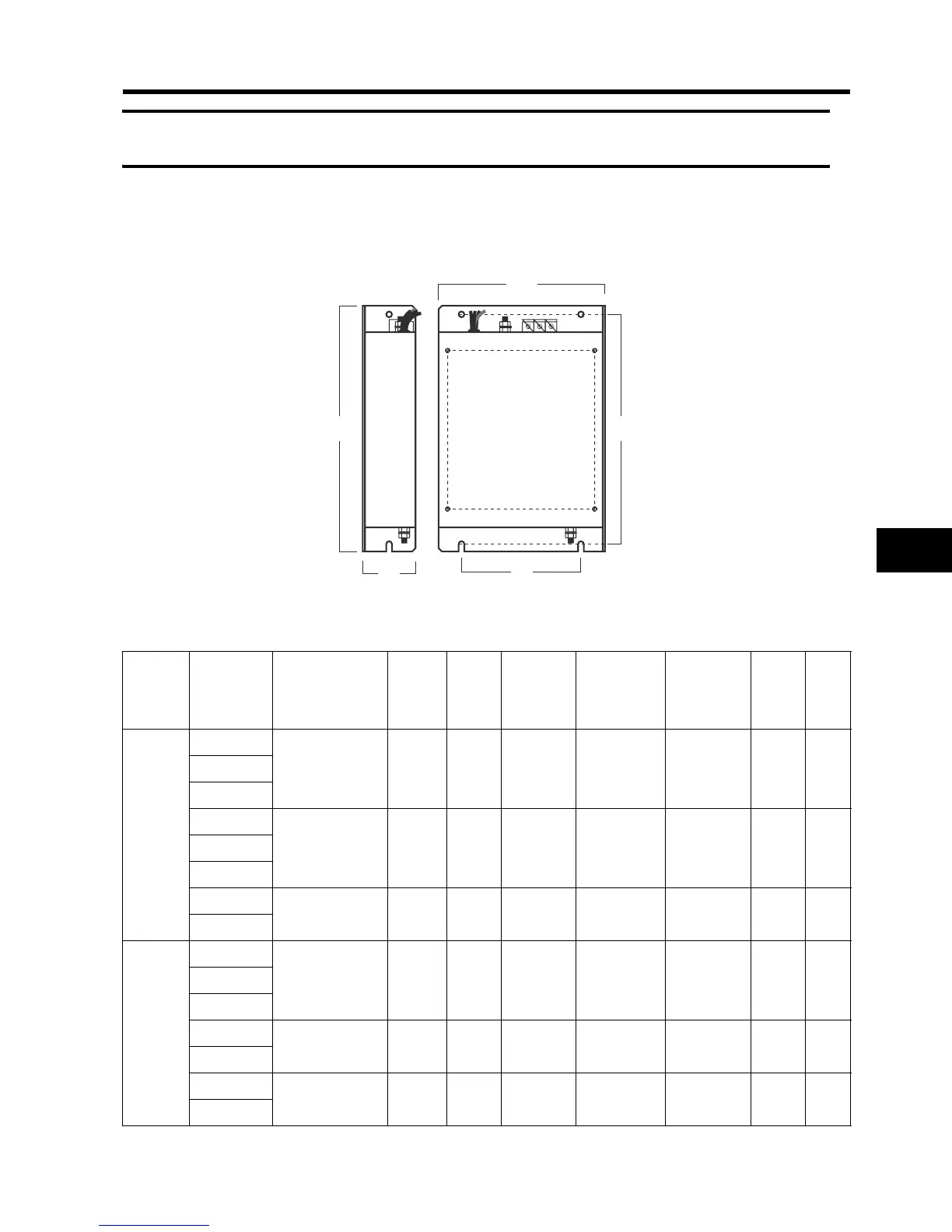

Dimensional Drawing
3Specifications
drive mounts
W
HY
XL
Power
supply
Applied
inverter
Filter
reference
Rated
current
Max.
Rated
Volt
Leakage
current
Nom/Max
External
dimensions
L x W x H
(mm)
Mount
dimensions
X x Y
(mm)
Fixing
W
(Kg)
3-phase
200VAC
JX-A2002
AX-FIJ2006-RE 6 250V -
193 x 81 x
50
183 x 57 M4 1JX-A2004
JX-A2007
JX-A2015
AX-FIJ2020-RE 20 250V -
226 x 112 x
47
216 x 88 M4 1.3JX-A2022
JX-A2037
JX-A2055
AX-FIJ2040-RE 40 250V -
289 x 182 x
55
279 x 150 M5 2.3
JX-A2075
3-phase
400VAC
JX-A4004
AX-FIJ3005-RE 5A 480V 0.3/40mA
226 x 112
x45
216 x 88 M4 0.9JX-A4007
JX-A4015
JX-A4022
AX-FIJ3011-RE 11A 480V 0.3/40mA
226 x 112 x
45
216 x 88 M4 1.1
JX-A4040
JX-A4055
AX-FIJ3020-RE 20A 480V 0.3/40mA
289 x 182 x
50
279 x 150 M5 1.7
JX-A4075

Omron JX Specifications

General

Enclosure Rating	IP20
Output Frequency	0 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS-485
Frequency Range	0.1 to 400 Hz
Power Rating	0.4 to 15 kW
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000 m above sea level
Output Voltage	3-phase 200 to 240 VAC, 3-phase 380 to 480 VAC
Cooling Method	Fan cooling
