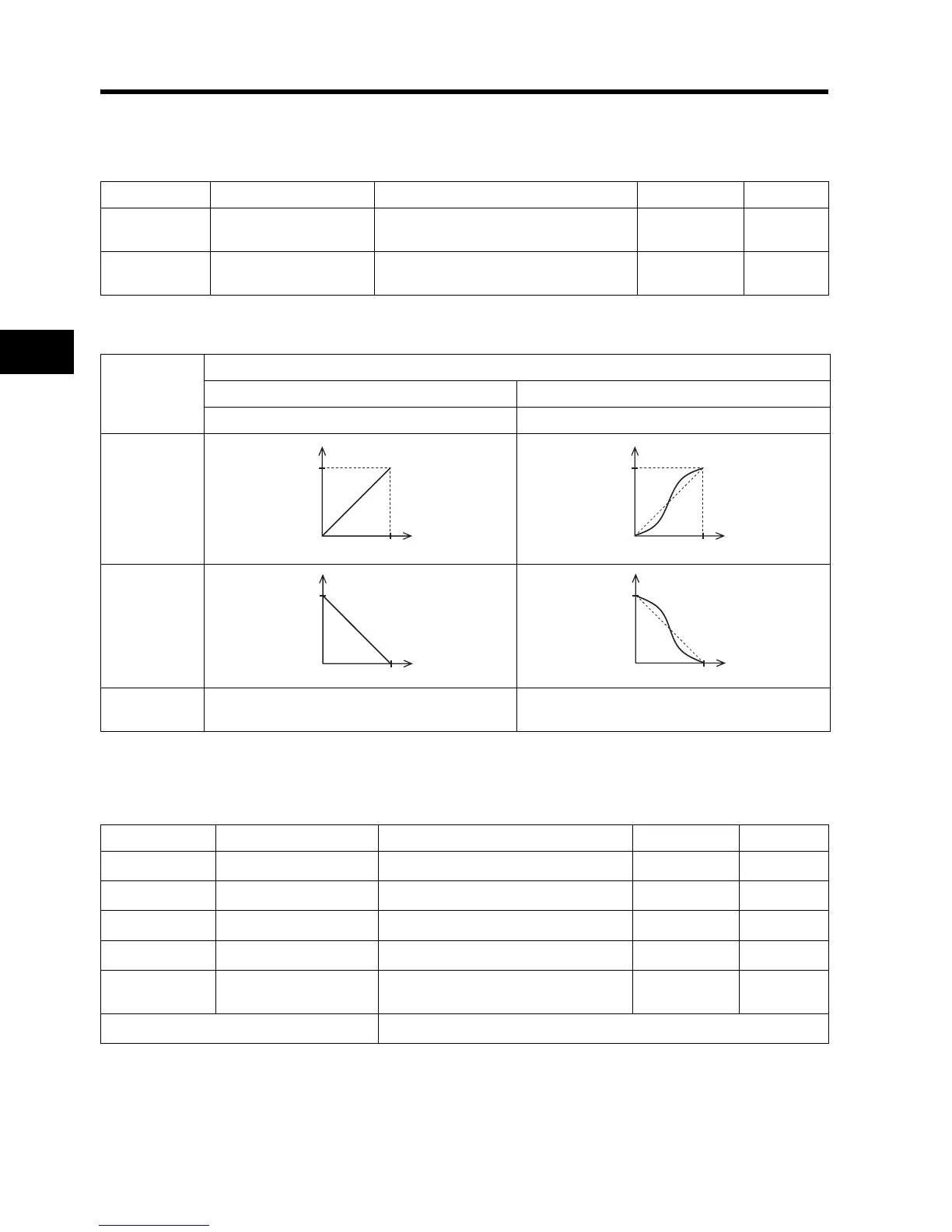

4-28
4-2 Function Mode
4
Functions
Acceleration/Deceleration Pattern
This function is used when smooth acceleration/deceleration is needed.
Acceleration/deceleration pattern can be set according to each system.
External Frequency Adjustment Function (OI)
For each item, refer to "External Frequency (Voltage/Current) Adjustment" (page 4-11).
Parameter No. Function name Data Default setting Unit
A097
Acceleration pattern
selection
00: Line
01: S-shape curve
00
A098
Deceleration pattern
selection
00: Line
01: S-shape curve
00
Parameter No.
Set value
00 01
Line S-shape curve
A097
(Acceleration)
A098
(Deceleration)
Description
Accelerates/Decelerates linearly before reaching
the set output frequency value.
Helps prevent the collapse of cargo on the
elevating machine or conveyor.
Output frequency
Time
Output frequency
Time
Output frequency
Time
Output frequency
Time
Parameter No. Function name Data Default setting Unit
A101 OI start frequency 0.00 to 400.0 0.0 Hz
A102 OI end frequency 0.00 to 400.0 0.0 Hz
A103 OI start ratio 0. to 100. 0. %
A104 OI end ratio 0. to 100. 100. %
A105 OI start selection
00: External start selection
01: 0 Hz
01
Related parameters A005, A011 to A015, A016, A151 to A155, AT input
