Omron JX User Manual

App-18
Appendix-2 Product Life Curve
Appendix-2 Product Life Curve

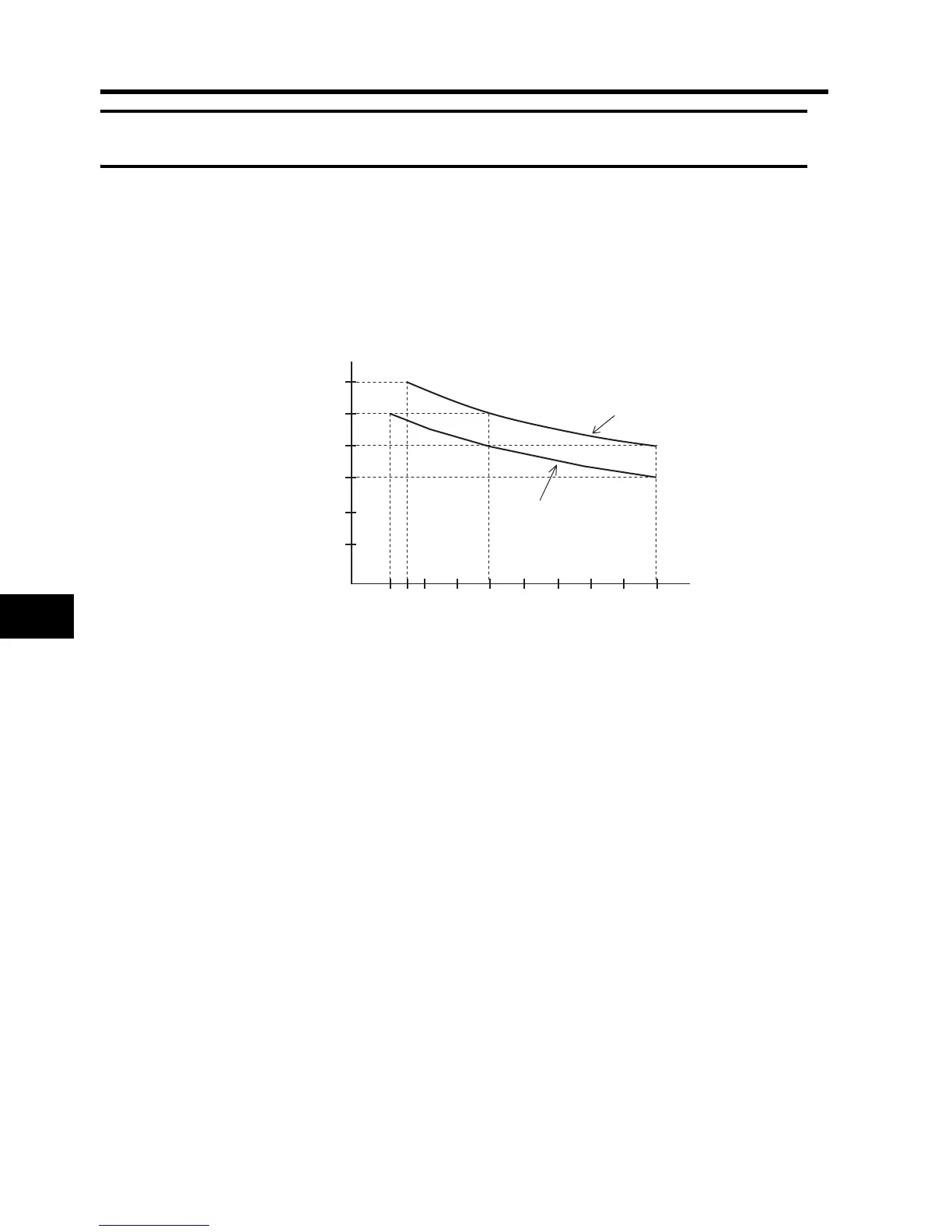

Life of the Inverter smoothing capacitor
Ambient temperature refers to the surrounding temperature of the Inverter. The following diagram
shows the product life curve.
The smoothing capacitor, which will deteriate due to the chemical reaction caused by parts temper-
atures, should normally be replaced once every 5 years. However, if the ambient temperature is
high, or the Inverter is used with a current exceeding the rated current, for example, under overload
conditions, its life will be significantly shortened.
Note: Ambient temperature refers to the surrounding (atmospheric) temperature of the Inverter, or
the temperature inside if the Inverter is encased or installed in an enclosure.
10
20
30
40
1
50
0
-10
2345678910
Ambient
temperature
(°C)
Capacitor life (year)
24-hour operation/day
12-hour operation/day

Omron JX Specifications

General

Enclosure Rating	IP20
Output Frequency	0 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS-485
Frequency Range	0.1 to 400 Hz
Power Rating	0.4 to 15 kW
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000 m above sea level
Output Voltage	3-phase 200 to 240 VAC, 3-phase 380 to 480 VAC
Cooling Method	Fan cooling
