4-2 Function Mode
4

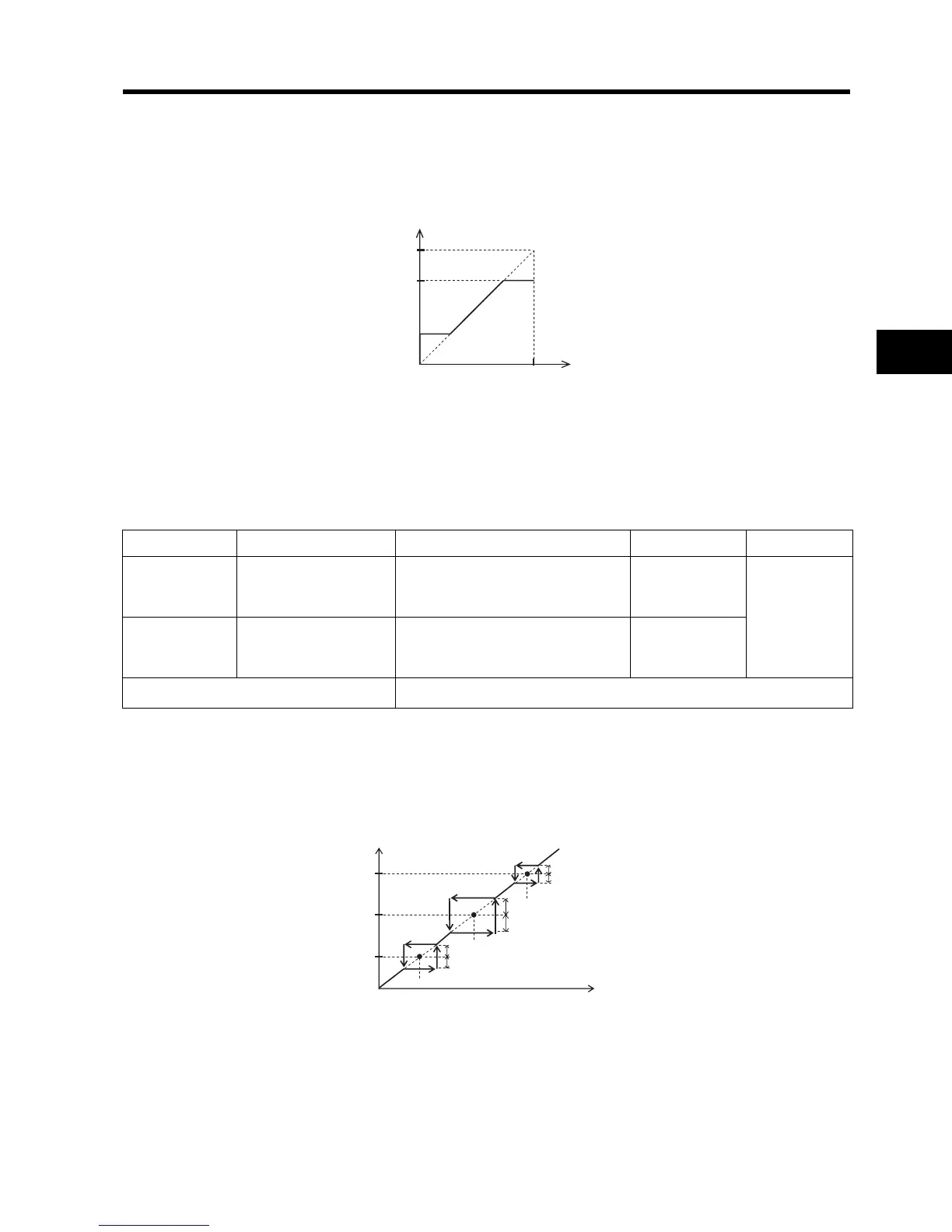

Functions
•You can set both upper/lower limits to the set frequency. This function does not accept any
frequency reference beyond the set limits.
•Set the upper limit first.
Make sure the upper limit (A061/A261) is higher than the lower limit (A062/A262).
•Neither limit would work if set to 0 Hz.
If the lower limit is set, the set value is prioritized even if 0 V (4 mA) is input for frequency reference.
Frequency Jump Function
This function helps avoid resonant points of loaded machines.
•The output frequency cannot be set within the frequency range set in the frequency jump function.
•The output frequency only pass through the jump frequency during acceleration and deceleration
process, but if the frequency reference is set inside this area the output will move automatically out
of this jump area setting a higher or lower frequency depending if inverter is accelerating or
decelerating.
f
Set frequency (Hz)
Max. frequency
A004/A204
A061
A062
0V
4mA
10V
20mA
Frequency
reference
Parameter No. Function name Data Default setting Unit
A063
A065
A067
Jump frequency 1
Jump frequency 2
Jump frequency 3
0.0 to 400.0 0.0
Hz
A064
A066
A068
Jump frequency width 1
Jump frequency width 2
Jump frequency width 3
0.0 to 10.0 0.5
Related parameters C001 to C005
Output
frequency
A067
A065
A063
A068
A068
A066
A064
A066
A064
Frequency
reference

Omron JX Specifications

General

Enclosure Rating	IP20
Output Frequency	0 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS-485
Frequency Range	0.1 to 400 Hz
Power Rating	0.4 to 15 kW
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000 m above sea level
Output Voltage	3-phase 200 to 240 VAC, 3-phase 380 to 480 VAC
Cooling Method	Fan cooling
