Omron JX User Manual

2-11
2-2 Wiring
2
Design

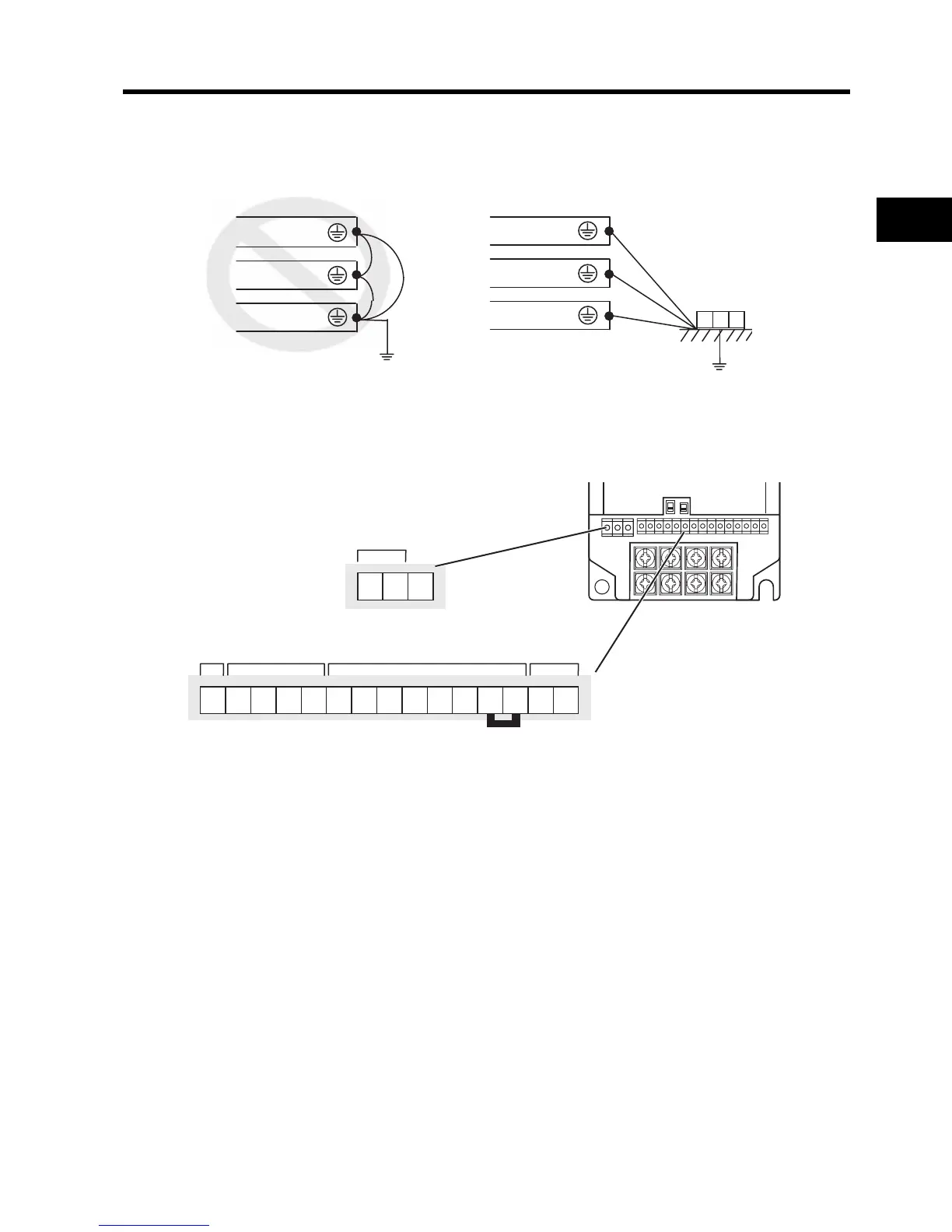

Note 2: Connect securely to the ground as specified (type-D grounding for 200-V class, and
type-C grounding for 400-V class). Do not share the grounding electrode with other strong
electrical devices.
Wiring the Control Circuit Terminals and Relay Terminals
Inverter
Inverter
Inverter
Ground bolt
Inverter
Inverter
Inverter
Example of incorrect grounding Example of correct grounding
AL2 AL1 AL0
Relay
output
AM
H O OI L 5 4 3 2 1 L
PCS P24
CM2 11
Analog
monitor
output
Multi-function input
Multi-function
output
Short-circuit bar
Frequency
reference
input

Omron JX Specifications

General

Enclosure Rating	IP20
Output Frequency	0 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS-485
Frequency Range	0.1 to 400 Hz
Power Rating	0.4 to 15 kW
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000 m above sea level
Output Voltage	3-phase 200 to 240 VAC, 3-phase 380 to 480 VAC
Cooling Method	Fan cooling
