For details on how to operate the simulator, refer to Debugging with Program Simulation in
Sysmac Studio V
ersion 1 Operation Manual (Cat. No. W504)

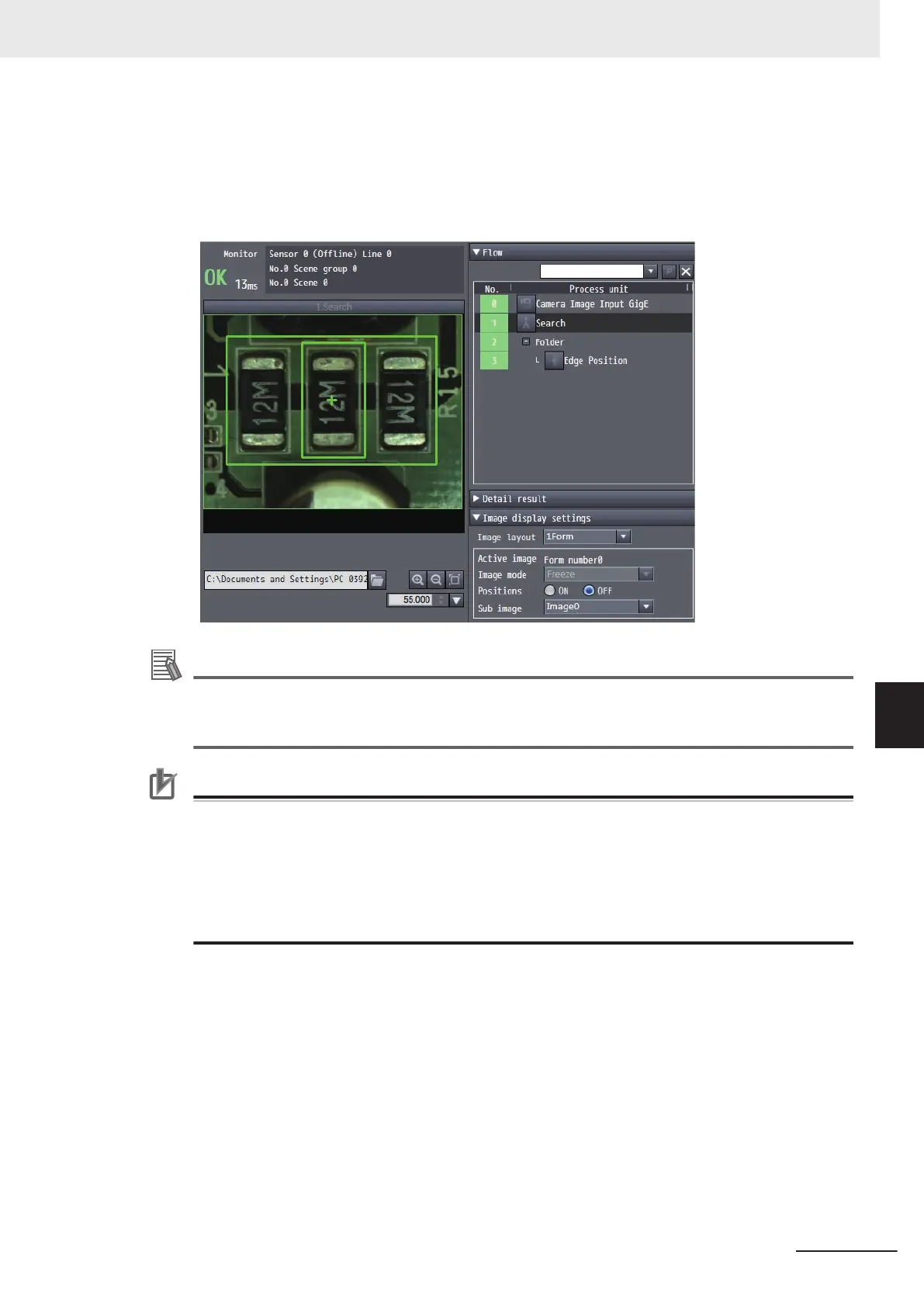

8 If you operate the control flag from sequence control and execute measurement, you will be
able to check the measurement results in the following monitor window
.
Additional Information
If the run mode (Status Flag: Run Mode) of the response area is OFF when simulation is exe-
cuted, open the Monitor window.
When the Monitor window is opened, the run mode changes to ON.
Precautions for Correct Use
• Simulations of sensor control programs can only be executed for a single FH/FHV vision sen-
sor at a time while the sensor settings are being edited offline. You cannot run simulations for
multiple FH/FHV vision sensors at the same time.
• The vision sensor currently being edited offline will have <Editing..> added to the end of the
Type in the Multiview Explorer.
• For simulation, the Sysmac error status is not registered as an event in the Sysmac Studio
troubleshooting window.
7 Offline Debugging
7 - 7
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
7-2 Offline Debugging of the Sensor Control Program and Sensor Operation (Only When Using Ether-
CAT Connection)
7
7-2-2 Offline Debugging Procedure for the Sensor Control Program
