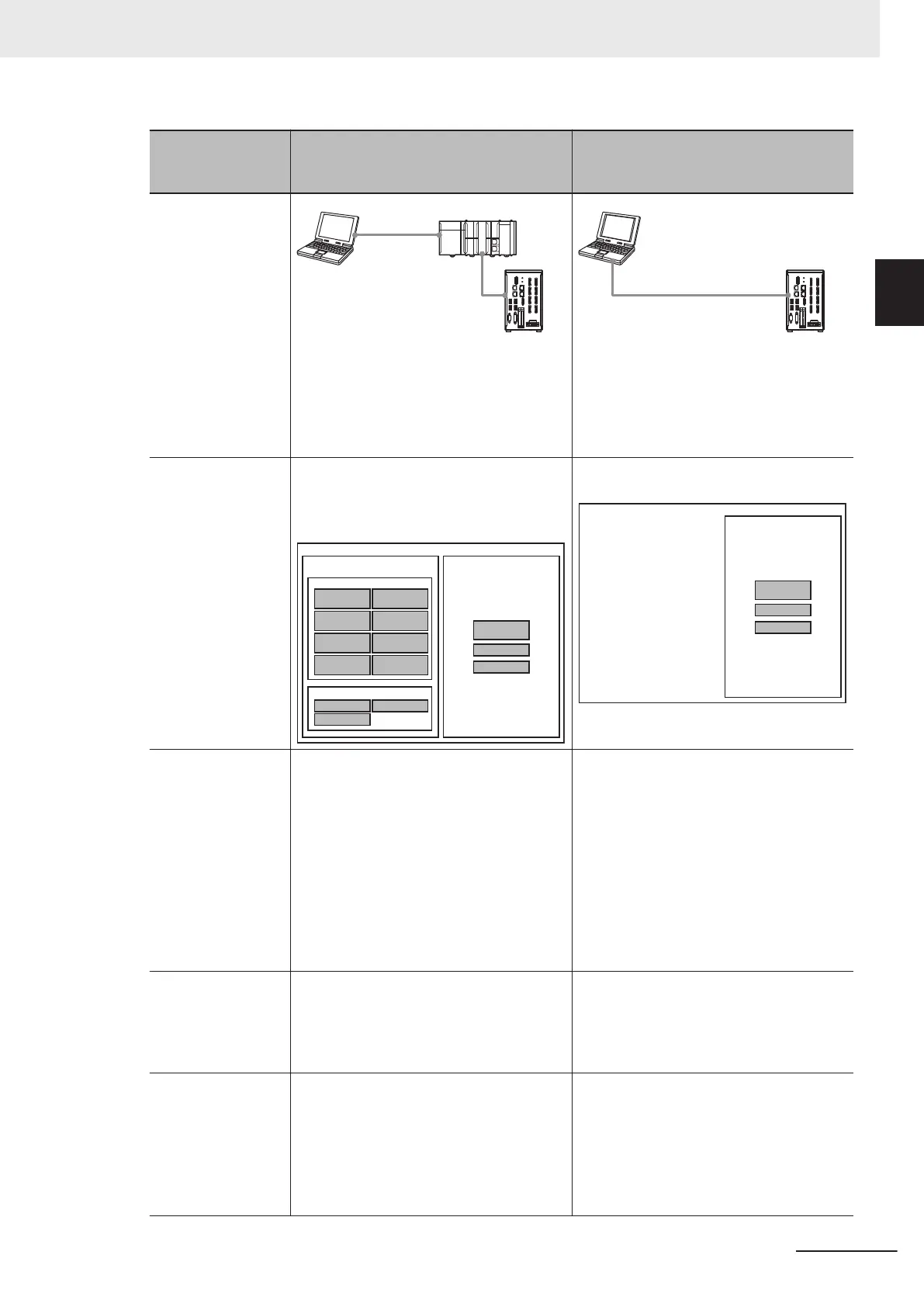

Connection through an NJ/NX/NY-series
Controller (when executing an
NJ/NX/NY project)
Ethernet direct connection
(when executing an FH/FHV project)
System configura-
tion
USB/Ethernet
EtherCAT
Sysmac Studio NJ/NX/NY-series Controller
FH/FHV
The sensor data unit (FHV-SDU30) is re-
quired for EtherCA
T connection between
NJ/NX/NY-series Controller and FHV sen-
sor.
For details, refer to FHV Series Smart
Camera Setup Manual (Cat. No. Z408).
Ethernet
Sysmac Studio
FH/FHV
Project data that the
Sysmac Studio
manages
There are two types of data: the data that
the NJ/NX/NY
-series Controller manages
and the data that the FH/FHV sensor man-
ages.
Configurations and Setup
Configurations and Setup
EtherCAT
CPU/Expansion
Racks
POUs Data
System data
Tool data
Tasks
I/O Map
Controller Setup
Task SetupEvent Setup
Motion Control
Setup
Cam Data
Settings
Scene group
data
Data that the NJ/NX/NY-series
Controller manages
Data that the FH/FHV
sensor manages
Project data
There is the data that the FH/FHV sensor
manages.
System data
Tool data
Scene group
data
Data that the FH/FHV
sensor manages
Project data
Data to be
synchronized with
Sysmac Studio
The data that the NJ/NX/NY-series Control-
ler manages within the project data that
Sysmac Studio manages is synchronized.
Because the data that the FH/FHV sensor
manages (i.e., the settings data for the
FH/FHV sensor) is not synchronized, the
settings for the FH/FHV sensor need to be
synchronized separately
.
For details, refer to the 2-8 Precautions on
Synchronization through an NJ/NX/NY-ser-
ies Controller on page 2 - 44.
The data that the FH/FHV sensor manages
(i.e., the settings data for the FH/FHV sen-
sor) within the project data that Sysmac
Studio manages is synchronized.
For details, refer to the 3-4 Synchronizing
Project Data and Sensor Setting Data on
page 3 - 7.
Available functions
in Sysmac Studio
that control the
FH/FHV sensor
Online
Checking the data output from the FH/FHV
sensor sent through EtherCA
T is possible.
Making setting changes, and creating and
adjusting the measurement flows for the
FH/FHV are not possible.
Making setting changes on the FH/FHV
sensor, creating and adjusting the meas-
urement flows for the FH/FHV in addition to
checking the output data from the FH/FHV
sensor are all possible.
Available functions
in Sysmac Studio
that control the
FH/FHV sensor
Of
fline
Checking the data output from the FH/FHV
sensor sent through EtherCAT is possible.
Making setting changes on the FH/FHV
sensor, creating and adjusting the meas-
urement flows for the FH/FHV in addition to
checking the output data from the FH/FHV
sensor are all possible.
Making setting changes on the FH/FHV
sensor, creating and adjusting the meas-
urement flows for the FH/FHV in addition to
checking the output data from the FH/FHV
sensor are all possible.
1 Overview
1 - 5
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
1-2 Project Management
1
1-2-2 Project Data Handling in Different System Configurations
