Omron SYSMAC FH Series Operation Manual

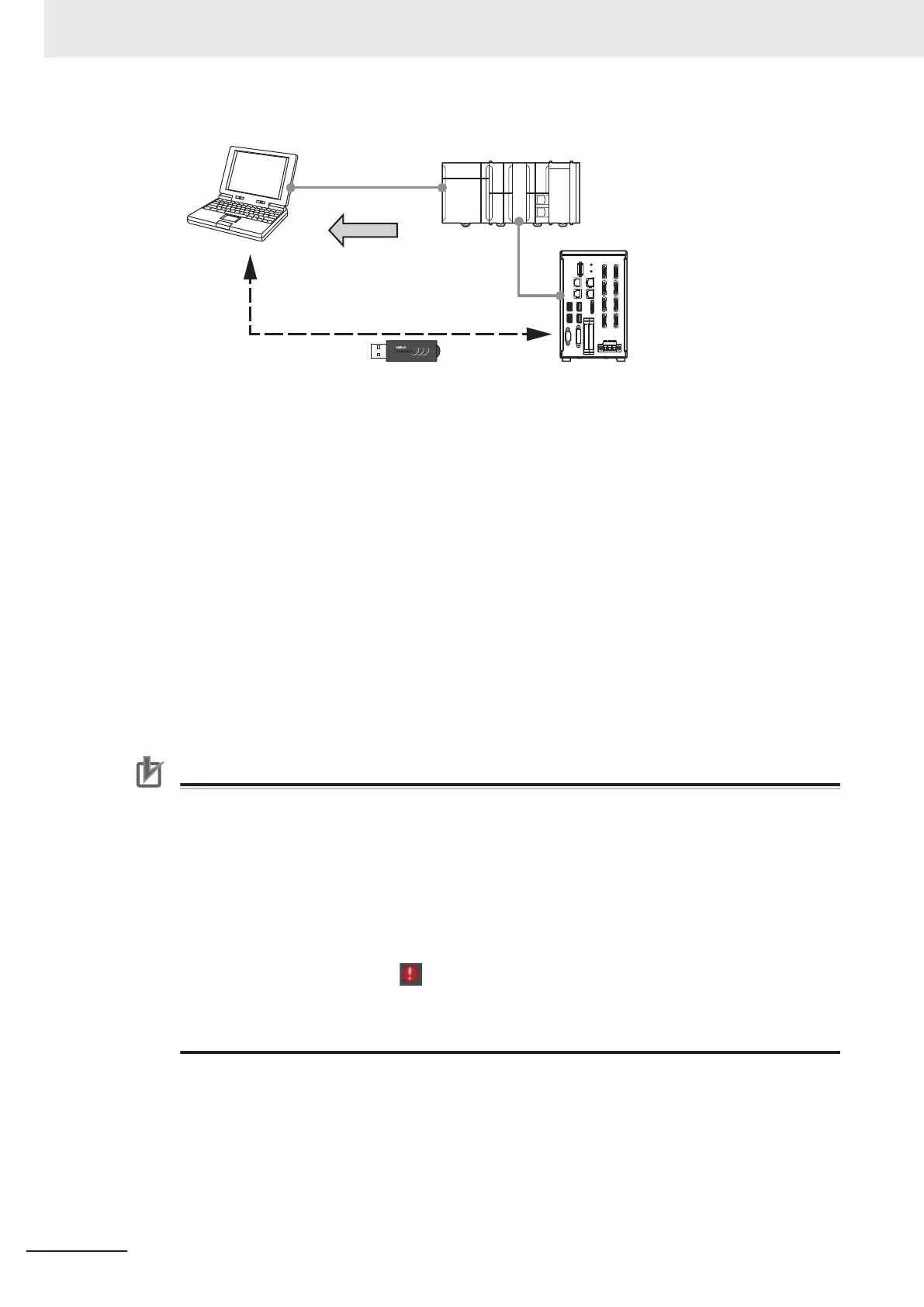

Downloading
USB/Ethernet
EtherCAT
Sysmac Studio NJ/NX/NY-series Controller
FH/FHV
USB memory/SD memory card
• Saving the settings data for the FH/FHV sensor (FH/FV sensor to external memory)
The following section describes the procedures for saving the settings data for the FH/FHV
sensor to the external memory
.
Refer to2-8-2 Saving and Loading the Settings Data for the FH/FHV Sensor Controller on
page 2 - 45.
• Procedures for transferring the data from the NJ/NX/NY-series Controller to the Sysmac Stu-
dio (NJ/NX/NY-series Controller to Sysmac Studio)
Establish an online connection with the NJ/NX/NY-series Controller and transfer the data
from the NJ/NX/NY-series Controller to the Sysmac Studio.
Refer to Sysmac Studio Version 1 Operation Manual (Cat. No. W504).
(1) Establish an online connection between the NJ/NX/NY-series Controller and the comput-
er that runs the Sysmac Studio.
(2) Select Synchronize from the Controller Menu.
(3) Select Transfer to computer.
Precautions for Correct Use
Do not restart the FH/FHV sensor or edit the settings data for the FH/FHV sensor from the Sys-
mac Studio at the timing when T
ransfer to computer is executed.
The values for the settings data that the FH/FHV sensor manages will be reset to the factory
defaults immediately after the execution of Transfer to computer. With default values set to
the settings data, editing the settings data updates the associated I/O Map with the default val-
ues.
Be sure not to restart the FH/FHV sensor before the completion of the data transfer.
Also, be sure not to save the project before restart of the FH/FHV sensor.
If the synchronization with the NJ/NX/NY-series Controller is performed again after the data
transfer to the Sysmac Studio, (
) in the EtherCAT configurations will be displayed.
This is because the settings data for the FH/FHV sensor has been updated.
If you follow the procedures above, the Sysmac Studio project data matches the data in the
NJ/NX/NY-series Controller.
• Procedures for transferring the settings data for the FH/FHV sensor to the Sysmac Studio
(external memory to Sysmac Studio)
Loads the settings data for the FH/FHV sensor that is in the external memory to the Sysmac
Studio.
Refer to 2-4-4 Multiview Explorer on page 2 - 11.
Load following four types of the settings data individually.
(1) System + Scene group 0 data
2 Basic Operations
2 - 48
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
