(2) Data for scene groups 1 to 31
(3) Communications command macro data
Refer to 8-1 Using the Command Customize Setting T
ool on page 8 - 2.
(4) Security settings data
Refer to 8-7 Using the Security Setting Tool on page 8 - 10.
Precautions for Correct Use
If the FH sensor controller is in the Multi-line Random-trigger Mode, the settings data for the FH
sensor controller must be loaded for each individual line.
l
Load the system data and the scene group data
The following procedures describe how to load the system data and the scene group data.

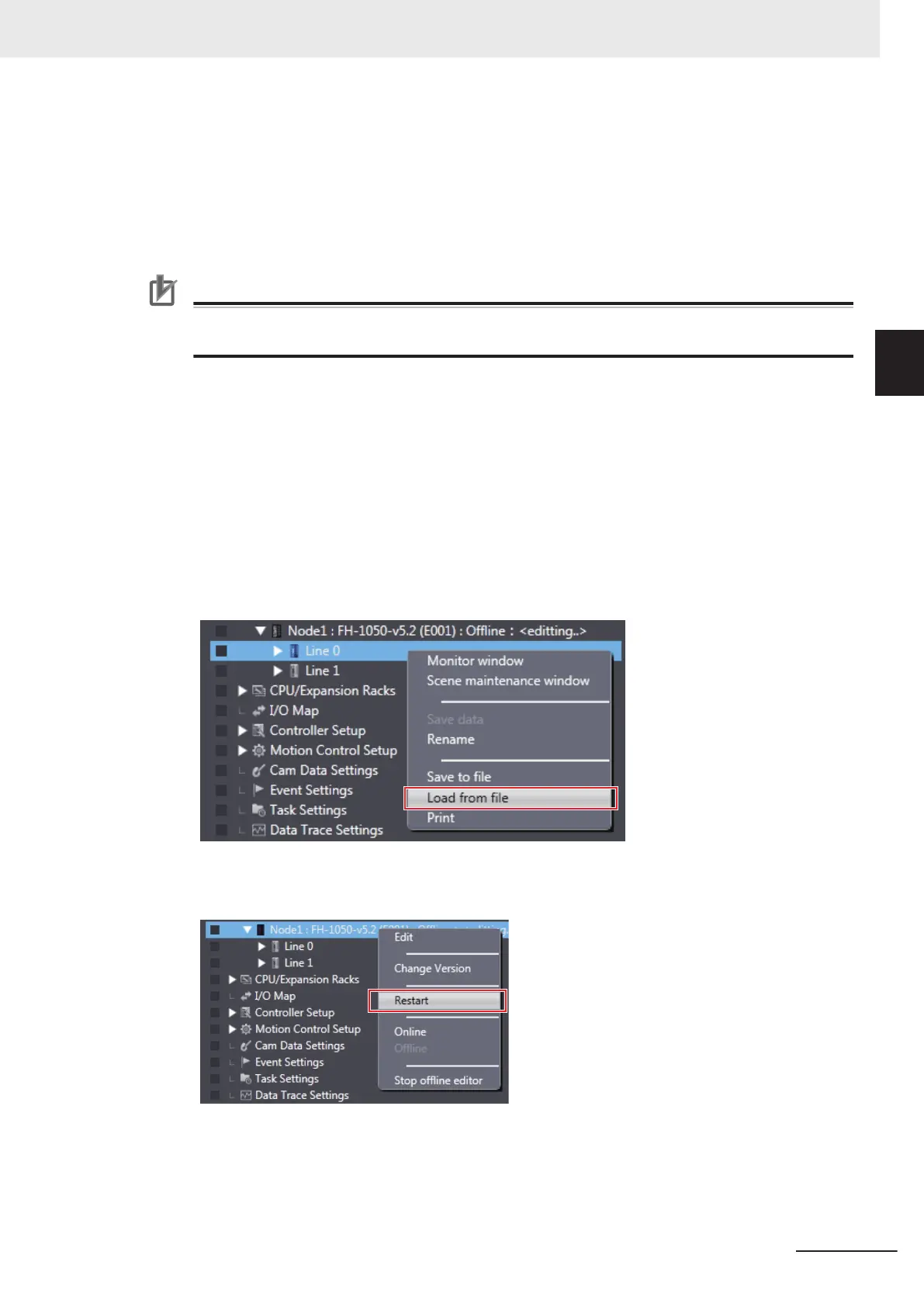

1 Insert the external memory to the computer that runs the Sysmac Studio.
2 In the Multiview Explorer tree, select the FH/FHV sensor to which you want to load the data.
3 Right-click the selected FH/FHV sensor and select Edit from the menu.
4 Right-click the line number and select Load from file from the menu.
5 Right-click the FH/FHV sensor and select Restart
from the menu.
This operation shows the line with the selected line number in the tree.
6 Repeat steps 4 and 5 for each line.
7 After completion of data transfer for all lines for all FH/FHV sensors, save the Sysmac Studio
project.
2 Basic Operations
2 - 49
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
2-8 Precautions on Synchronization through
an NJ/NX/NY-series Controller
2
2-8-4 Transferring Data to the Sysmac Studio
