What’s Inside?
Reassembling the WS5A
o A small number of units were produced using a LED backlight LCD
from AUO. The Figure below shows how to connect the LED
backlights and resistive touchscreen (Revision D).

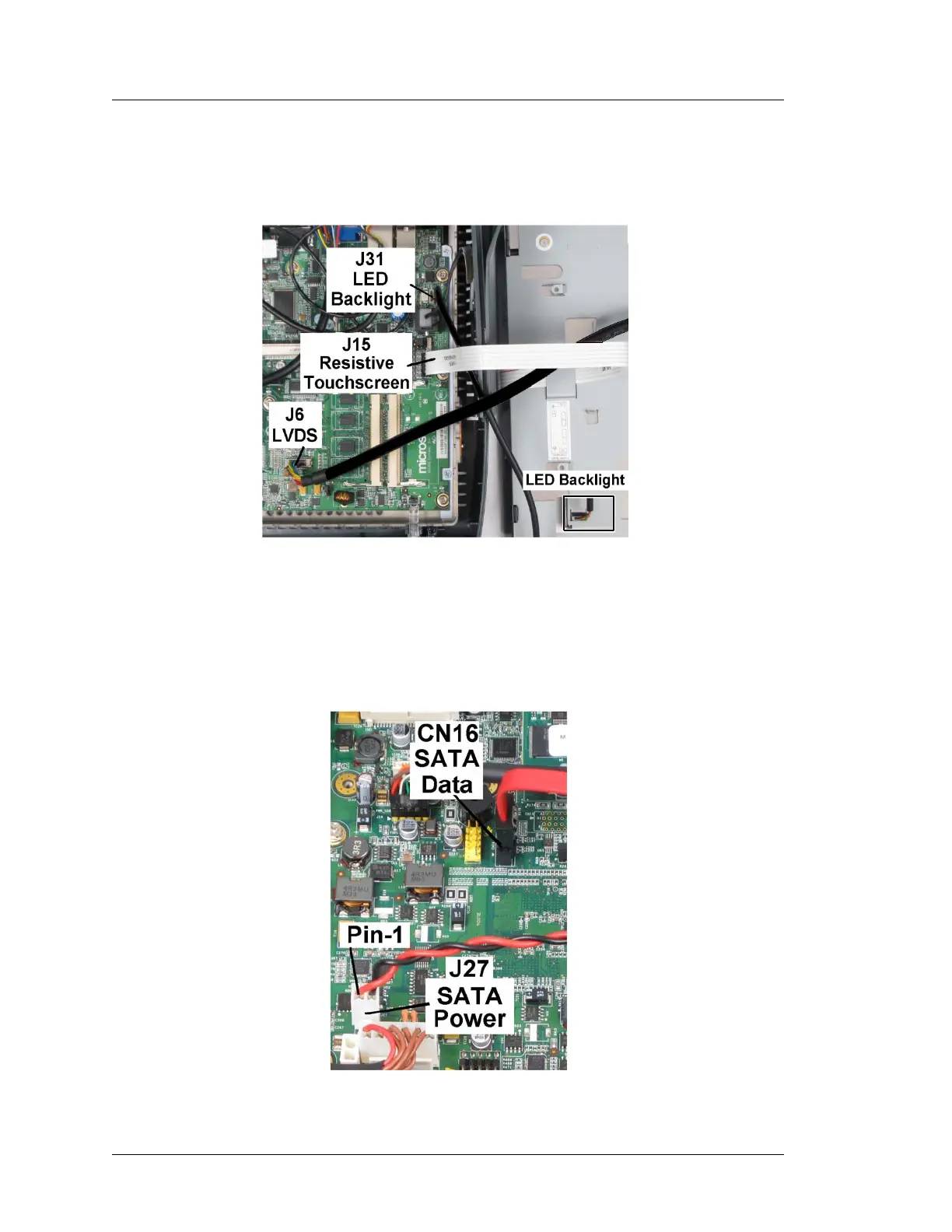

Figure 3-33: Installing LCD/Touchscreen Cables (LED-Resistive Touchscreen)
o The Figure below shows how to connect the optional capacitive
touchscreen interface and CCFL Inverter.
3. If an optional SATA Hard Drive is installed, connect it to the system board
as shown in the Figure below.
Figure 3-34: Connecting the optional SATA Drive
