What’s Inside?
Reassembling the WS5A
4. Install the LCD/Touchscreen Assembly in the base. The top of Figure 3-35,
below shows the tabs at the rear of the assembly and the slots in the base.
Insert the tabs into the base.
5. Before closing, make sure the L
VDS cable is positioned as shown below
and the backlight cable does not rest on the chassis lip.

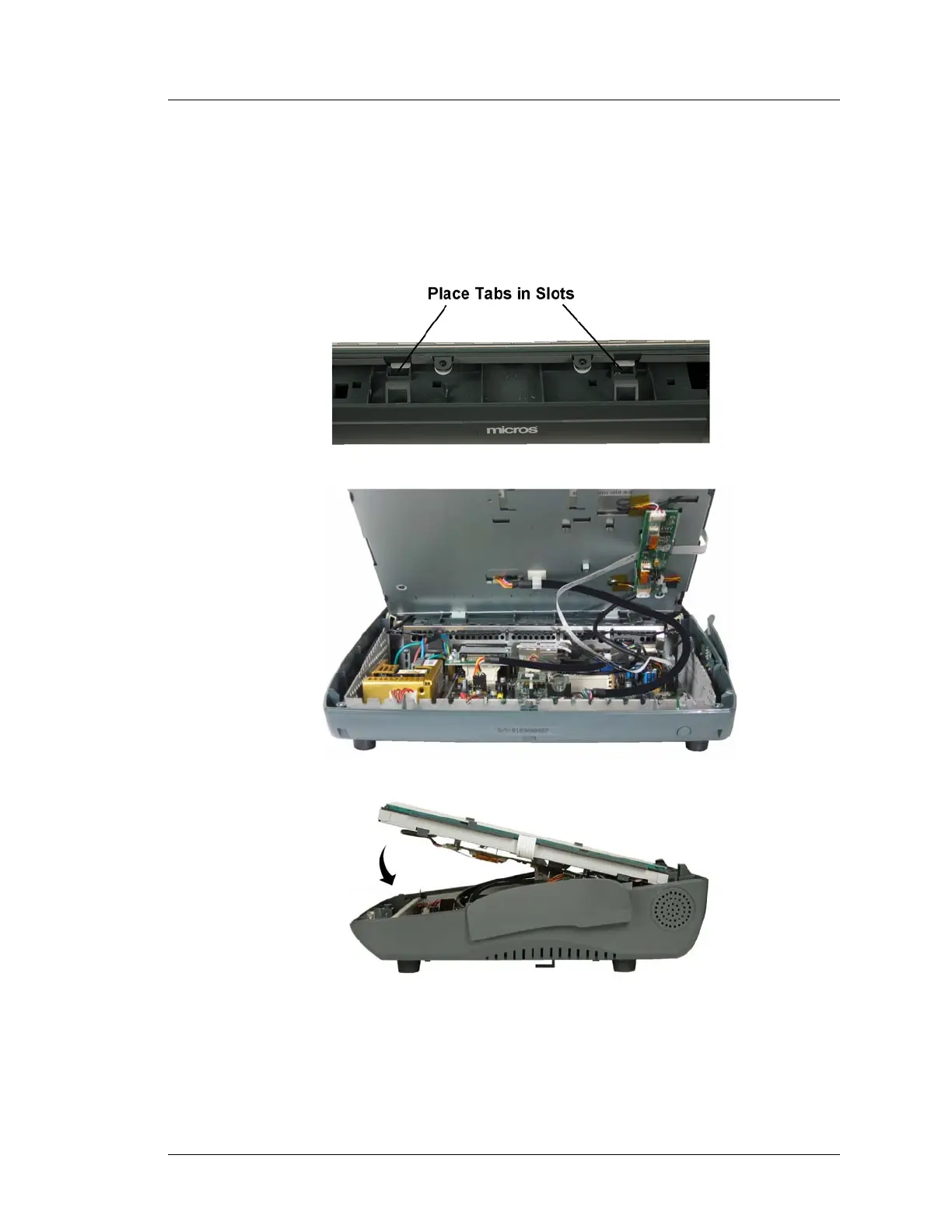

Figure 3-35: Installing the LCD/Touchscreen Assembly
6. Install the s
crew the secures the LCD/Touchscreen Assembly to the base.
