4-12 Workstation 5A Setup Guide - Fourth Edition
Installing and Operating the Workstation 5A
Installation
.

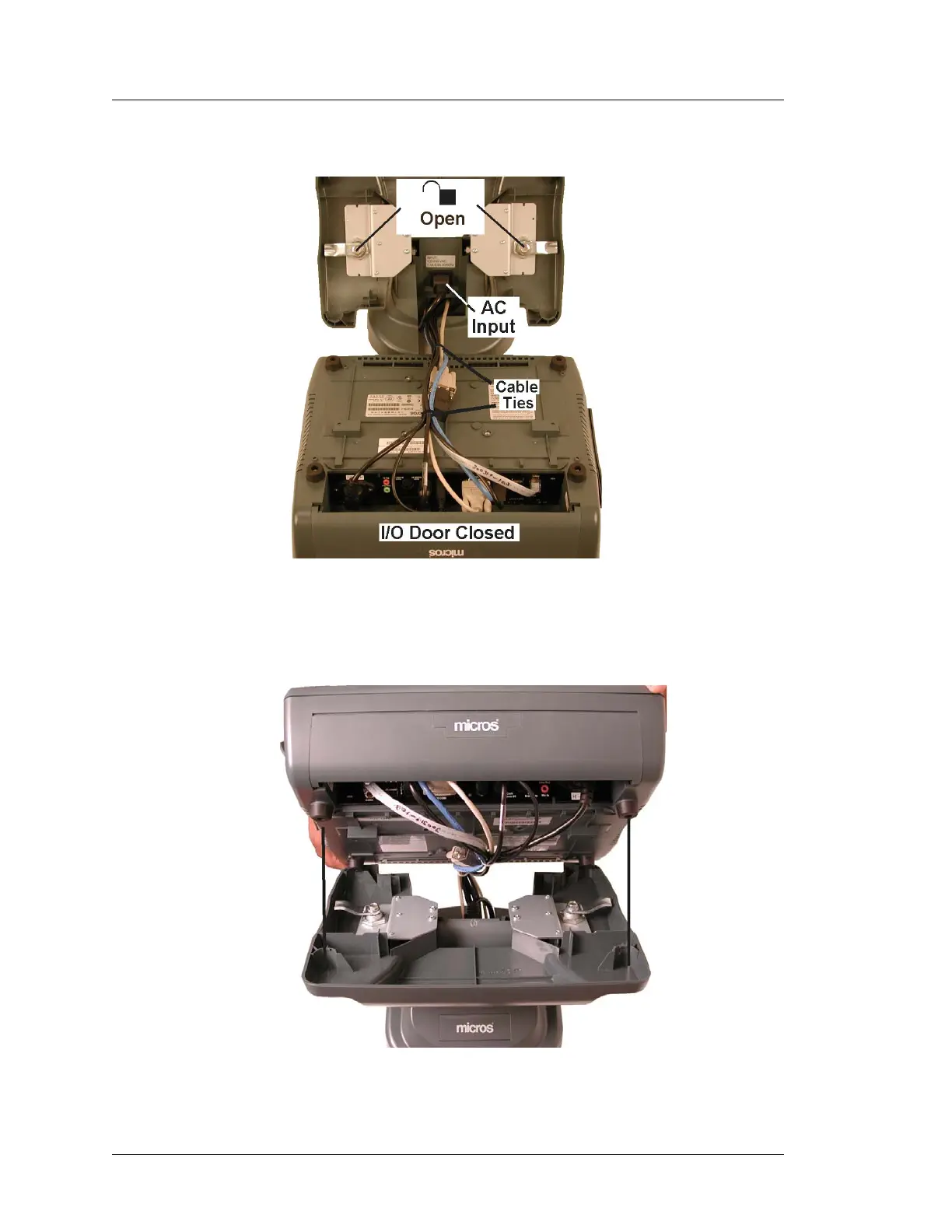

Figure 4-7: Preparing to attach the Workstation to the optional Stand
3. Mount the cabled workstation by placing the rubber feet into the
receptacles on the adjustable stand. Figure 4-8, below.
Figure 4-8: Placing the Workstation to the Adjustable Stand
