3-6 Workstation 5A Setup Guide - Fourth Edition
What’s Inside?
Disassembling the Workstation 5A
With the LCD/Touchscreen removed, the upper half of Figure 3-5 below,
displays the Workstation 5A base. For comparison, the original Workstation 5
is shown in the lower half of the image.
The Workstation 5A uses the same plastic base, mag card reader assembly, and
speakers as the original Workstation 5. However the chassis, Intel Atom based
System Boards, SO-DIMMs, DMA Enabled CF Riser Card, power supply and
improved power button actuator are new to the Workstation 5A.

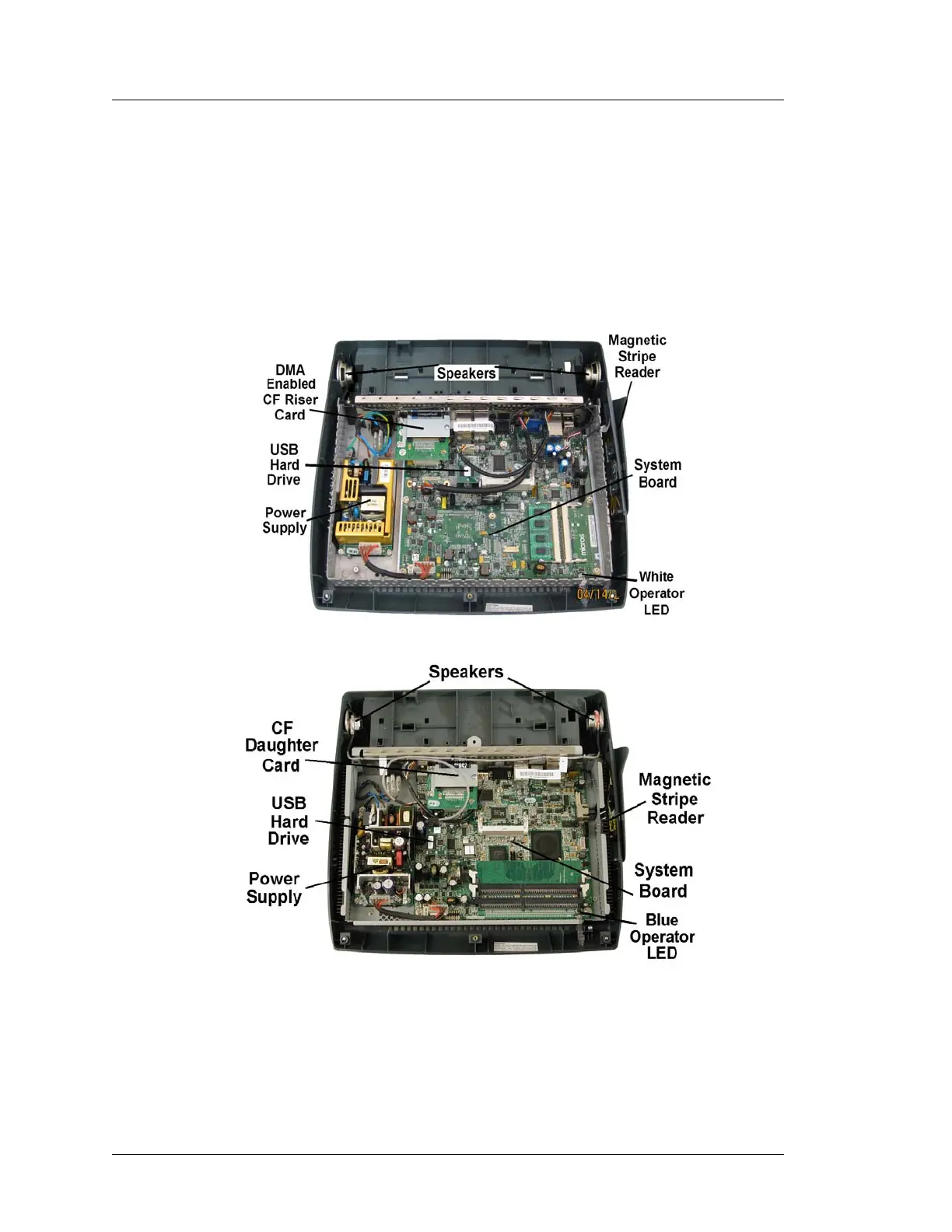

Figure 3-5: WS5A (Top) and WS5 (Bottom) Base, System Board and Power Supply
The Workstation 5A chassis is composed of a lightweight magnesium alloy
.
The CPU and ICH8M contact a copper heat sink fastened to the chassis.
