Oracle SL150 - SCSI Element Addressing; Example Library Configurations and Slot Maps; Non-Partitioned One Module Library, Standard Mailslot, and no Reserved Cells

Component Physical addressing
Power Supply
module , top|bottom
Hand (Robot) No address
SCSI Element Addressing
See the SL150 SCSI Reference Guide for more information.
Example Library Configurations and Slot Maps
Library addressing varies depending on the library configuration.

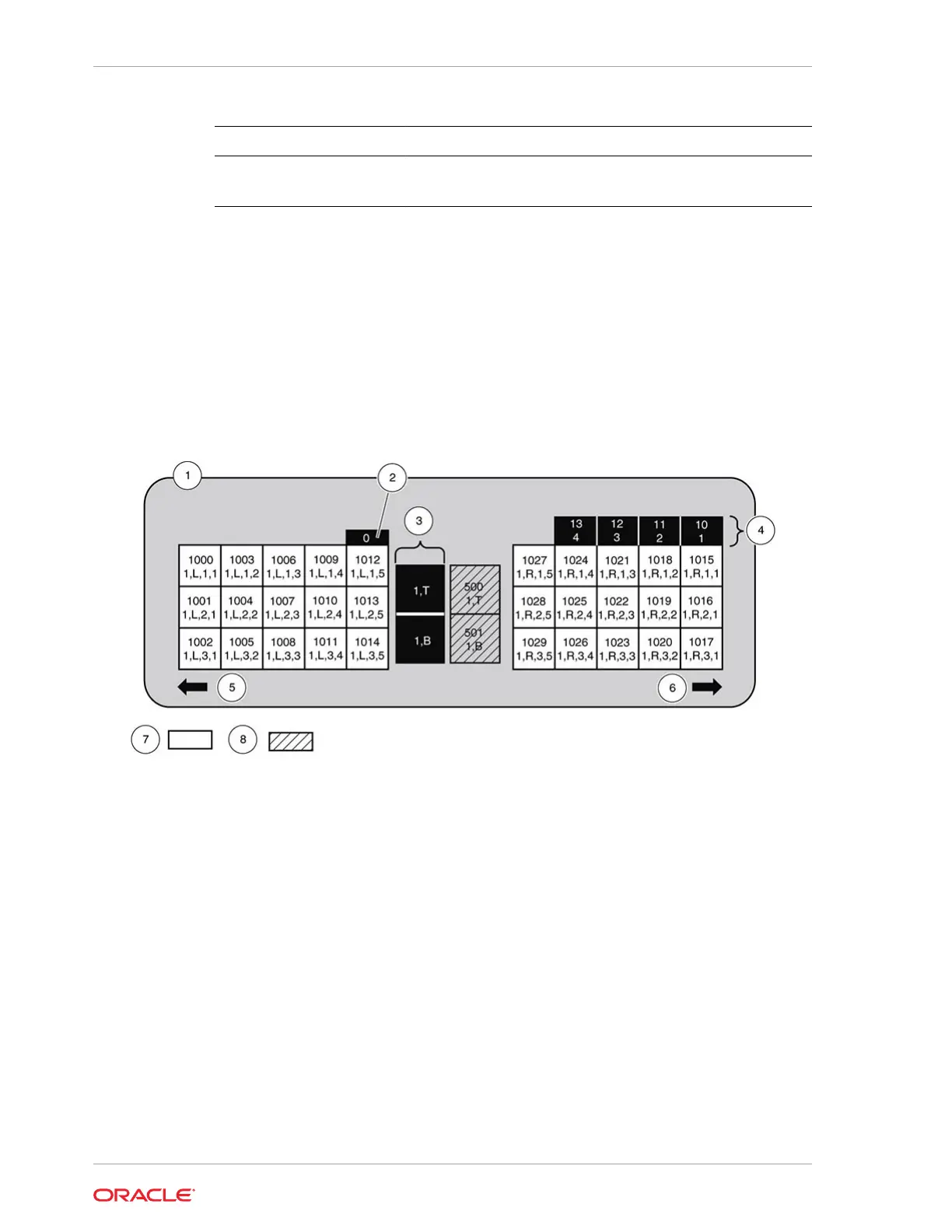

Figure A-1 Non-Partitioned One Module Library, Standard Mailslot, and No Reserved Cells
Illustration Legend:
1 - Module 1 (Base)
2 - Robot
3 - Power supplies
4 - Standard mailslots
5 - Left magazine front
6 - Right magazine front
7 - Storage slots
8 - Tape drives
Appendix A
SCSI Element Addressing
A-2
