Install the Base Module Back Rails
The back rails will connect to the front rails and support the module. Install the back
rails before the front rails.
Parts Required
Back rails (1 left, 1 right)
Two Mounting blocks
Two 8–32 X 5/8 screws

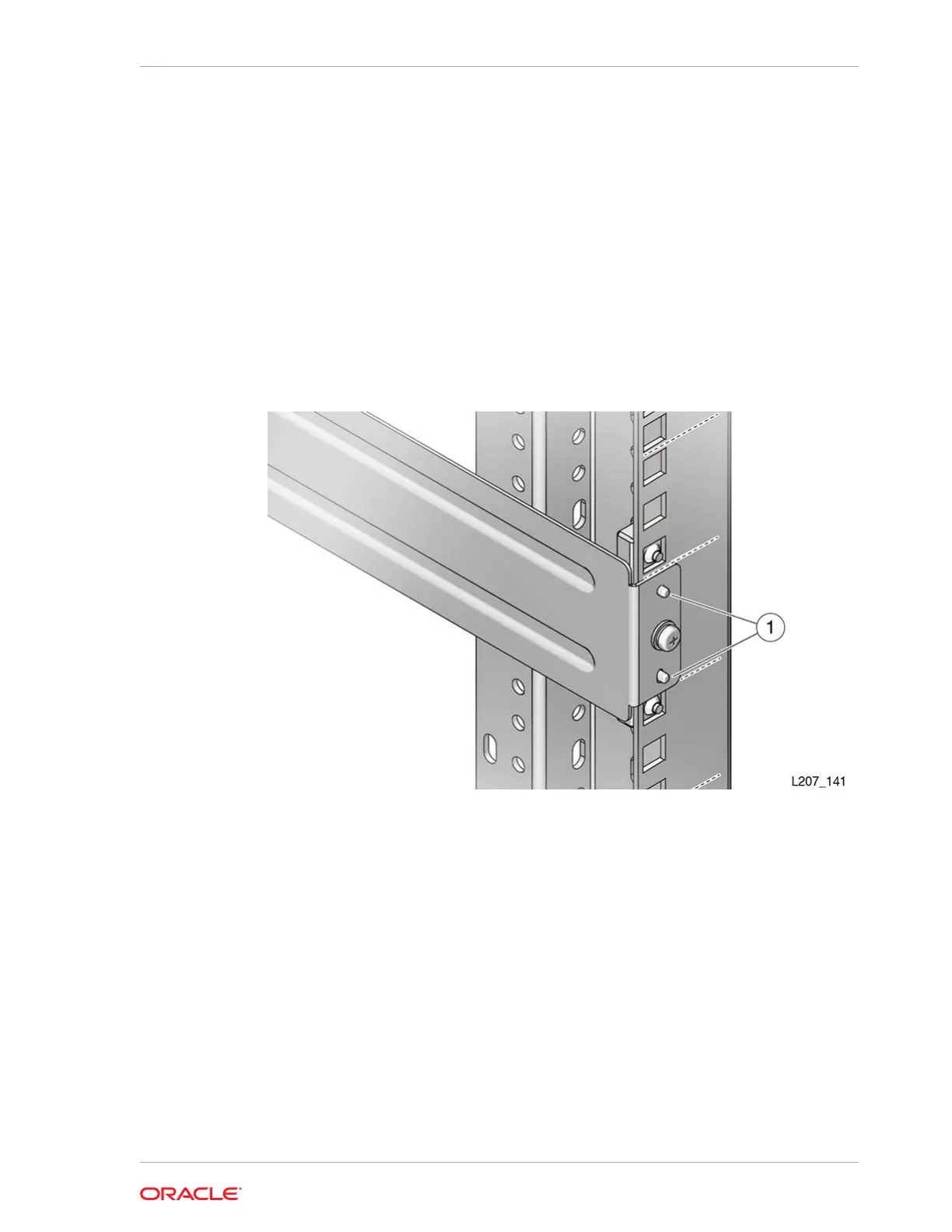

Figure 2-3 Back Rail Position
Illustration Legend:
1 - Pins
Chapter 2
Install the Base Module
2-7
