Oracle SL150 - Non-Partitioned Two Module Library, Expanded Mailslot, and no Reserved Cells

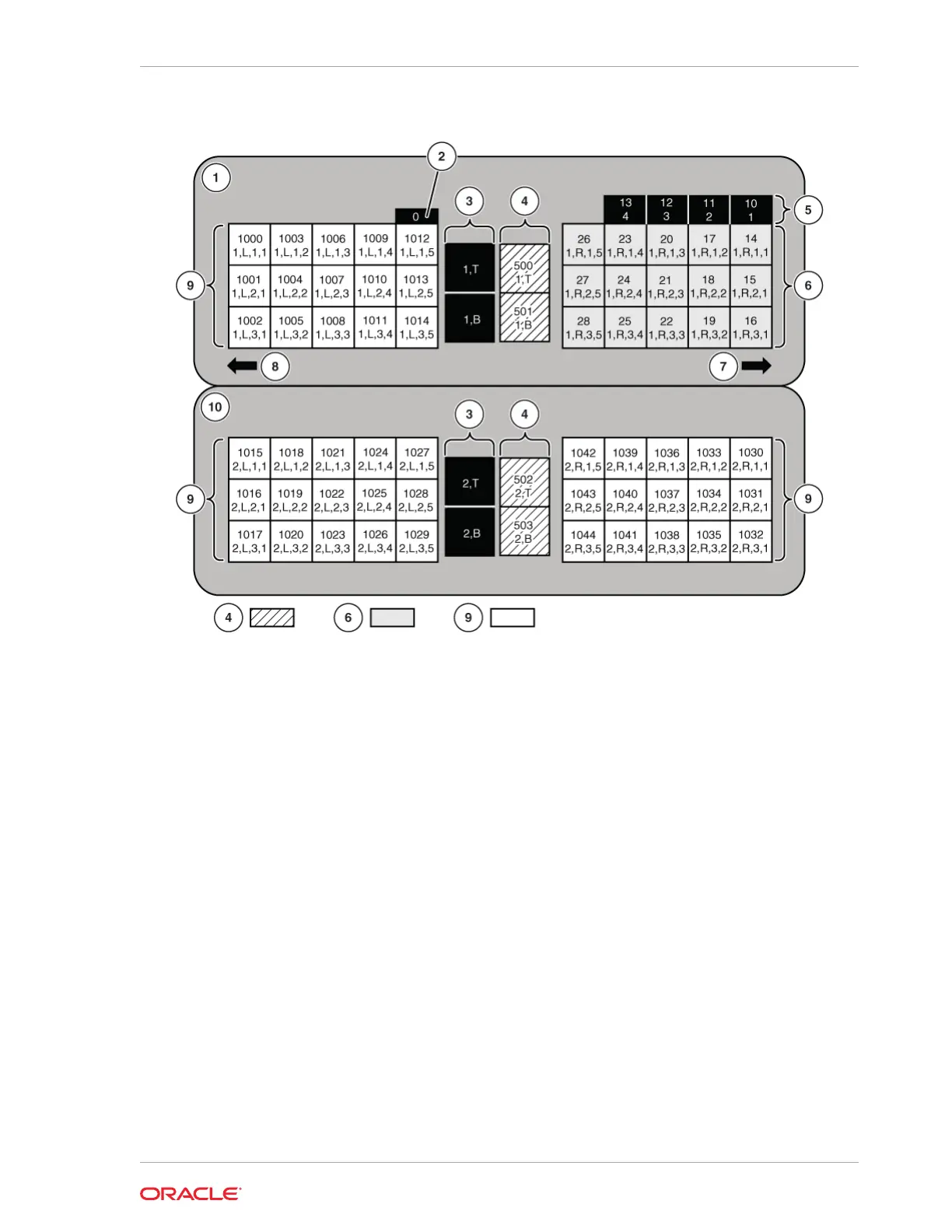

Figure A-2 Non-Partitioned Two Module Library, Expanded Mailslot, and No Reserved Cells
Illustration Legend:
1 - Module 1 (Base)
2 - Robot
3 - Power supplies
4 - Tape drives
5 - Standard mailslot
6 - Mailslot expansion
7 - Right magazine front
8 - Left magazine front
9 - Storage slots
10 - Module 2 (Expansion)
Appendix A
Example Library Configurations and Slot Maps
A-3
