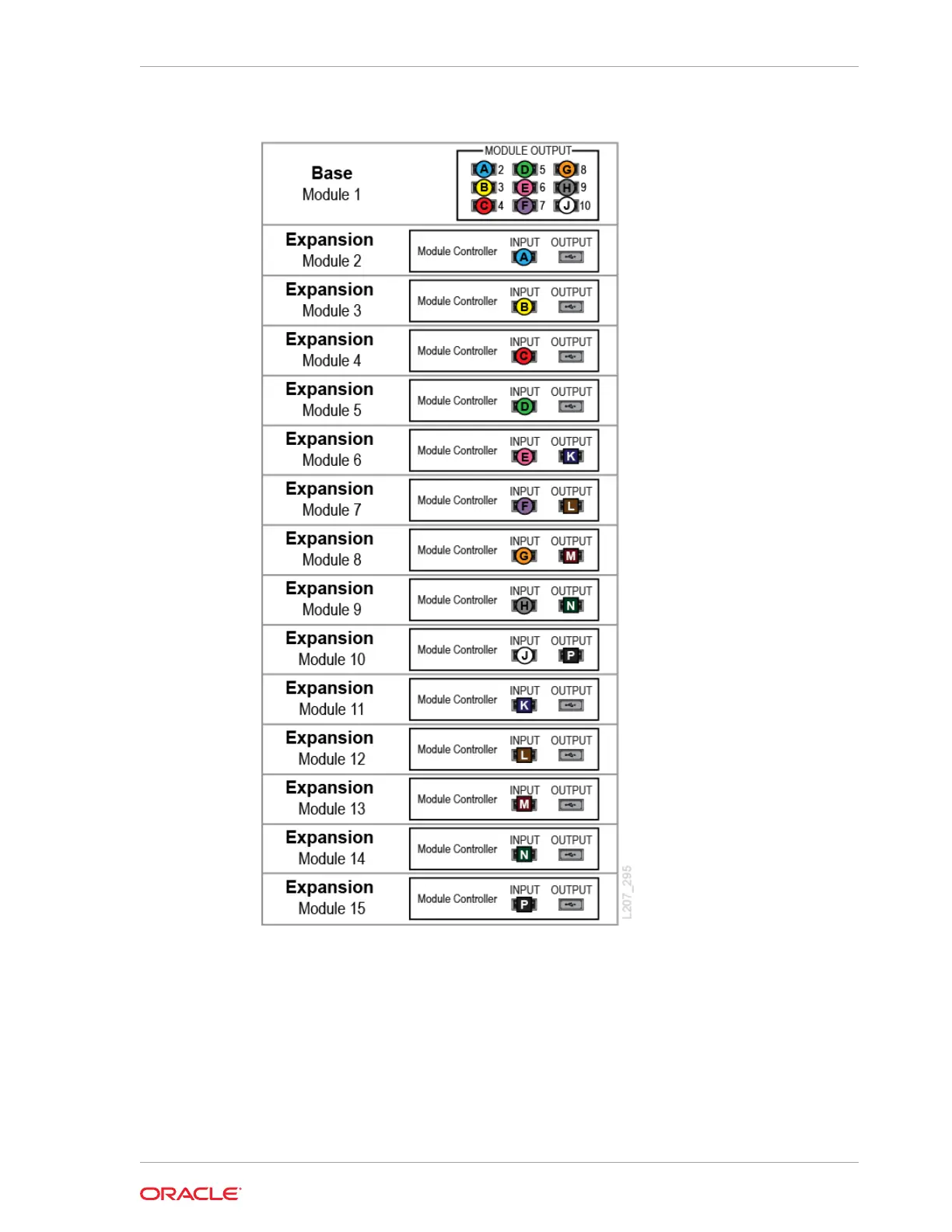

Figure 2-27 Cabling the Expansion Modules
Connect Cables to the Drives and Power Supplies
Connect the power cables to the power supplies and FC/SAS cables to the drives.
1. For each power supply, connect the power cord to the power supply and the power
distribution unit in the rack.
Chapter 2
Cable the Library
2-31
