Oracle SL150 - Non-Partitioned 15 Module Library, Standard Mailslot, and Three Reserved Cells

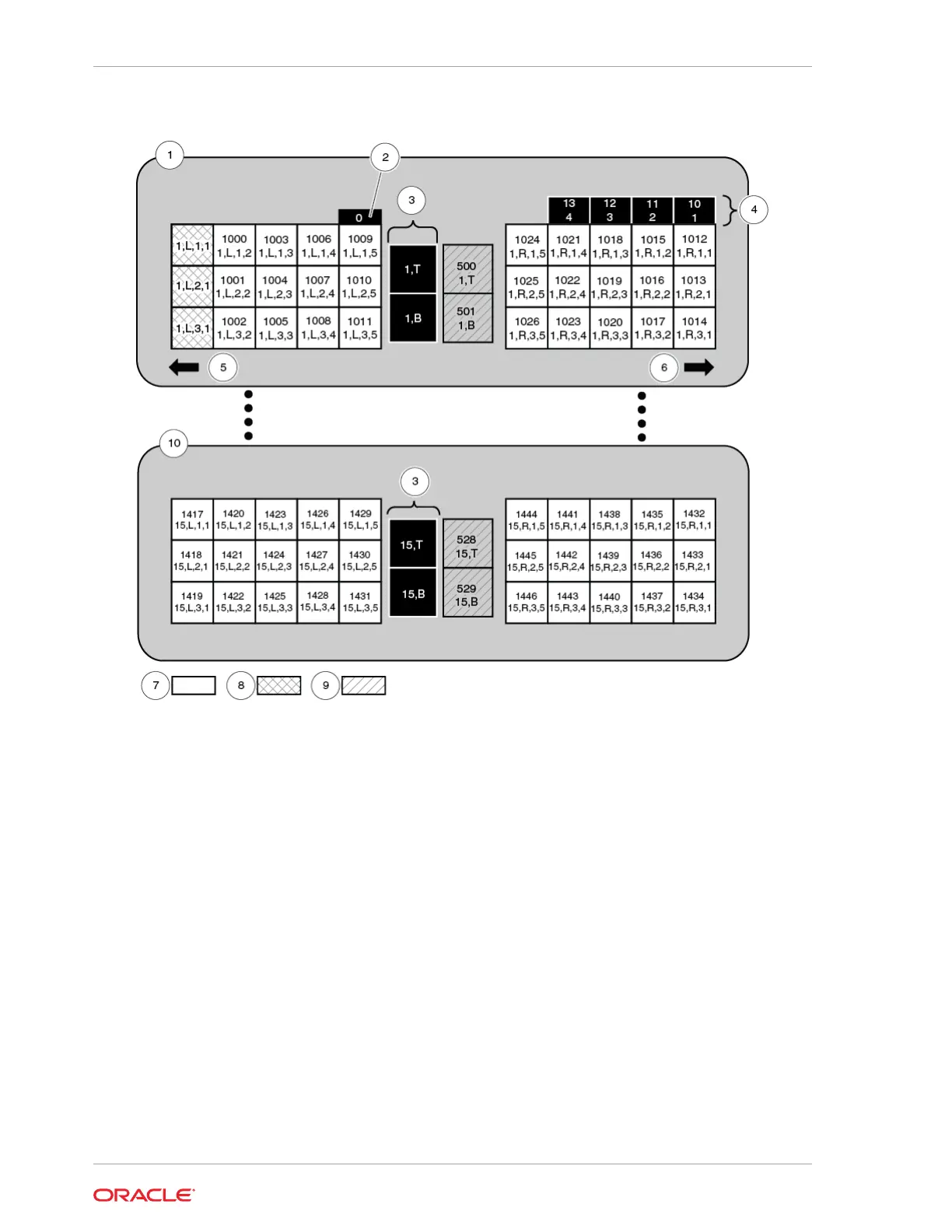

Figure A-3 Non-Partitioned 15 Module Library, Standard Mailslot, and Three Reserved Cells
Illustration Legend:
1 - Module 1 (Base)
2 - Robot
3 - Power supplies
4 - Standard mailslots
5 - Left magazine front
6 - Right magazine front
7 - Storage slots
8 - Reserved slots (Configurable)
9 - Tape drives
10 - Module 15 (Expansion)
Appendix A
Example Library Configurations and Slot Maps
A-4
