Install a Storage Backplane
114 SPARC T5-4 Server Service Manual • July 2016
b.

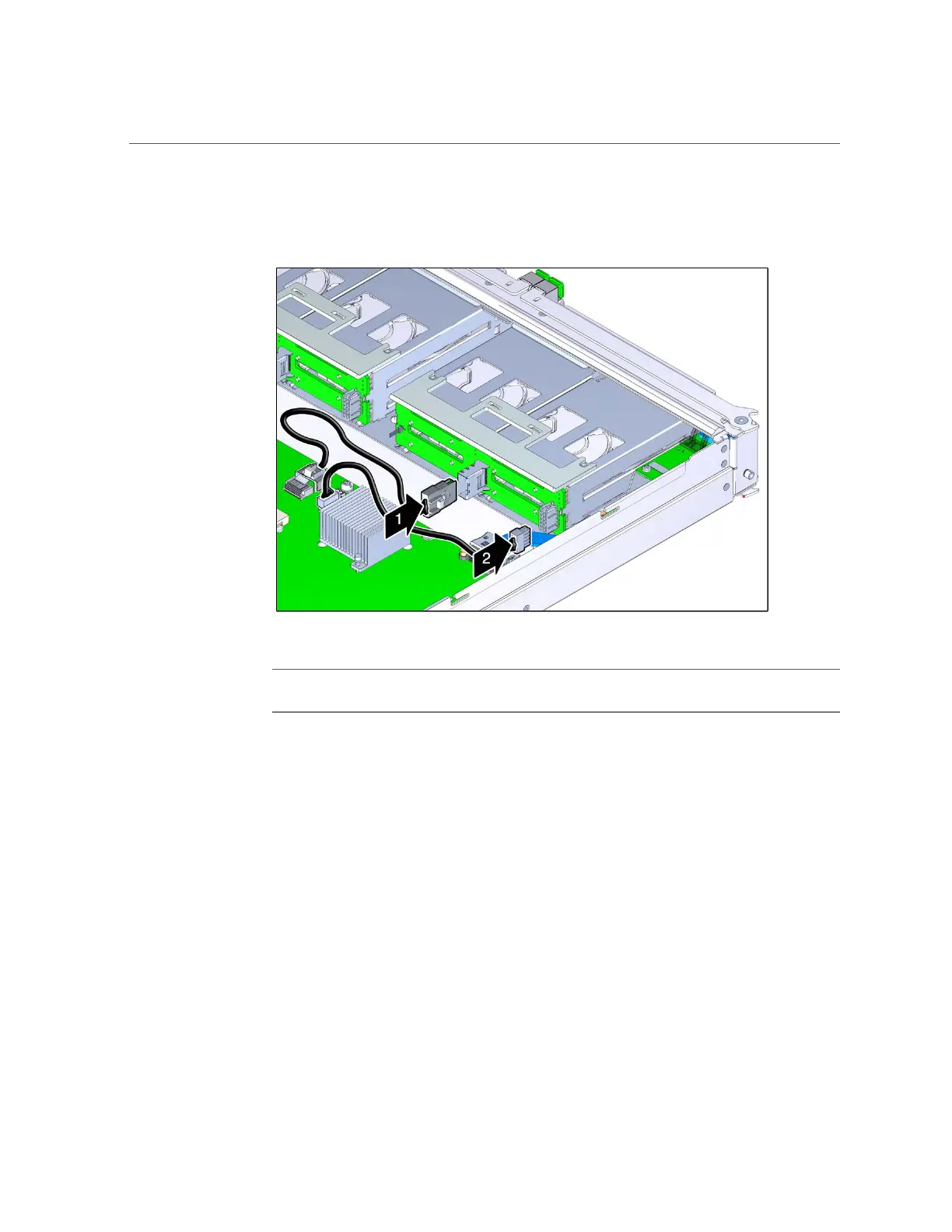

Connect the power cable to the storage backplane and the motherboard.
1 Data cable, storage backplane connection
2 Power cable, storage backplane connection
7.
Insert the main module back into the server.
See “Install the Main Module” on page 102.
8.
Install the hard drives that you removed back into the main module.
Refer to the notes that you took when removing the hard drives to install them back into their
original slots. See “Install a Hard Drive” on page 93.
9.
Power on the server.
See “Returning the Server to Operation” on page 191.
Related Information
■
“Remove a Storage Backplane” on page 107
