Oracle SPARC T5-4 - Front Panel Components

Front Panel Components
14 SPARC T5-4 Server Service Manual • July 2016

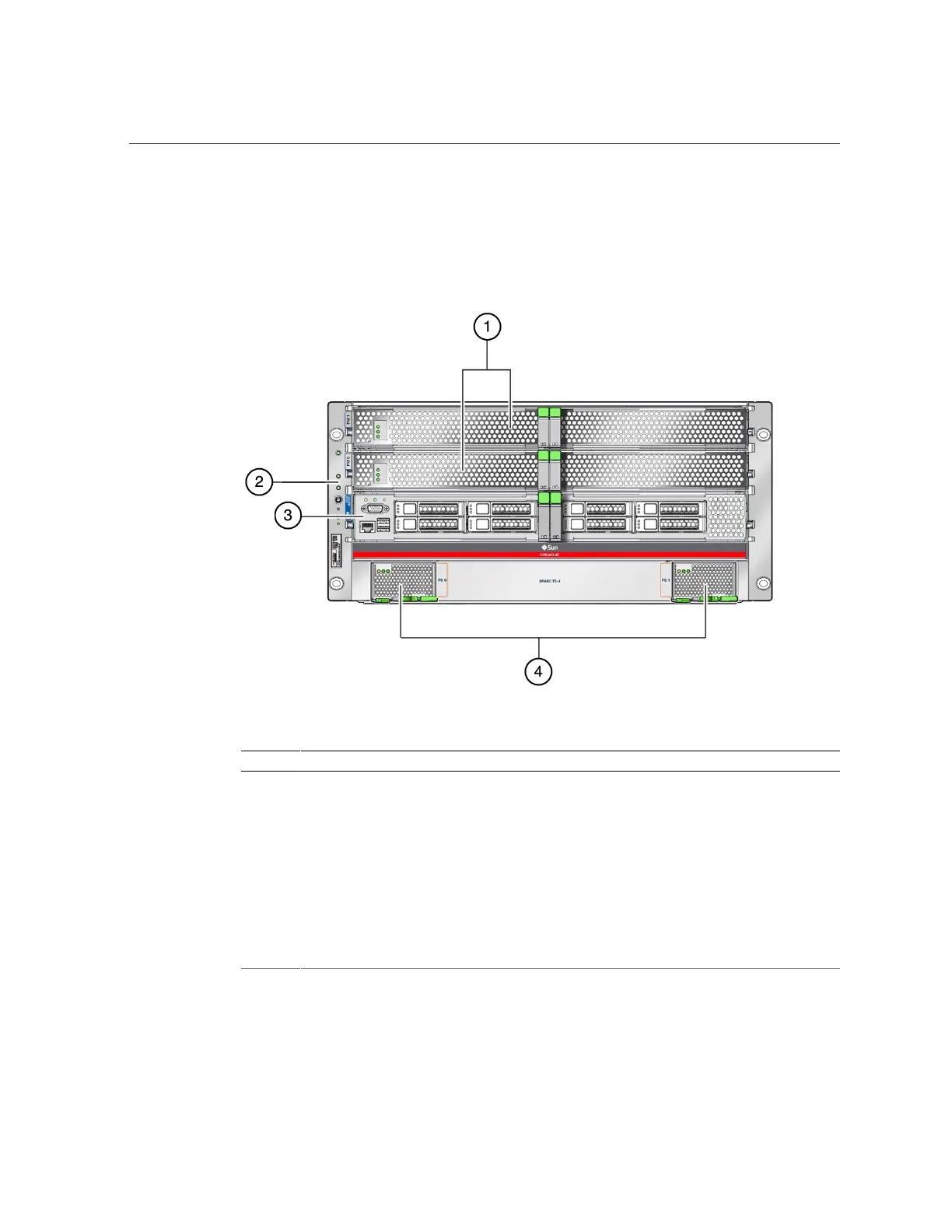

Front Panel Components
No. Description Links
1 Processor modules (slots 0 and
1) or processor filler module
(slot 1 only)
“Processor Module Components” on page 18
“Servicing Processor Modules” on page 57
2 Control panel “Detecting and Managing Faults” on page 23
“Preparing for Service” on page 45
“Returning the Server to Operation” on page 191
3 Main module “Main Module Components” on page 19
“Servicing the Main Module” on page 97
4 Power supplies (2) “Servicing Power Supplies” on page 135
Related Information
■
“Rear Panel Components” on page 15
