Chassis Subassembly Components
Identifying Components 17

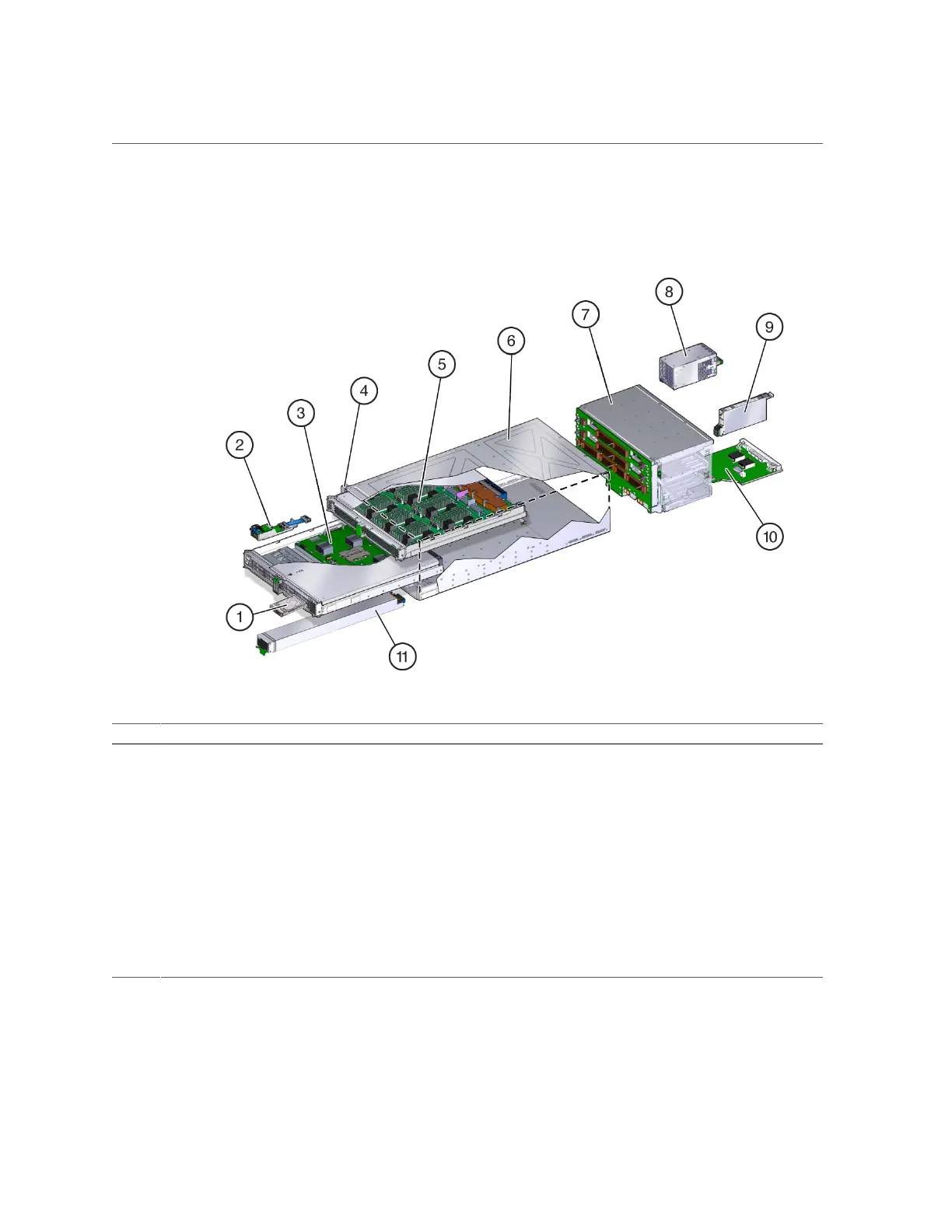

Chassis Subassembly Components
No. Description Links
1 Hard drives (8) “Servicing Hard Drives” on page 87
2 Front I/O assembly “Servicing the Front I/O Assembly” on page 131
3 Main module “Servicing the Main Module” on page 97
4 System controls and indicators “Front Panel Controls and LEDs” on page 29
5 Processor modules (2) “Servicing Processor Modules” on page 57
6 System chassis
7 Rear chassis subassembly (RCSA) “Servicing the Rear Chassis Subassembly” on page 183
8 Fan modules (5) “Servicing Fan Modules” on page 145
9 PCIe carriers (16) “Servicing PCIe Cards” on page 151
10 Rear I/O module “Servicing the Rear I/O Module” on page 173
11 Power supplies (2) “Servicing Power Supplies” on page 135
Related Information
■
“Rear Panel Components” on page 15
