Fan Module LED
146 SPARC T5-4 Server Service Manual • July 2016
Part Description
2 Fan module 1
3 Fan module 2
4 Fan module 3
5 Fan module 4
Related Information
■
“Determine Which Fan Module Is Faulty” on page 146
■
“Remove a Fan Module” on page 147
■
“Install a Fan Module” on page 149
■
“Verify a Fan Module” on page 150

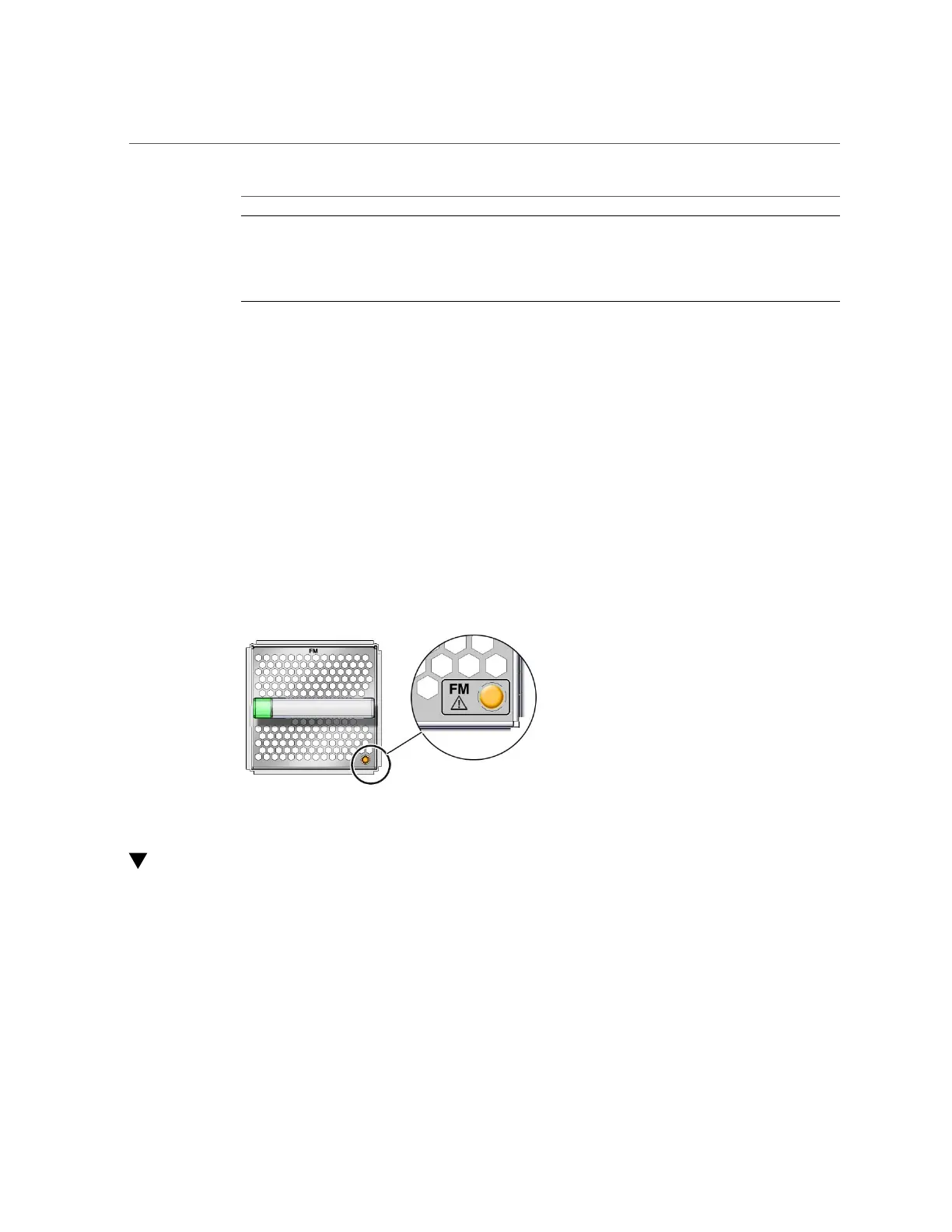

Fan Module LED
Each fan module has a single Service Required LED.
Determine Which Fan Module Is Faulty
The following LEDs are illuminated when a fan module fault is detected:
■
System Service Required LEDs on the front panel and rear I/O module
■
Server Fan Fail LED on the front panel
■
Service Required LED on the faulty fan module
1.
Determine if the System Service Required LEDs are illuminated on the front
panel or the rear I/O module.
