Main Module Components
Identifying Components 19

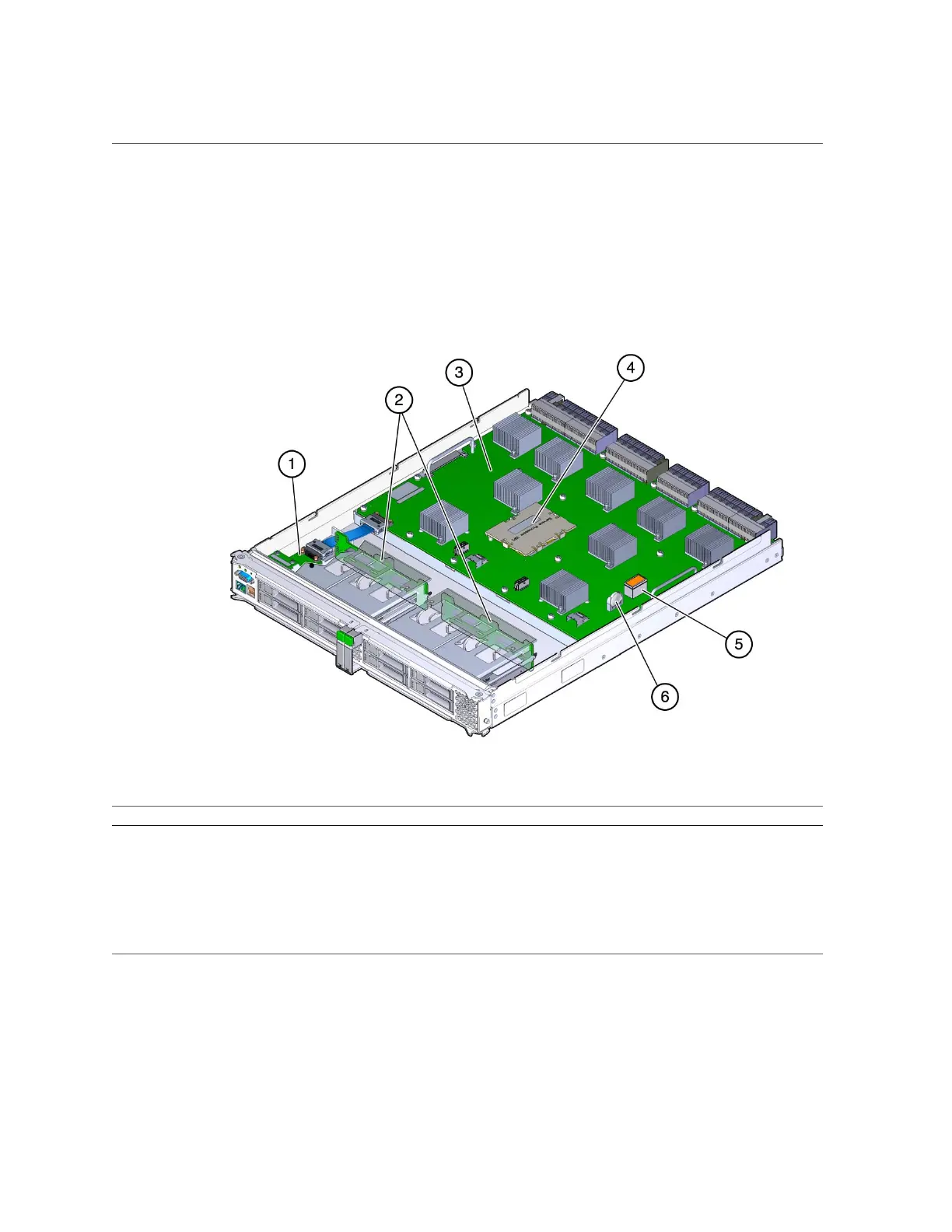

Main Module Components
These components are accessible after you remove the main module from the front of the
server.
No. Description Links
1 Front I/O assembly and cables “Servicing the Front I/O Assembly” on page 131
2 Storage backplanes “Servicing the Storage Backplanes” on page 107
3 Main module motherboard
4 Service processor card “Servicing the Service Processor Card” on page 115
5 System configuration PROM “Servicing the System Configuration PROM” on page 121
6 System battery “Servicing the System Battery” on page 125
Related Information
■
“Front Panel Components” on page 14
■
“Component Service Task Reference” on page 20
