PCIe Carrier Handle and LEDs
156 SPARC T5-4 Server Service Manual • July 2016
You may populate the PCIe slots in a different order to satisfy LDom or redundant failover
considerations, but load balancing might not be as efficient. For example, you may distribute
PCIe cards evenly across available root complexes.
If you are reviewing PCIe installation order after adding a second processor module, return to
“Server Upgrade Process” on page 57.
Related Information
■
“Server Upgrade Process” on page 57
■
“Understanding PCIe Root Complex Connections” on page 151
■
“Determine Which PCIe Card Is Faulty” on page 157
■
“Remove a PCIe Card” on page 161
■
“Install a PCIe Card” on page 163
■
“Verify the PCIe Card” on page 170

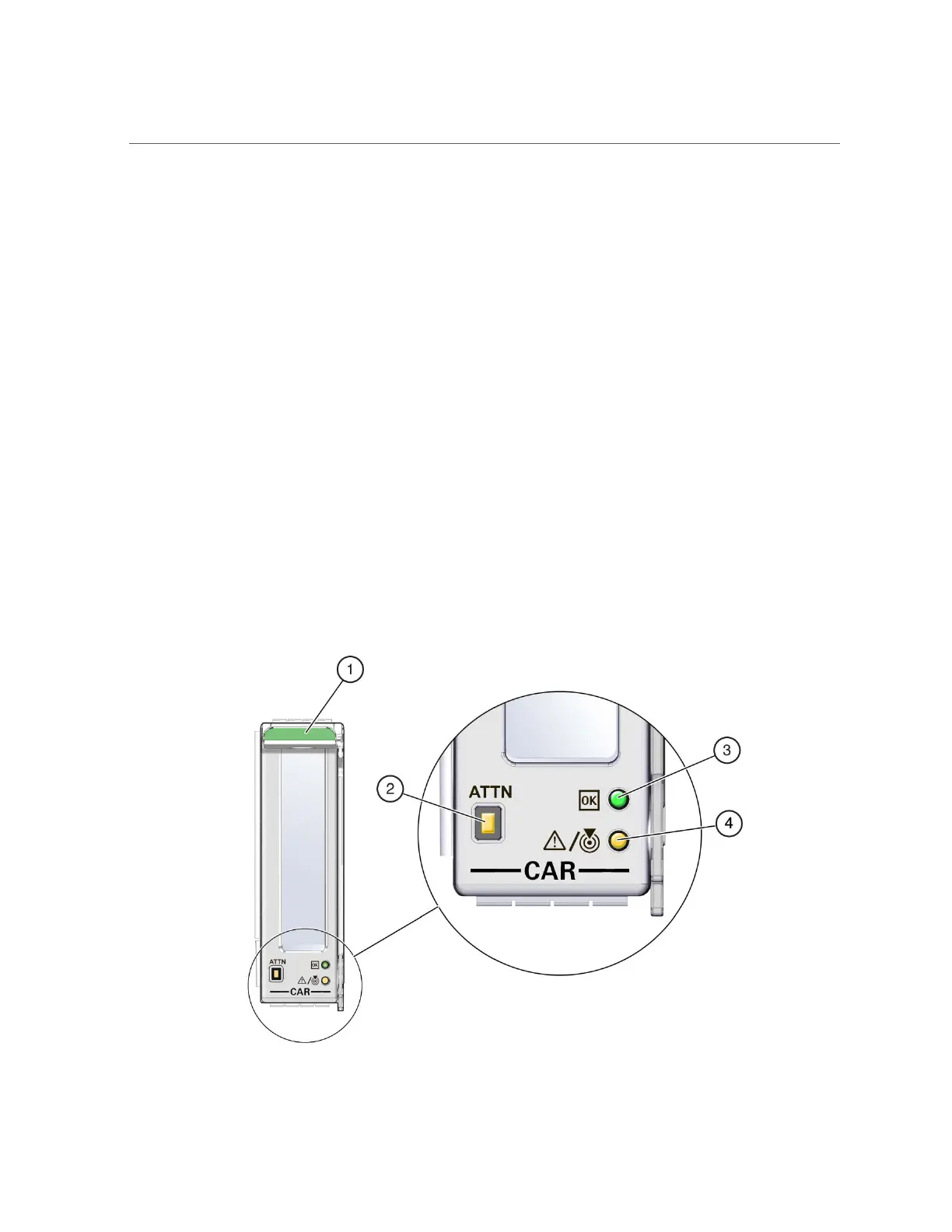

PCIe Carrier Handle and LEDs
