Install the Rear I/O Module

178 SPARC T5-4 Server Service Manual • July 2016

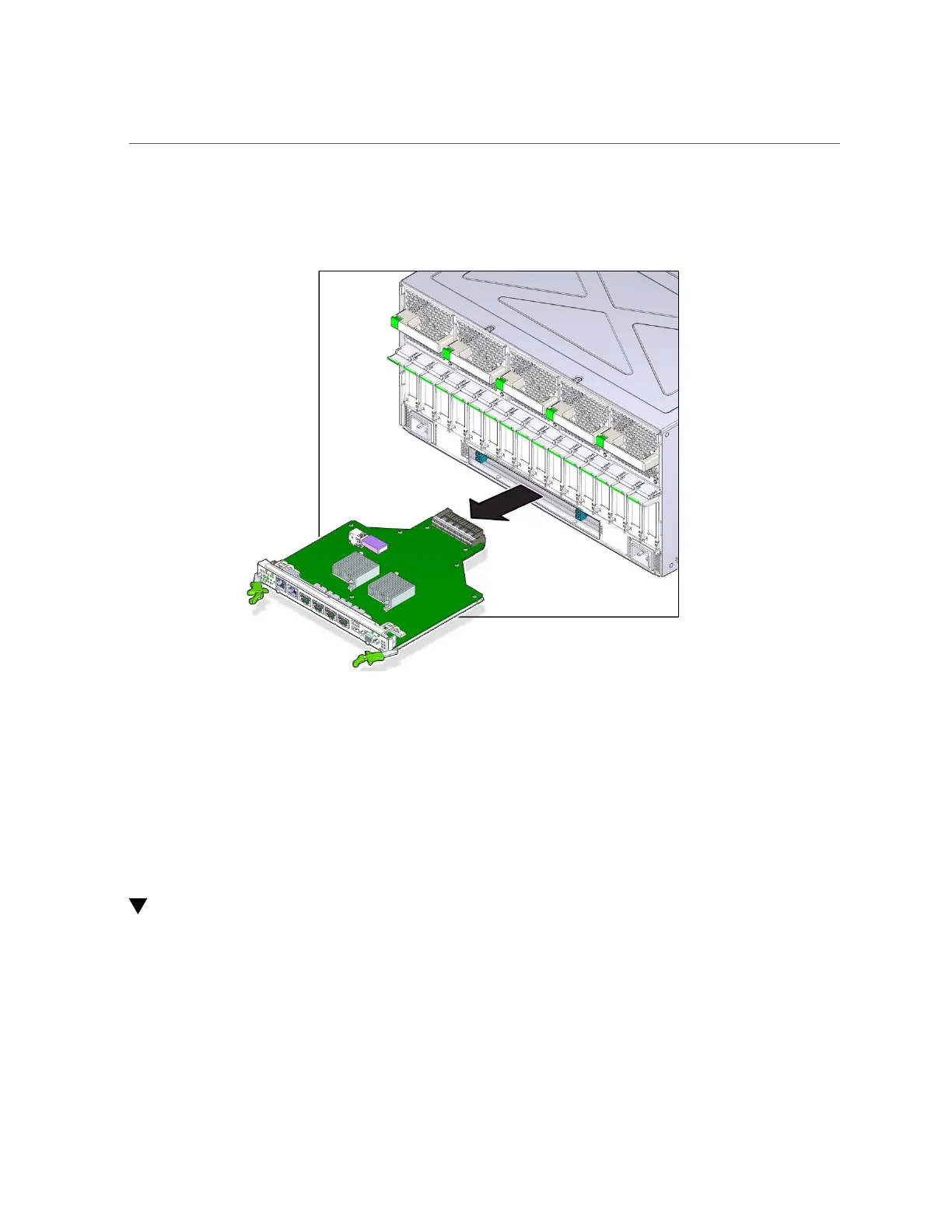

Pull the module away from the server to remove it.

Related Information

■

“Preparing for Service” on page 45

■

“Rear I/O Module LEDs” on page 173

■

“Determine if the Rear I/O Module Is Faulty” on page 175

■

“Install the Rear I/O Module” on page 178

■

“Verify the Rear I/O Module” on page 180

Install the Rear I/O Module

Take the necessary ESD precautions.

See “Prevent ESD Damage” on page 54.
