Rear Panel Components
Identifying Components 15
■
“Servicing Processor Modules” on page 57
■
“Servicing Power Supplies” on page 135

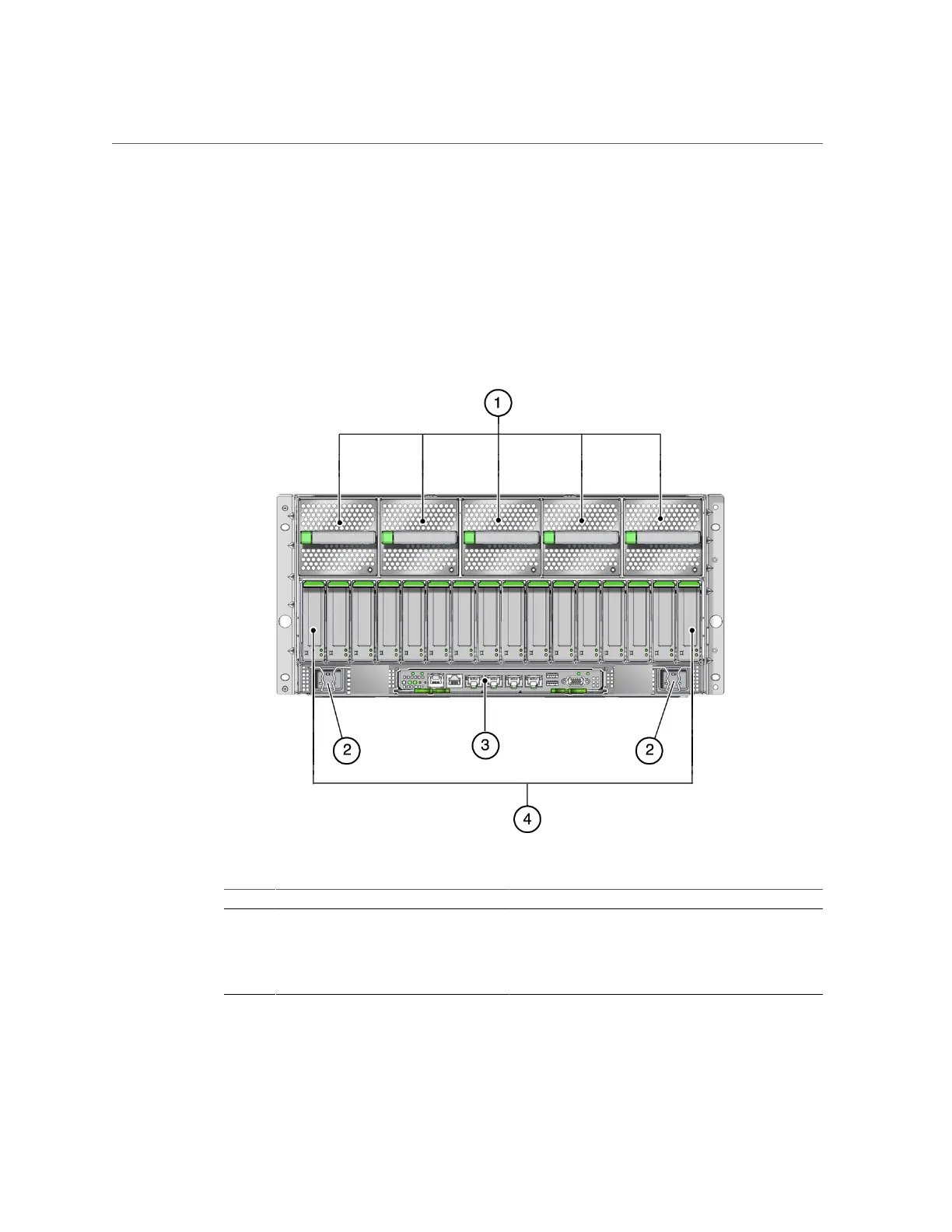

Rear Panel Components
No. Description Links
1 Fan modules (5) “Servicing Fan Modules” on page 145
2 AC power connectors (2) “Preparing for Service” on page 45
3 Rear I/O module “Servicing the Rear I/O Module” on page 173
4 PCIe carriers (16) “Servicing PCIe Cards” on page 151
These components are accessible within the rear chassis subassembly, which you can access
after you have removed all the components from the rear of the server.
