Power Supply and AC Power Connector LEDs

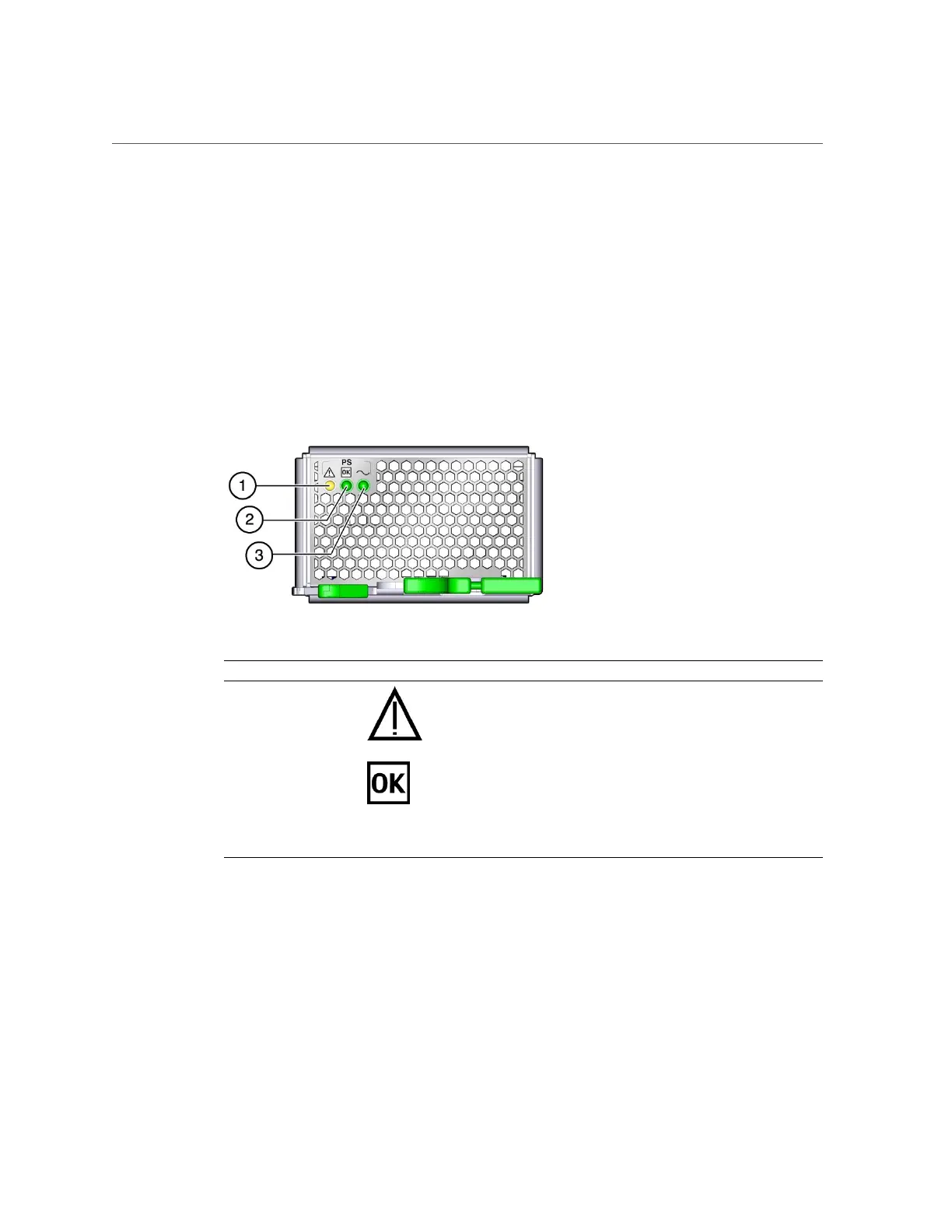

Each power supply is provided with a set of three LEDs, which are located at the front of the
server.
No. LED Icon Description
1 Fault
(amber)
illuminates when the power supply is faulty.
Note - The front and rear panel Service Required LEDs are also
illuminated if the server detects a power supply fault.
2 OK (green) Lights when the power supply DC voltage from the PSU to the server is
within tolerance.
3 AC Present
(green)
~AC
Lights when AC voltage is applied to the power supply.
Each AC power connector has a single LED that is located on the rear I/O module (See
“Interpreting LEDs” on page 28).
