Power Supply and AC Power Connectors

136 SPARC T5-4 Server Service Manual • July 2016

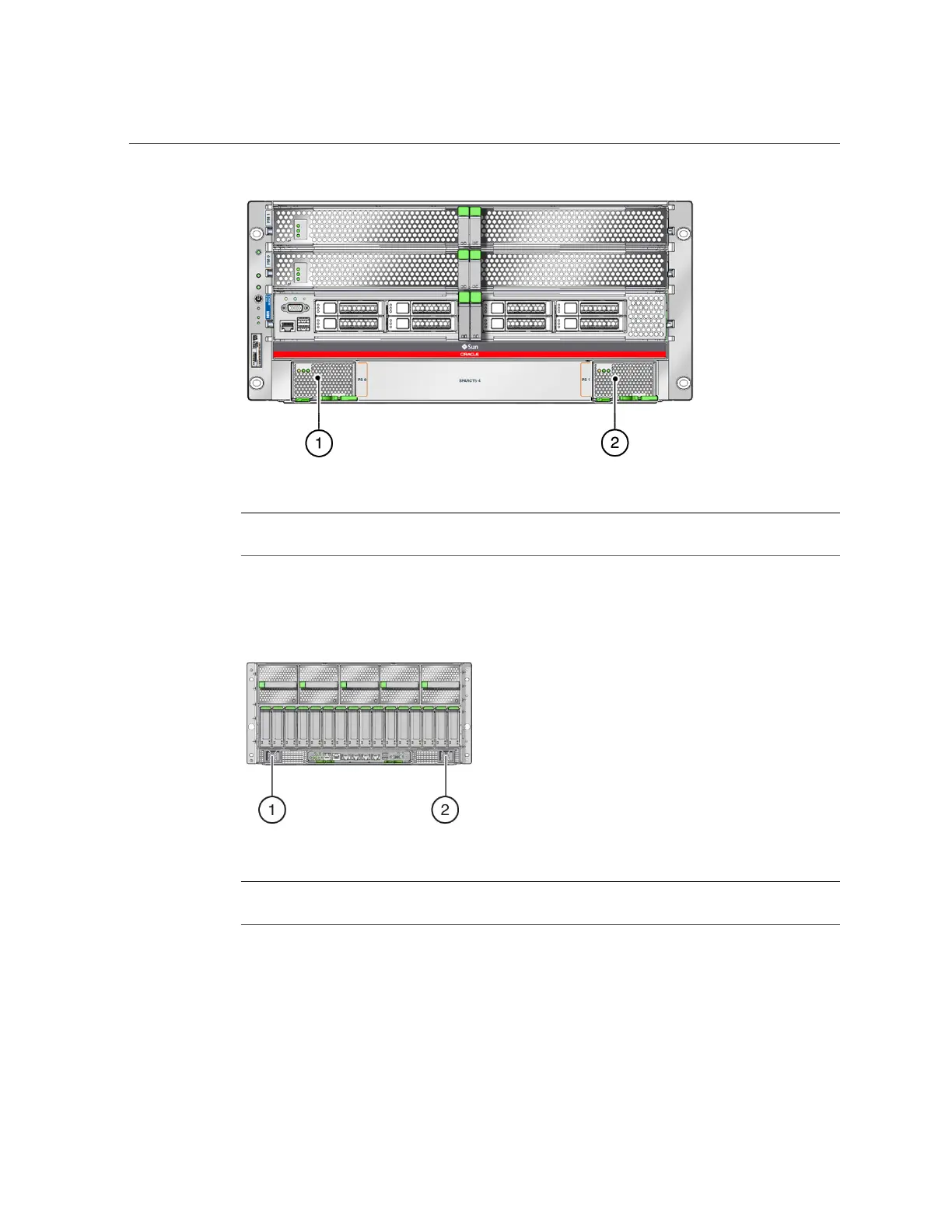

1 Power Supply 0 (PS0)

2 Power Supply 1 (PS1)

Power cords are accessed from the rear of the server.

1 Connector for Power Supply 1 (PS1)

2 Connector for Power Supply 0 (PS0)

Related Information

■

“Power Supply and AC Power Connector LEDs” on page 137

■

“Determine Which Power Supply Is Faulty” on page 138

■

“Remove a Power Supply” on page 138
