Install the Front I/O Assembly
134 SPARC T5-4 Server Service Manual • July 2016
See “Prevent ESD Damage” on page 54.
2.
Insert the front I/O assembly into position in the main module.
a.

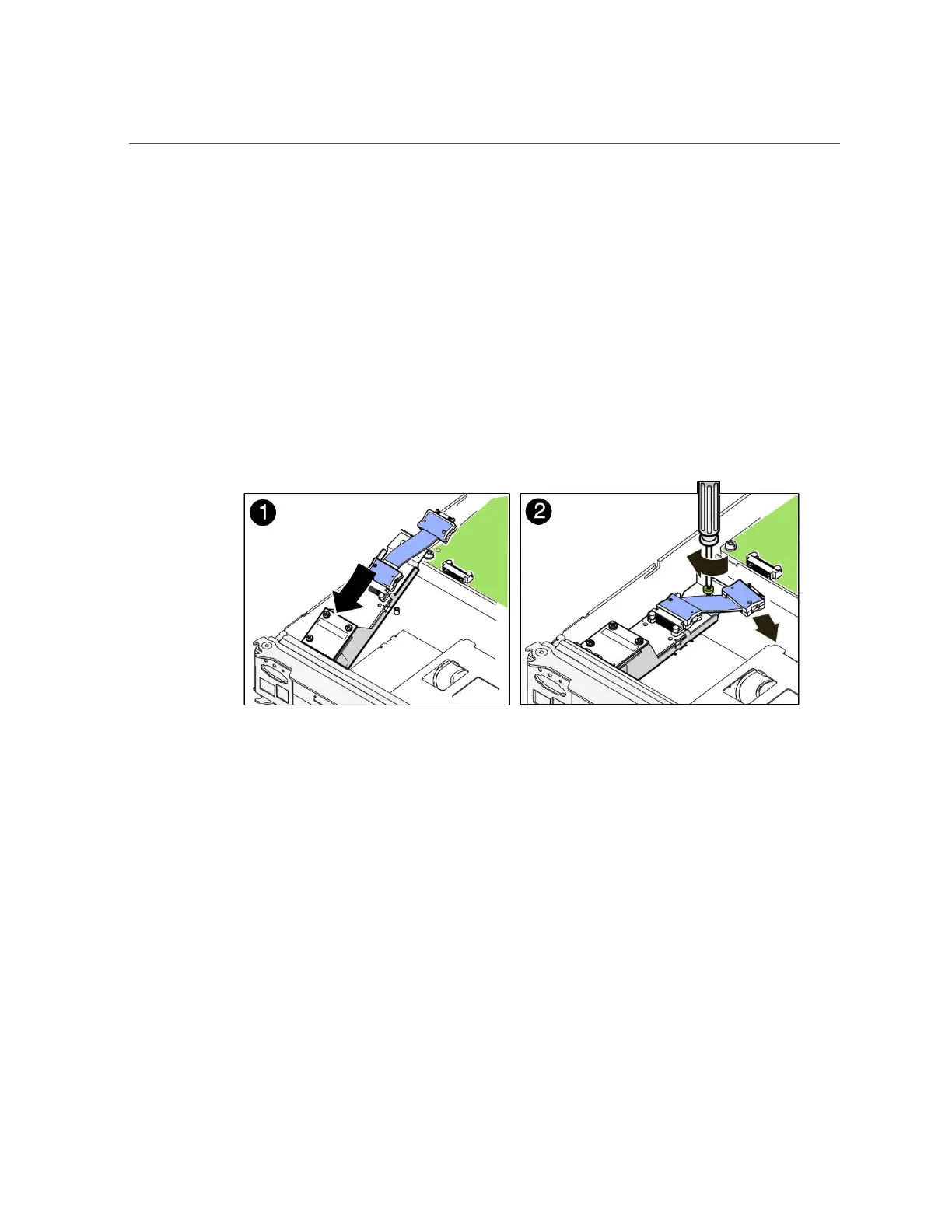

Gently slide the front I/O assembly into position with the ports inserted into
the port holes in the front of the main module (panel 1).
b.
Lower the rear of the front I/O assembly so that the captive screw is aligned
with the screw hole on the motherboard and tighten the screw (panel 2).
c.
Connect the assembly's ribbon cable to the connector on the motherboard
(panel 3).
Related Information
■
“Front I/O Assembly Reference” on page 131
■
“Remove the Front I/O Assembly” on page 131
