Remove a Fan Module

148 SPARC T5-4 Server Service Manual • July 2016

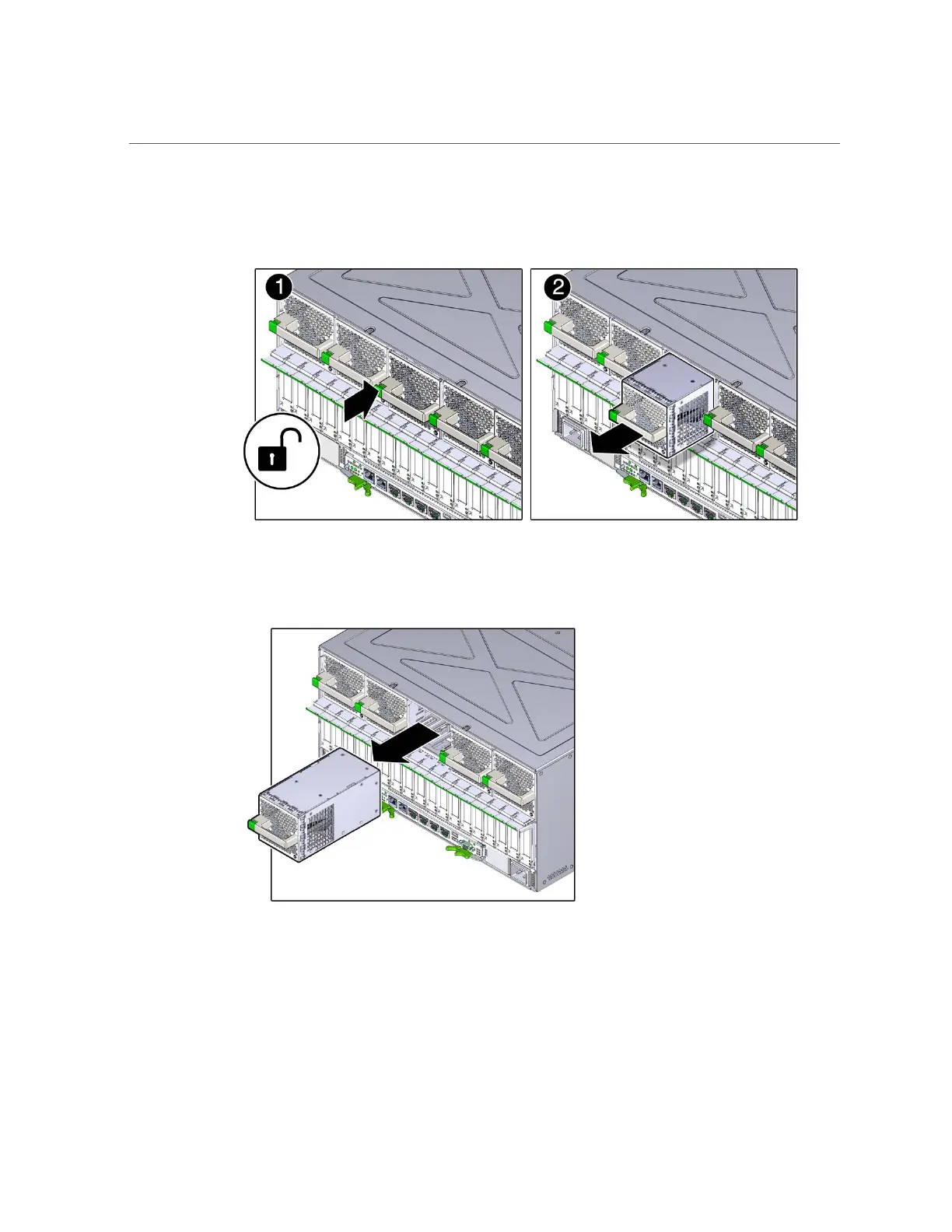

Press the green button to disengage the fan module from the chassis.

Pull the fan module out of the server.

Related Information

■

“Fan Module Locations” on page 145

■

“Determine Which Fan Module Is Faulty” on page 146

■

“Install a Fan Module” on page 149

■

“Verify a Fan Module” on page 150
