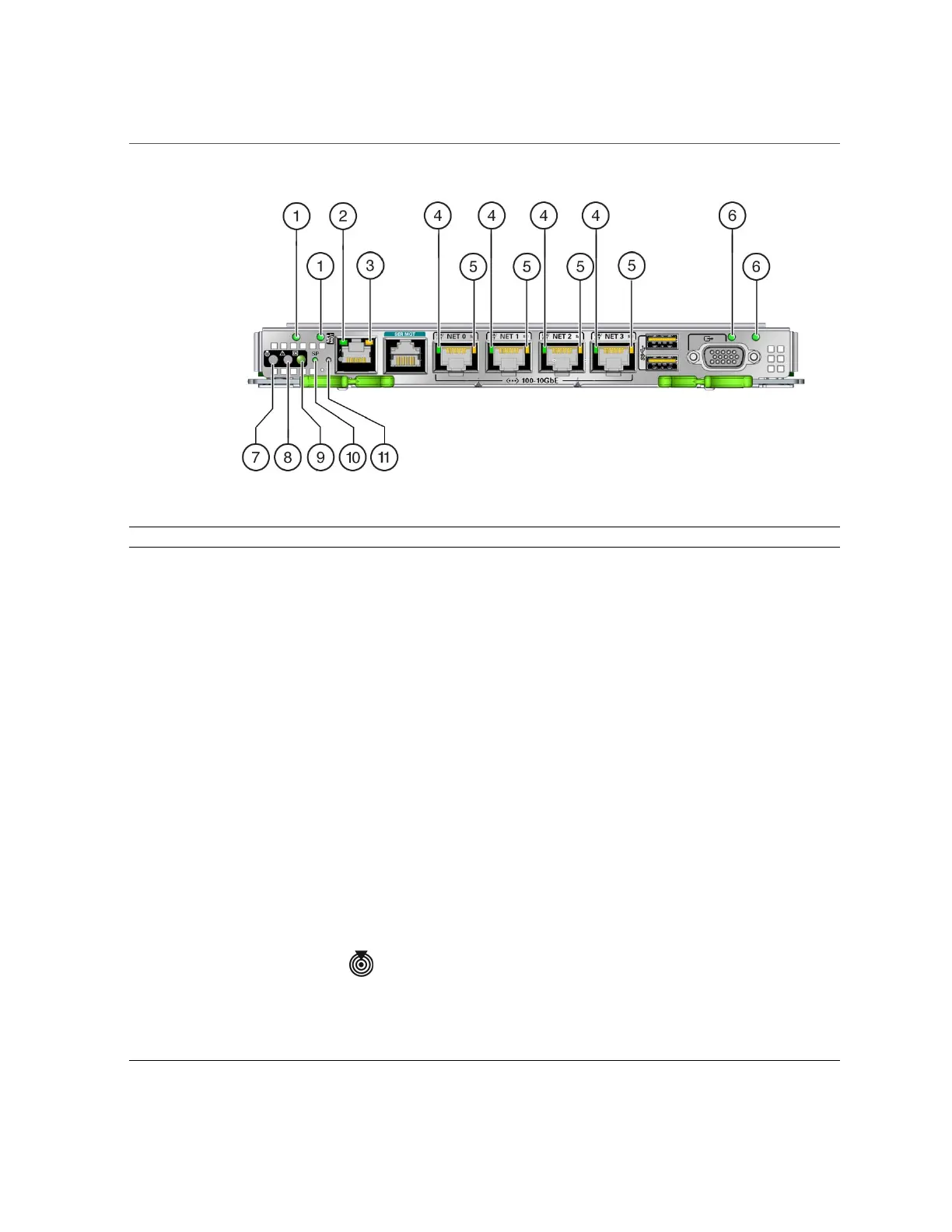

Rear I/O Module LEDs
174 SPARC T5-4 Server Service Manual • July 2016
No. LED Icon Description
1 AC1 connector LED Indicates the state of the AC connector. Green indicates that the AC
connector is functioning correctly. Amber indicates a fault with PSU1.
1 (Unused) This LED has no function.
2 NET MGT link and activity
LED (green)
Indicates the following conditions:
■ On or blinking – A link is established.
■ Off – No link is established.
3 NET MGT speed (green) Indicates the following conditions:
■ Blinking – A link is established.
■ Off – No link is established.
4 NET link and activity (green) Indicates the following conditions:
■ On – A link is established.
■ Blinking – Transfer activity is present on the link.
■ Off – No link is established.
5 NET speed (amber/green) Indicates the following conditions:
■ Green on – The link is operating as a 100-Mbps connection.
■ Off – There is no link.
6 (Unused) This LED has no function.
6 AC0 connector LED Indicates the state of the AC connector. Green indicates that the AC
connector is functioning correctly. Amber indicates a fault with PSU 0.
7 System Locator LED and
button(white)
The Locator LED can be turned on to identify a particular server. When
on, it blinks rabidly. There are two methods for turning a Locator LED
on:
■
Issuing the Oracle ILOM command set /System/
Locator_indicator=on
■ Pressing the Locator button
