Chapter 7 Appendix — Installing the Interface Board (optional)
322 - ENGLISH
How to remove the Interface Board

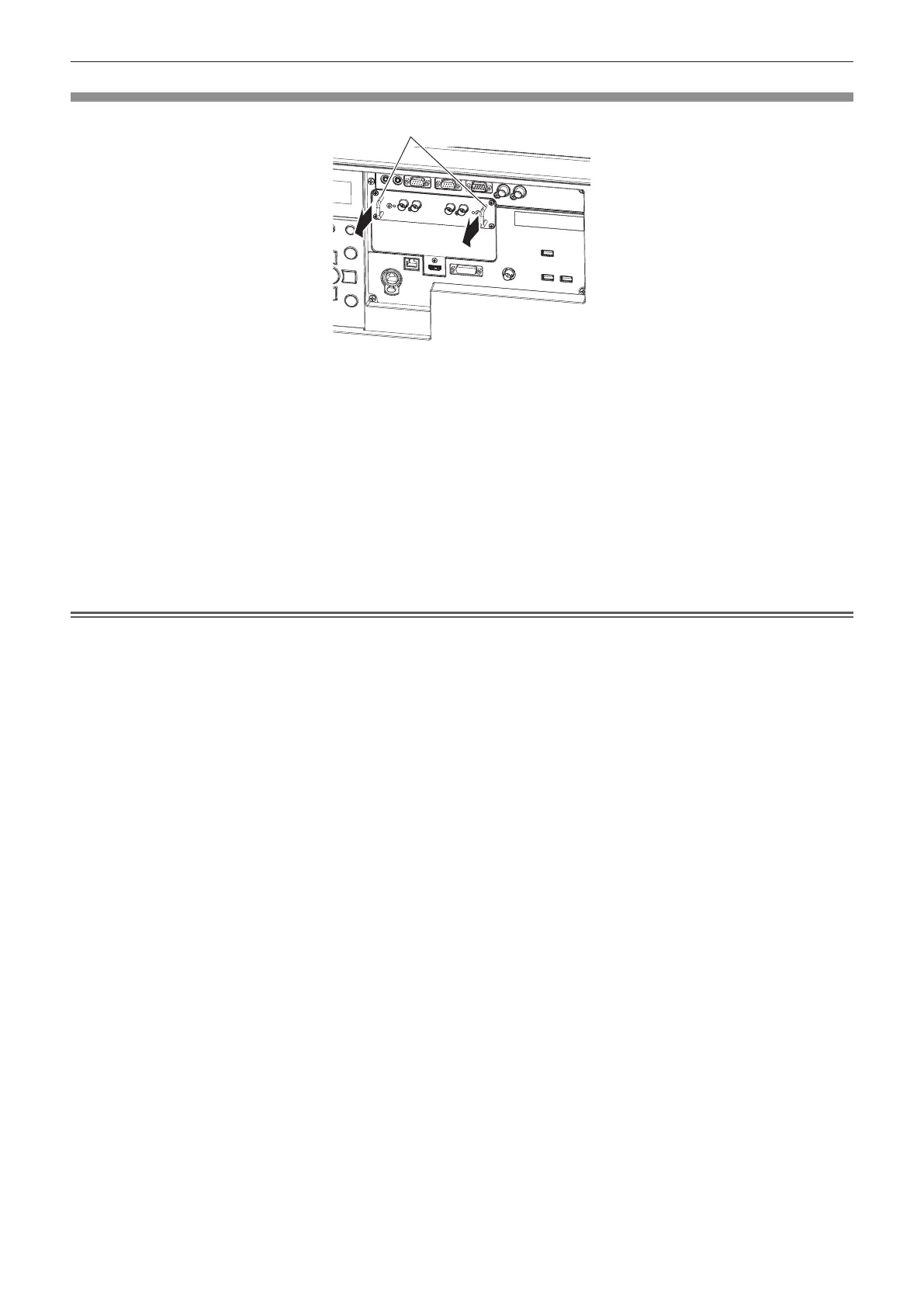

Fig. 1
Handle
1) Remove the Interface Board. (Fig. 1)
f Remove the four screws xing the Interface Board by rotating counterclockwise with a Phillips screwdriver.
The removed screws are used to x the slot cover.
f Hold the handle of the Interface Board and remove it slowly.
2) Attach the slot cover.
f Attach the stored slot cover, and tighten and x with the four screws removed in Step 1).
f To replace with other Interface Board, attach the Interface Board following the procedure in “How to install
the Interface Board” (x page 321).
Attention
f Always attach the slot cover on the blank slot.
f Store the removed Interface Board inside an antistatic bag.
