Panasonic DLP PT-RZ34K

Chapter 2 Getting Started — Attaching/removing the projection lens (optional)
ENGLISH - 57
Attaching the projection lens
Attach the projection lens using the following procedure. Start from Step 3) when the lens hole cover is already
removed.

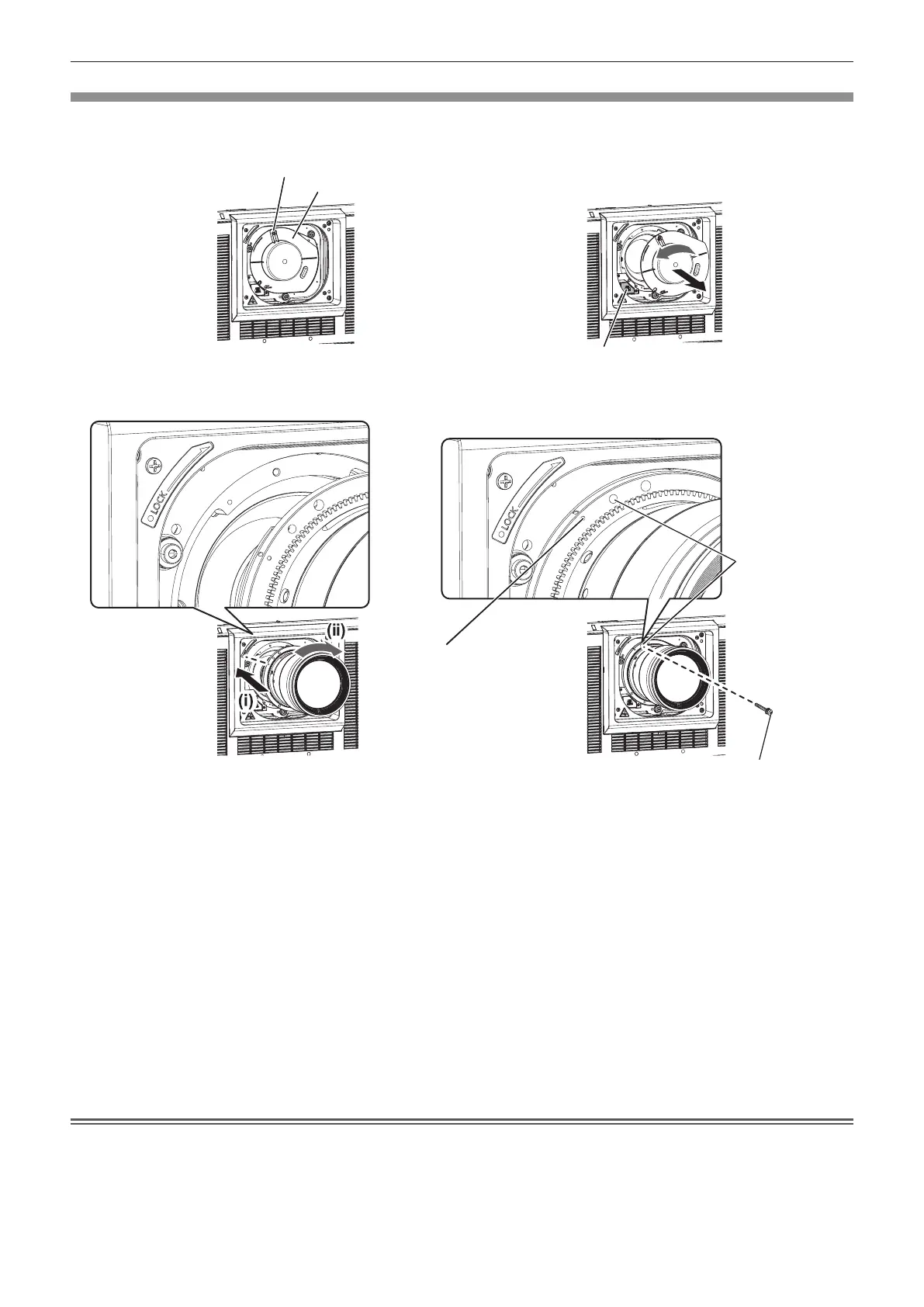

Mark (orange)
Fig. 3 Fig. 4
Fig. 1 Fig. 2
Screw hole A
Lens fixing screw
Screw
Lens hole cover
Lens release button
1) Loosen the screw fixing the lens hole cover. (Fig. 1)
f Use a Phillips screwdriver to turn the screw xing the lens hole cover counterclockwise until it turns freely.
2) Remove the lens hole cover. (Fig. 2)
f While pressing the lens release button, turn the lens hole cover counterclockwise until the mark on the lens
hole cover (E) aligns with the mark on the projector (E on the left side of LOCK).
3) Insert the projection lens by aligning the mark on the projection lens (orange) with the mark on the
projector (E on the left side of LOCK) and turn clockwise until it clicks. (Fig. 3)
4) Secure the projection lens with the supplied lens fixing screw. (Fig. 4)
f Use a Phillips screwdriver to secure it in screw hole A located to the right of mark on the projection lens
(orange).
f Some projection lenses may not have a screw hole A for securing the projection lens.
Attention
f Turn the projection lens counterclockwise to conrm that it does not come out.
f Store the removed lens hole cover in a safe place.
f After attaching the projection lens, turn on the projector and conrm the [LENS TYPE] setting. Change the setting if the type is different from
the projection lens attached to the projector. (x page 84)
Continue to execute the lens calibration after conrming the [LENS TYPE] setting. (x page 85)
