Chapter 2 Getting Started — Setting up
ENGLISH - 41

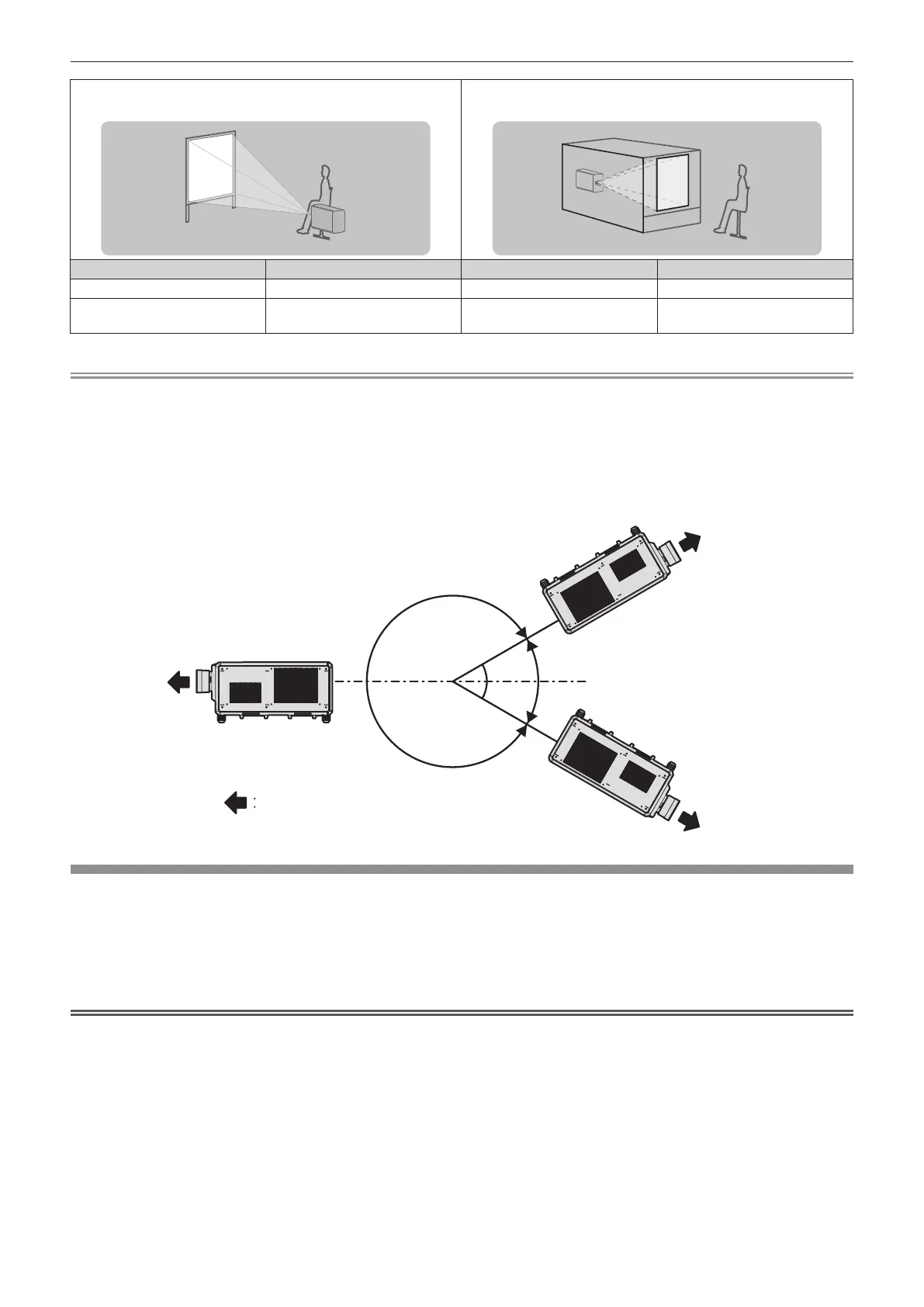

Portrait setting and projecting forward Portrait setting and projecting from the rear
(Using the translucent screen)
Menu item Setting value Menu item Setting value
[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]
[FLOOR/CEILING]
Set in accordance with the image
to project.
[FLOOR/CEILING]
Set in accordance with the image
to project.
Note
f In the portrait setting, the on-screen menu is displayed sideways.
To display the on-screen menu vertically, change the [OSD ROTATION] setting in the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY]
(x page 158).
f The projector has a built-in angle sensor. The attitude of the projector is automatically detected by setting [FLOOR/CEILING] to [AUTO] in
the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
r Angle sensor
The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows.
30°
30°
Floor standing installation
Floor standing installation
Projection direction
Ceiling mount installation
Projected image and throw distance
Install the projector referring to the projected image size, projection distance, etc.
When the Zoom Lens (Model No.: ET-D3LEW200), the Fixed-focus Lens (Model No.: ET-D3LEU100,
ET-D75LE95), or the Fisheye Lens (Model No.: ET-D3LEF70) is used, the projection relation between the
screen and the projector differs from that of other lenses. For details, refer to “ET-D3LEU100, ET-D3LEW200”
(x page 43), “ET-D75LE95” (x page 44), or “ET-D3LEF70” (x page 45).
Attention
f Before setting up, read “Precautions for use” (x page 21).
f When the Fixed-focus Lens (Model No.: ET-D75LE95) is used, install the projector so that its back plane is parallel to the screen, making
the projected image rectangular.
The vertical keystone distortion in moderate range can be corrected with the [POSITION] menu → [GEOMETRY] → [KEYSTONE] →
[VERTICAL KEYSTONE] (x page 115) even after the projector is installed. For the range that can be corrected, refer to “[GEOMETRY]
projection range” (x page 47).
f Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the
projection lens surface.
To Next Page
