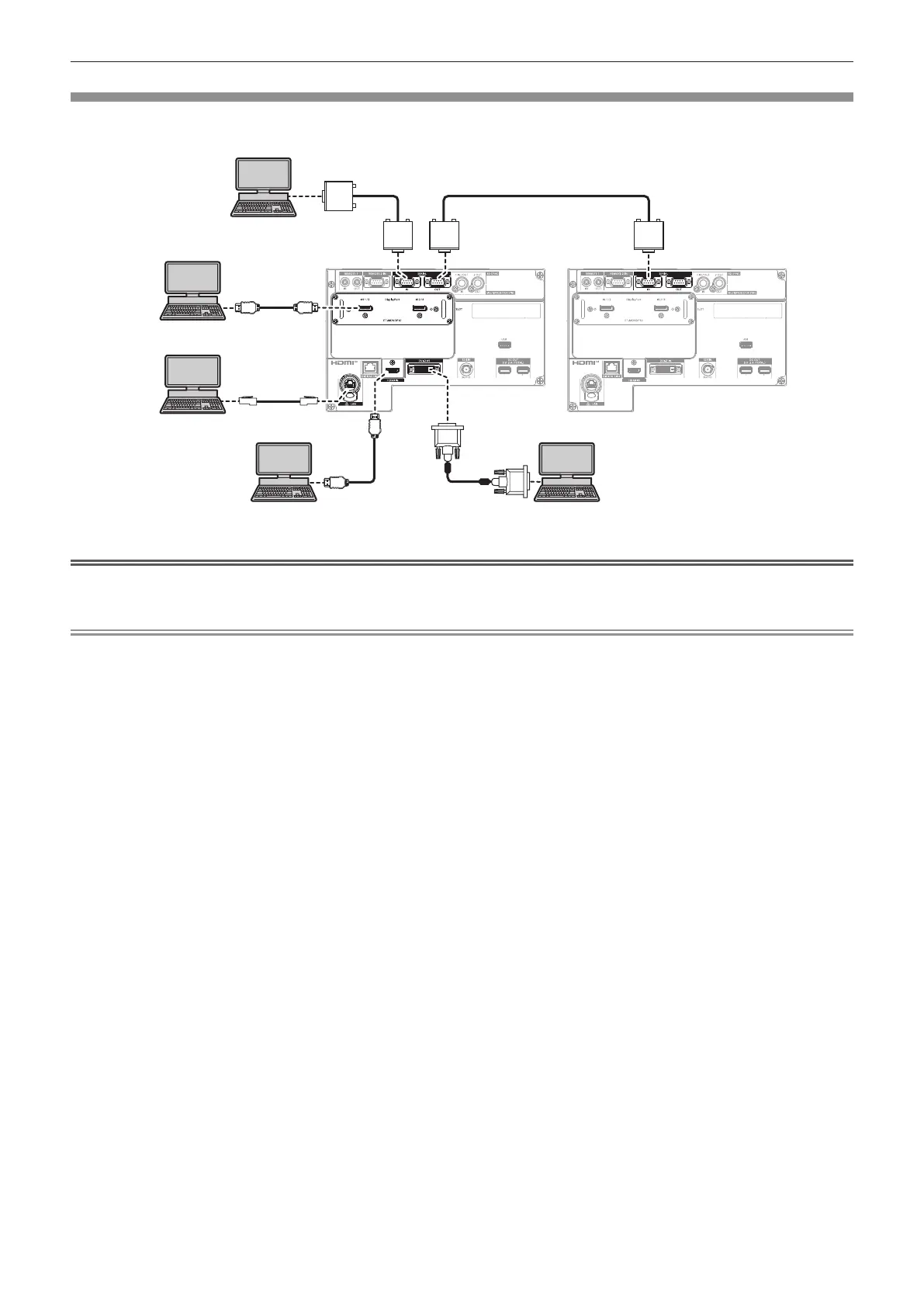

Connecting example: Computers
This is an example when the optional Interface Board for DisplayPort 2 input (Model No.: ET-MDNDP10) is
installed in <SLOT>.
Computer
Control computer
Computer
Computer
Control computer
Attention
f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially
available shielded cables.
Note
f Setting the [DISPLAY OPTION] menu → [SLOT IN] is required depending on the connected external device or the input signal.
f For the DisplayPort cable, use a DisplayPort cable that conforms to the DisplayPort standards. When a cable that does not conform to the
DisplayPort standards is used, images may be interrupted or may not be projected.
f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. However, when the following 4K video signal
exceeding the supported transmission speed of the HDMI High Speed cable is to be input, use the HDMI cable supporting the high speed
transmission of 18 Gbps such as the one with Premium HDMI cable authentication.
g A video signal with high speciîš¿cation color depth and gradation such as 3840 x 2160/60p 4:2:2/36-bit or 3840 x 2160/60p 4:4:4/24-bit
Images may be disrupted or may not be projected when a video signal exceeding the supported transmission speed of the HDMI cable is
input.
f The <HDMI IN> terminal and the <HDMI IN 1>/<HDMI IN 2> terminals can be connected to the external device with a DVI-D terminal by
using the HDMI/DVI conversion cable. However, this may not function properly for some external devices, and image may not be projected.
f The <DVI-D IN> terminal and the <DVI-D IN 1>/<DVI-D IN 2> terminals support the single link for DVI 1.0. They do not support the dual link
for DVI 1.0.
f If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate
the projector.
