Chapter 2 Getting Started — Connecting
66 - ENGLISH

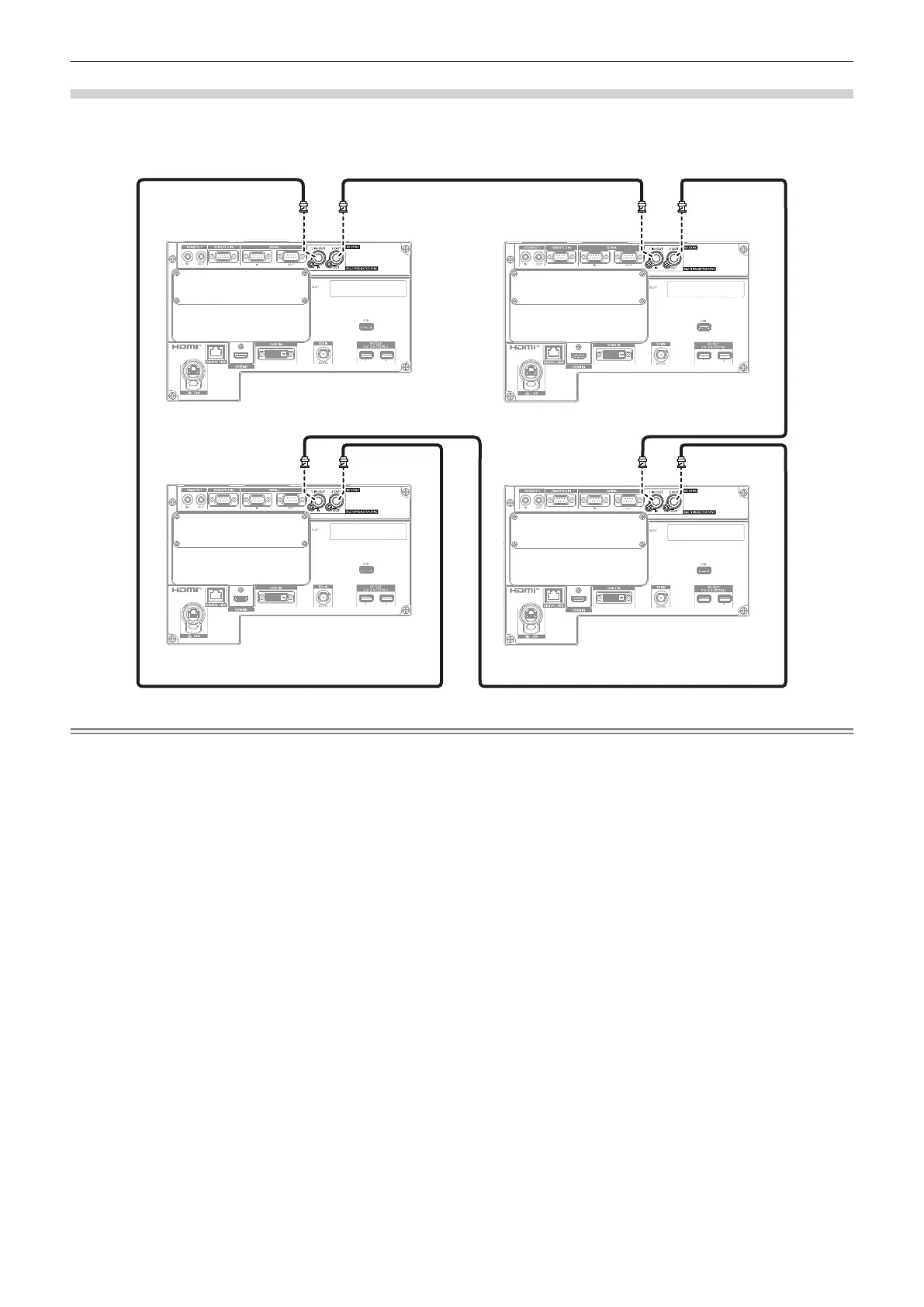

Connecting example
Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast
synchronization function/shutter synchronization function. The number of linked projectors is limited to the
maximum of 64 projectors.
Connecting terminals of the synchronization source
Connecting terminals of the projector to
synchronize
Connecting terminals of the projector to
synchronize
Connecting terminals of the projector to
synchronize
Note
f The contrast synchronization function and the shutter synchronization function can be used simultaneously.
f For details on the settings of the contrast synchronization function and the shutter synchronization function, refer to the [PROJECTOR
SETUP] menu → [MULTI PROJECTOR SYNC] (x page 194).
f The menu items in the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] is the same as the following setting items.
g The [PICTURE] menu → [DYNAMIC CONTRAST] → [USER] → [MULTI PROJECTOR SYNC]
g The [DISPLAY OPTION] menu → [SHUTTER SETTING] → [MULTI PROJECTOR SYNC]
f If there are any projectors which you do not want to synchronize within the linked projectors, set [CONTRAST SYNC] and [SHUTTER
SYNC] to [OFF] individually.
f The shutter synchronization function will operate even when there are different models within the linked projectors. However, the
synchronization function will not operate when there is a DLP projector that is constructed with one DLP chip such as PT-RCQ10 series
within the linked projectors.
