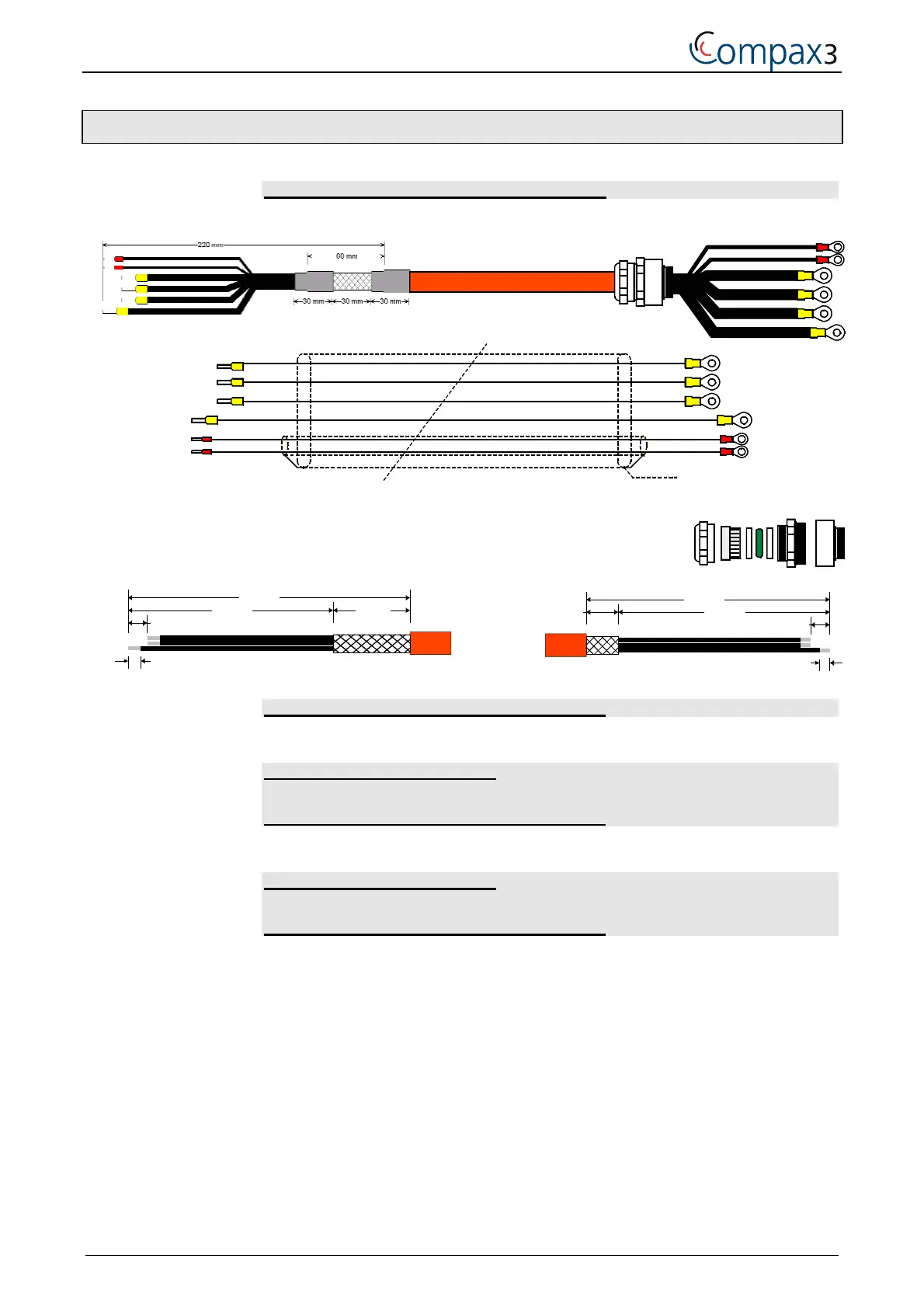

8.4.5. Motor cable for terminal box
MOK61/..: (max. 32.3A) cable chain compatible
Cable: 4x6mm
2
+ 2x1mm
2
PE
Bremse/
Brake
W
V
U
U1
V2
W3
BR1
BR2
gn/ye
PE
Br-
Br+
W
V
U
U1
V2
W3
BR1
BR2
gn/ye
15 mm
10 mm
220 mm
60 mm160 mm
15 mm
8 mm
190 mm
25 mm 165 mm
0V
+24V
Schirm auf Schirmanbindungselement
Screen at screen contact
MOK62/.. (max. 47.3 A) cable chain compatible
Same structure as MOK61/.. but with 4 x 10mm
2
+ 2 x 1 mm
2
MOK60/.. (max. 13.8A) standard
MOK63/.. (max. 13.8 A) cable chain compatible
Same structure as MOK61/.. but with 6 x 1.5 mm
2
.
MOK59/.. (max. 18.9A) standard
MOK64/.. (max. 18.9 A) cable chain compatible
Same structure as MOK61/.. but with 6 x 2.5 mm
2
.
You will find the length code in the Accessories order code (see on page 106)
