Parker EME
Compax3 Accessories
I11 T11 192-120101 N6 - March 2004 135
8.10 Interface cable
In this chapter you can read about:
RS232 cable.................................................................................................................................135
RS485 cable to Pop......................................................................................................................136
I/O interface X12...........................................................................................................................137
Ref X11 ........................................................................................................................................138
Encoder cable ..............................................................................................................................139

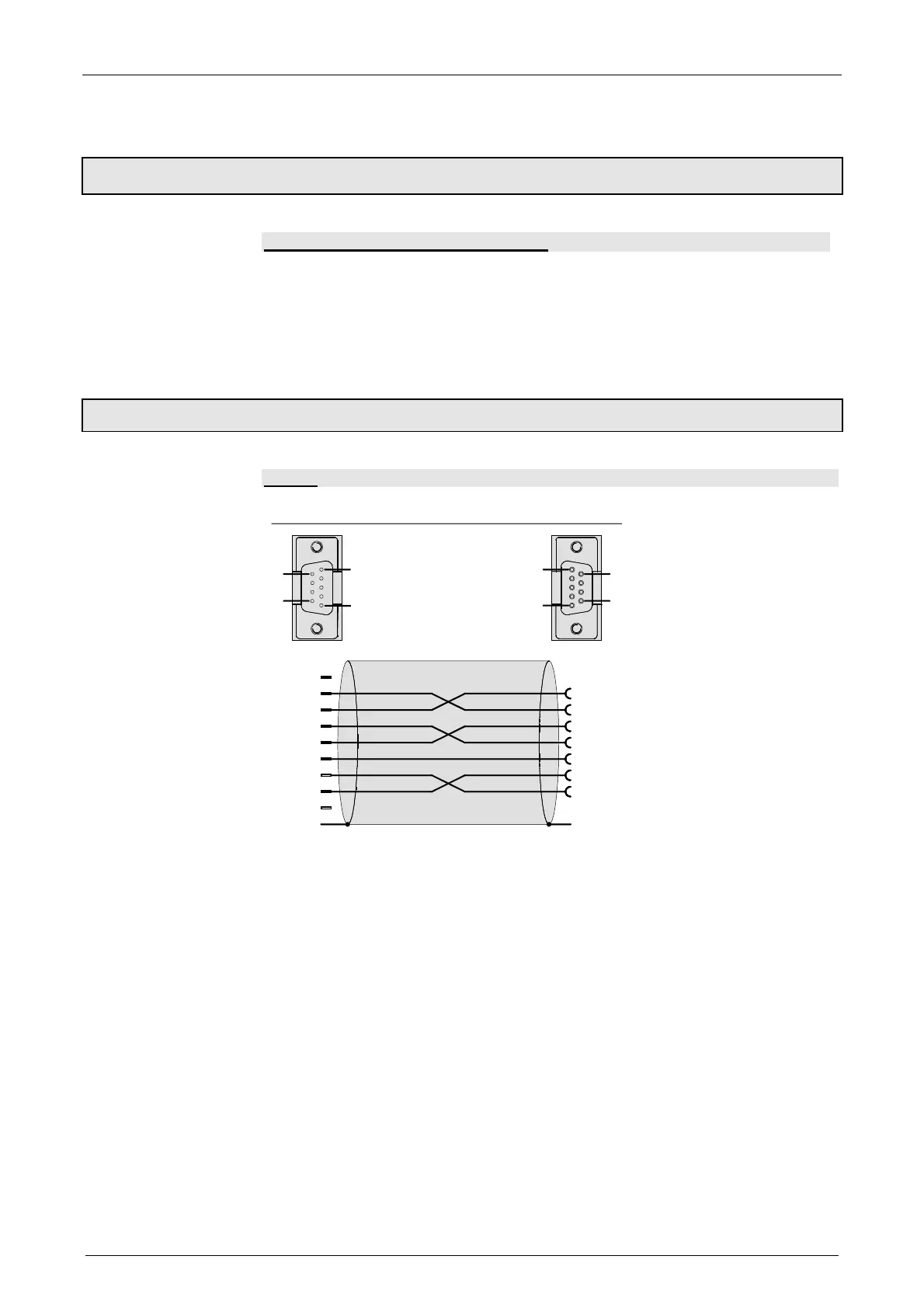

8.10.1. RS232 cable
SSK1/..
--->PC
2
3
4
6
5
7
8
RxD
TxD
DTR
DSR
GND
RTS
CTS
2
3
4
6
5
7
8
RxD
TxD
DTR
DSR
GND
RTS
CTS
9+5V
1n.c.
7 x 0,25mm + Schirm/Shield
1
5
6
9
1
5
6
9
X10 <---
You will find the length code in the Accessories order code (see on page 106)
