Parker Compax3 S150 V4 User Manual

Introduction
8 I11 T11 192-120101 N6 - March 2004

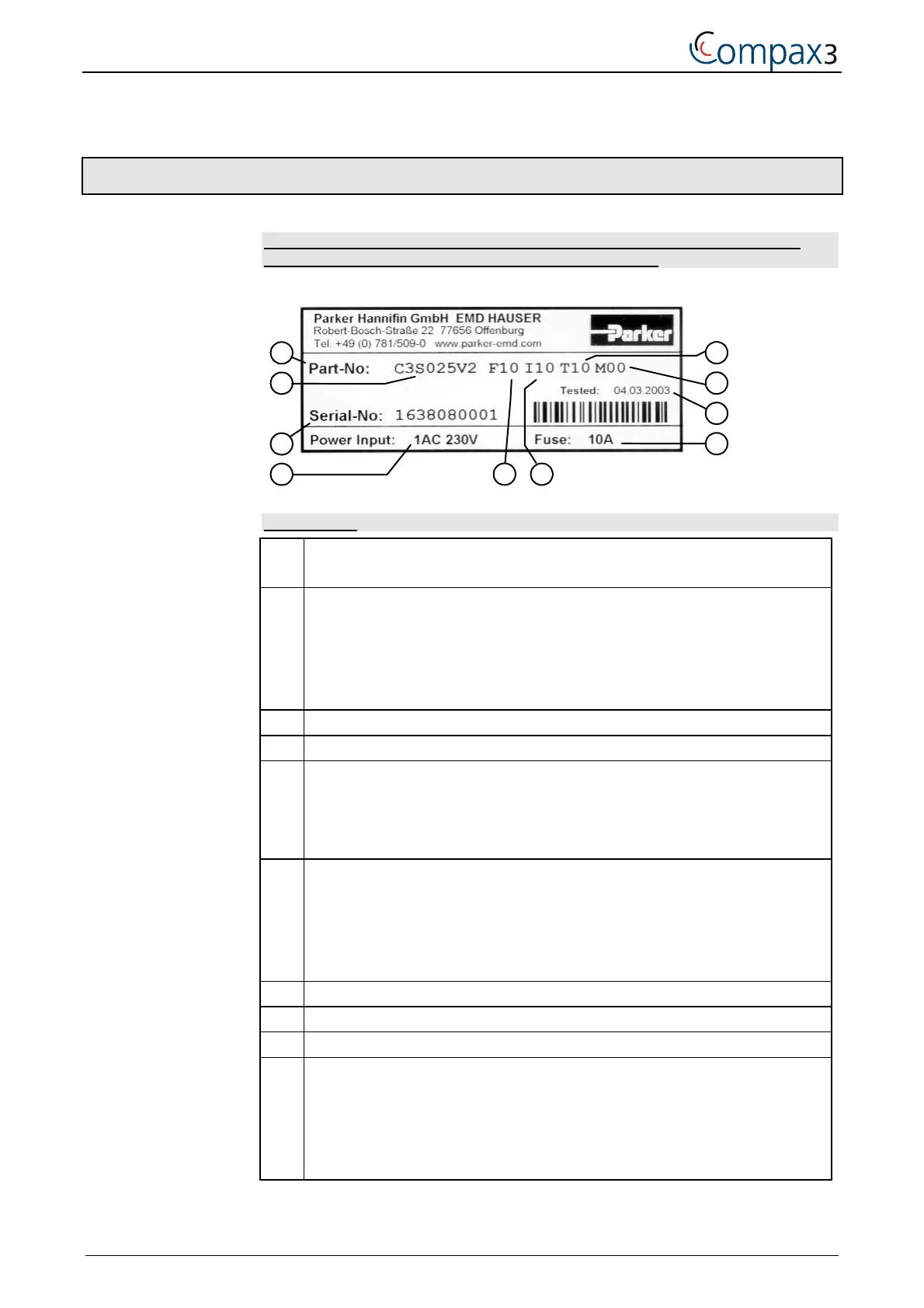

1.2 Type specification plate
You will find the exact description of the device on the type specification
plate, which is located on the right side of the device:
1
2
4
7
8
56
9
10
3
Explanation:
1 Type designation
The complete order designation of the device (2, 5, 6, 10, 9)
2
C3S025V2
C3: Abbreviation for Compax3
S: Single axis device with direct AC mains power supply
025: Device current drain in 100mA (025=2.5A)
V2: 230VAC (single phase); V4: 400VAC (three phase)
3 Unique number of the particular device
4 Nominal power supply voltage of the device
5 Designation of the feedback system
F10: Resolver
F11: SinCos© / Single- or Multiturn
F12: Feedback module for direct drives
6 Device interface
I10: Analog, Step/Direction and Encoder Input
I11: Digital inputs/outputs
I20: Profibus DP
I21: CANopen
7 Corresponding fuse protection
8 Date of factory test
9 Options
10 Technology function
T10: Servo Controller
T11: Positioning
T30: Motion control programmable according to IEC61131-3
T40: Electronic cam control
Compax3 - Type
specification plate:

Parker Compax3 S150 V4 Specifications

General

Output Current	150 A
Control Type	Digital
Series	Compax3
Model	S150 V4
Enclosure Rating	IP20
Communication Interfaces	CANopen, RS-232, RS-485
Feedback Options	Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Relative Humidity	5 to 95% non-condensing
Operating Temperature	0 to +45 °C (32 to 113 °F)
