Parker Compax3 S150 V4 User Manual

Compax3 device description
Conditions of utilization for UL permission
20 I11 T11 192-120101 N6 - March 2004
3.1 Plug and connector assignment Compax3
In this chapter you can read about:
Function of the LEDs on the front panel..........................................................................................21
Power supply plug X1 for 230VAC devices.....................................................................................21
Power supply plug X1 for 400VAC devices.....................................................................................22
Ballast resistor / High voltage supply plug X2 for 230VAC devices .................................................22
Ballast resistor / High voltage supply plug X2 for 400VAC devices .................................................23
Motor / Motor brake (plug X3) .........................................................................................................24
Control voltage 24 VDC / enable (plug X4) .....................................................................................25
RS 232 / RS485 interface (plug X10)..............................................................................................26
Analog / Encoder (Plug X11) ..........................................................................................................27
Digital inputs/outputs (plug X12) .....................................................................................................28
Resolver / Feedback (plug X13)......................................................................................................29

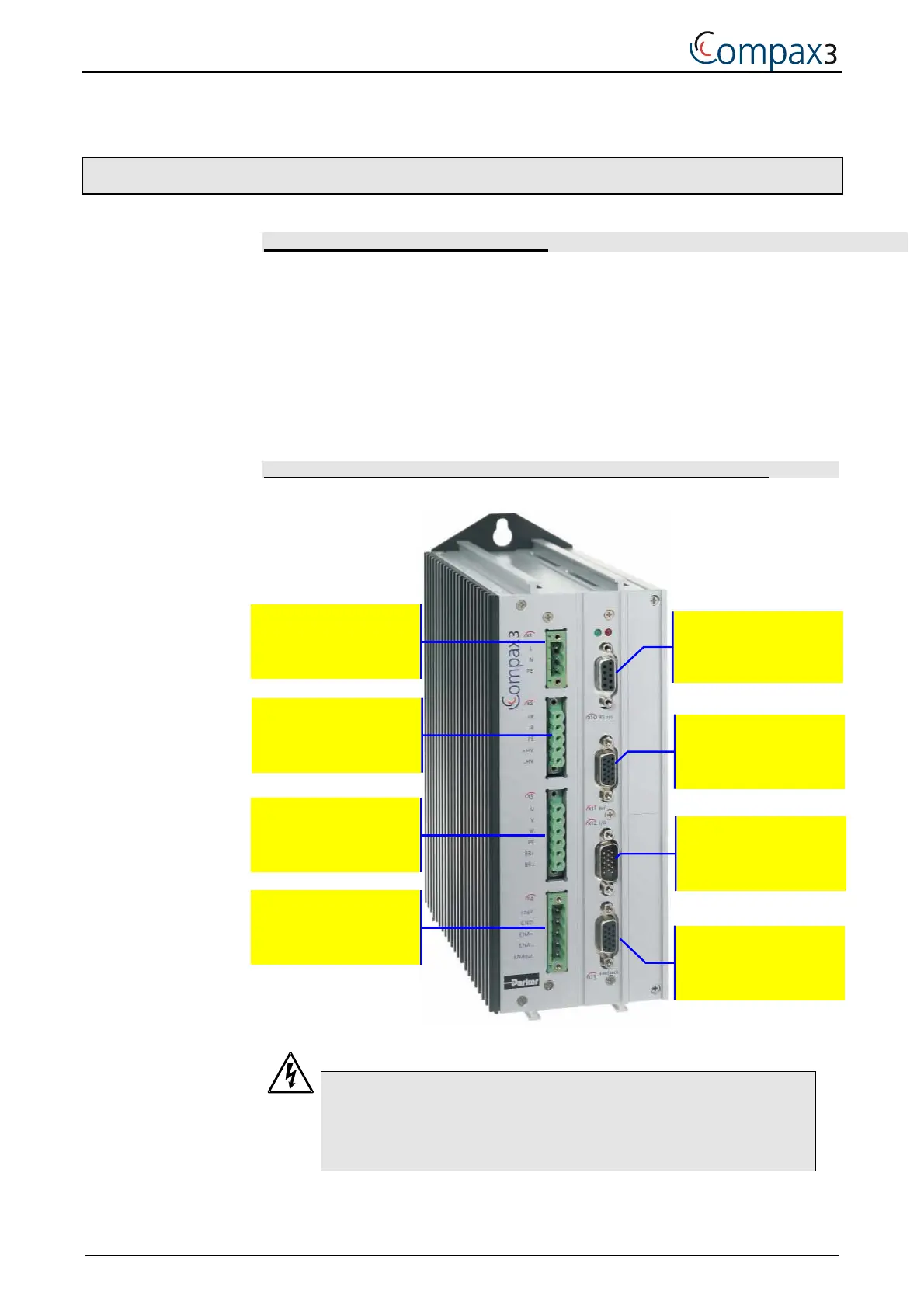

Connection assignment based on the example of Compax3 S025 V2:
Always switch devices off before wiring them!
Dangerous voltages are still present until 5 minutes after
switching off the power supply!
X10
RS232 / RS485
X11
Analog/Encoder
Analog/Encoder
X12
Ein-/Ausgänge
Inputs/Outputs
X13
Geber
Feedback
X1 AC Versorgung
AC supply
X2
Ballast / DC LS
Ballast / DC HV
X3
Motor / Bremse
Motor / Brake
X4
24VDC / Freigabe
24 VDC / Enable

Parker Compax3 S150 V4 Specifications

General

Output Current	150 A
Control Type	Digital
Series	Compax3
Model	S150 V4
Enclosure Rating	IP20
Communication Interfaces	CANopen, RS-232, RS-485
Feedback Options	Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Relative Humidity	5 to 95% non-condensing
Operating Temperature	0 to +45 °C (32 to 113 °F)
