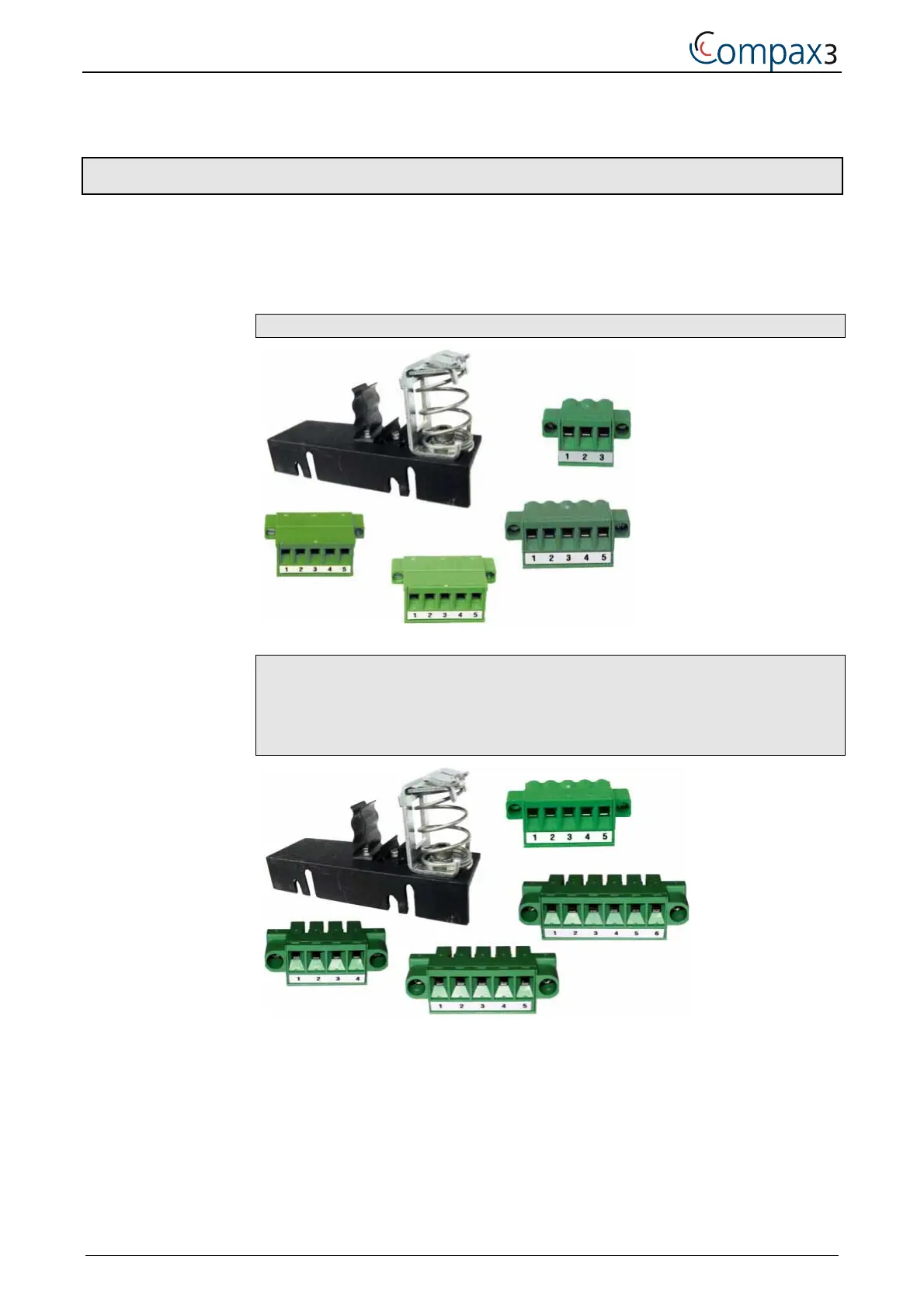

8.9 ZBH plug set
The plug set which is available as accessory comprises:
! a shield terminal with large contact area for the motor cable shield, and
! the mating plug connectors for the Compax3 plug connectors X1, X2, X3, and X4
ZBH02/01: for Compax3 Sxxx V2
ZBH02/02: for Compax3 S038 V4, Compax3 S075 V4 and Compax3
S150 V4
ZBH02/03: for Compax3 S300 V4
