Parker Compax3 S150 V4 User Manual

Parker EME
Setting up Compax3
I11 T11 192-120101 N6 - March 2004 69

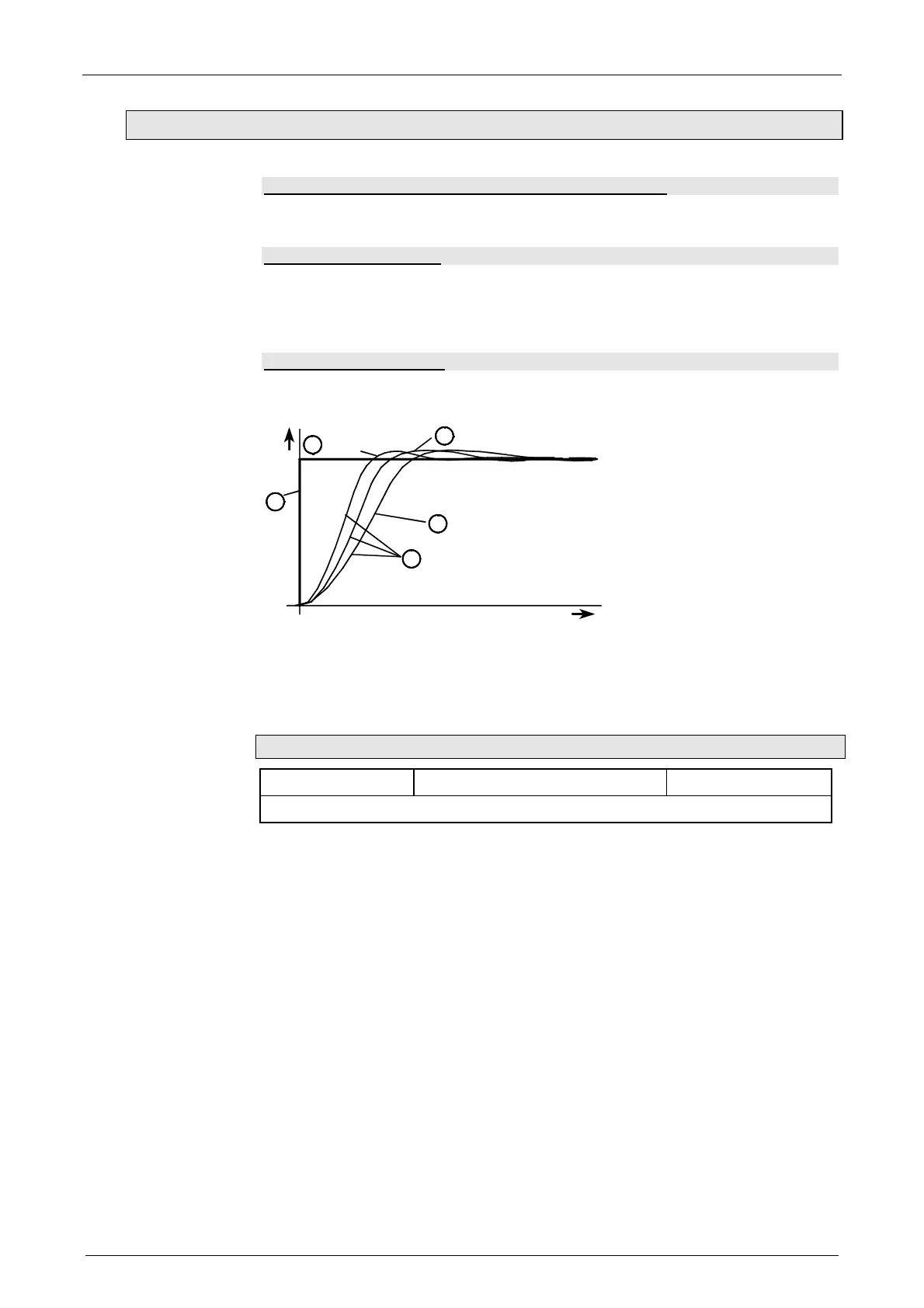

4.4.1.1 Stiffness of the speed controller
The stiffness is proportional to the control loop speed.
Nominal value: 100%
On increasing stiffness:
Control action becomes faster. The control loop oscillates above a critical threshold
value. Set the stiffness with an adequate safety margin with respect to the
oscillation threshold value.
On decreasing stiffness:
Control action becomes slower. This increases the tracking error. Current limiting
will be reached later.
>100%
=100%
<100%
t
3
3
3
1
2
1: target value
2: actual value
3: stiffness
2100.2: Stiffness of the speed controller
Unit: % Range: 10 ... 100 000 Standard value: 100%
The stiffness is proportional to the control loop speed.

Parker Compax3 S150 V4 Specifications

General

Output Current	150 A
Control Type	Digital
Series	Compax3
Model	S150 V4
Enclosure Rating	IP20
Communication Interfaces	CANopen, RS-232, RS-485
Feedback Options	Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Relative Humidity	5 to 95% non-condensing
Operating Temperature	0 to +45 °C (32 to 113 °F)
